What Is 1.6/5.6 RF Connector

Introduction

In the world of telecommunications, connectors play a pivotal role in establishing seamless and efficient communication links. Among these connectors, the 1.6/5.6 series, often referred to as DIN 1.6/5.6 connectors, have gained significant attention due to their impressive characteristics and capabilities. This article delves into the details of these connectors, from their impedance and coupling mechanisms to their historical evolution and diverse applications. The 1.6/5.6 connectors have emerged as indispensable components, enabling high-density connections and reliable signal transmission in specialized applications.

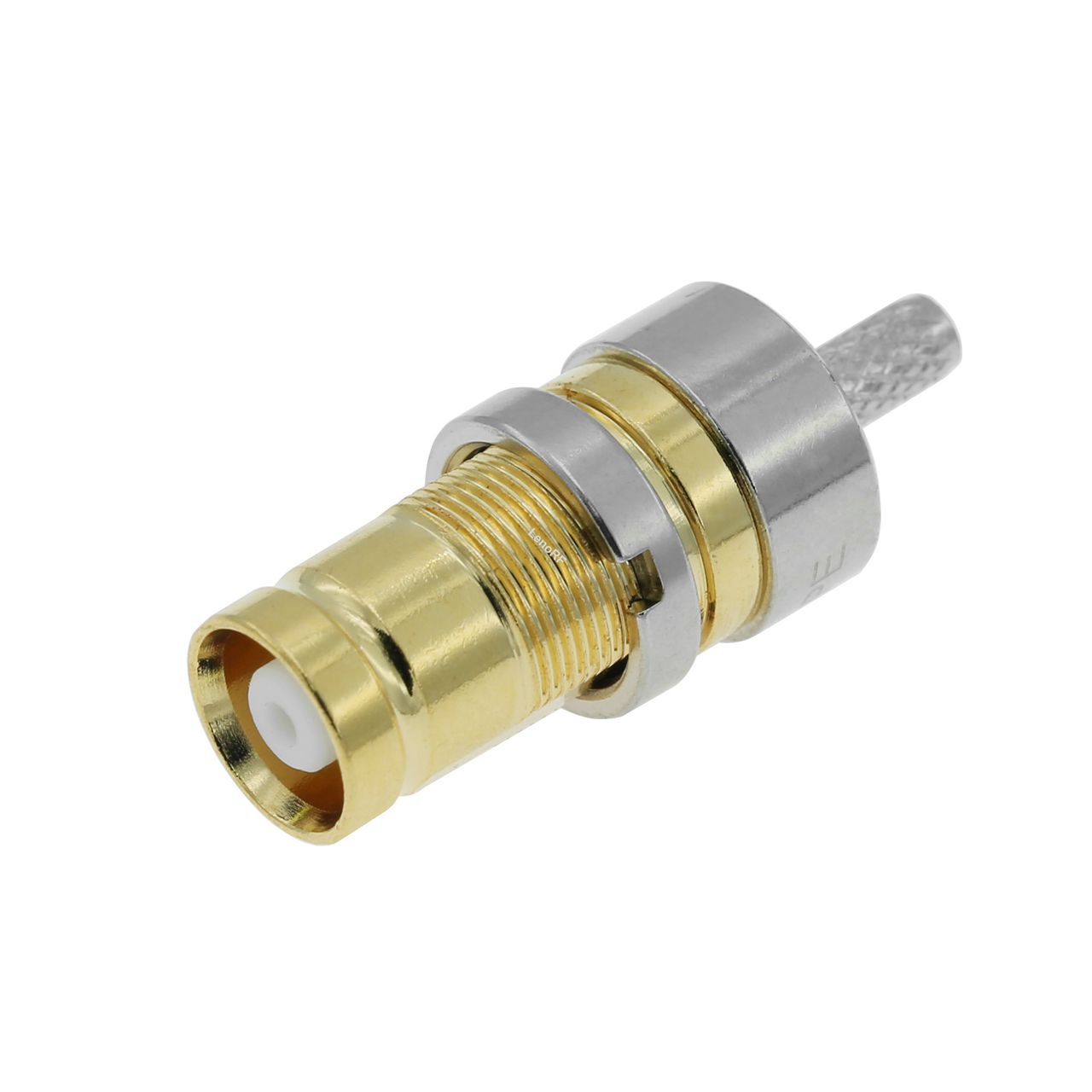

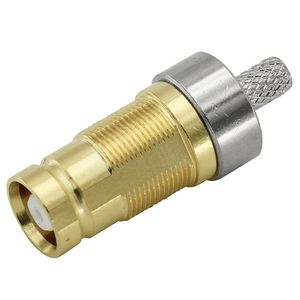

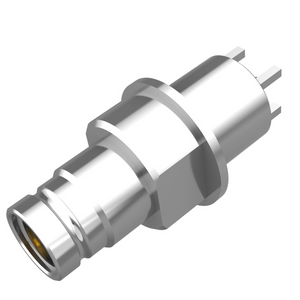

1.6/5.6 Jack Connector

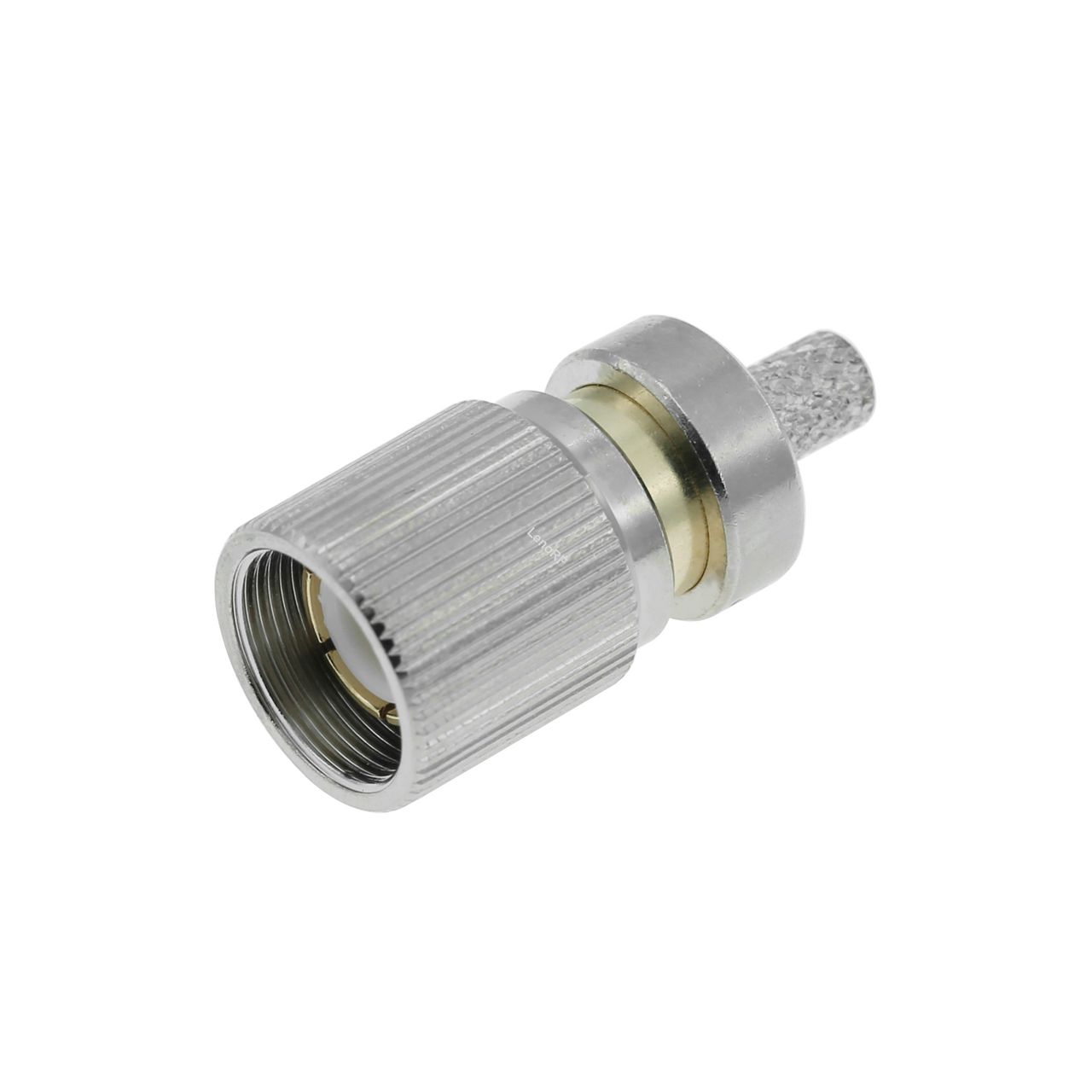

1.6/5.6 Plug Connector

Impedance and Specifications

The 1.6/5.6 RF connectors belong to the 75 Ω impedance category, offering a maximum operating frequency of 1.00 GHz. This impedance level ensures optimal signal transmission with minimal reflections, making them suitable for applications that demand high-quality and low-loss connections. The connectors adhere to several interface standards, including CECC 22240, DIN 47295, and IEC 60169-13, ensuring compatibility and interoperability across various systems.

Coupling Mechanisms

One of the distinguishing features of the 1.6/5.6 connectors lies in their diverse coupling mechanisms, catering to different preferences and requirements. These mechanisms enhance ease of use and reliability while accommodating various installation scenarios:

1. Type A - Screw-on Mechanism with Coupling Nut: This mechanism employs a coupling nut for secure attachment, providing stability and vibration resistance in demanding environments.

2. Type C - Slide-on Coupling with Centering Sleeve: The slide-on mechanism, combined with a centering sleeve, facilitates precise alignment during connection, ensuring consistent signal integrity.

3. Type E - Snap-on Coupling with Retention Clip: The snap-on coupling mechanism, accompanied by a retention clip, simplifies the connection process, making it efficient and hassle-free.

4. Type F - Quick Lock: The quick lock mechanism stands out for its rapid and secure attachment, ideal for applications where time is of the essence.

Historical Context

The inception of the 1.6/5.6 connector series traces back to the late 1970s when the European telecommunications landscape was undergoing rapid evolution. The introduction of these connectors was a response to the growing demand for high-density applications that necessitated connectors with enhanced capabilities. The outdated connectors like BNC were proving to be inadequate for these modern demands. Therefore, the DIN 47295 and IEC 60169-13 standards paved the way for the 1.6/5.6 connectors to address these emerging challenges.

Advantages and Applications

The 1.6/5.6 connectors offer a range of advantages that have contributed to their prominence in the field:

1. Mechanical and Electrical Stability: The connectors are lauded for their exceptional mechanical and electrical stability, which ensures consistent performance even in demanding environments with vibrations and fluctuations.

2. High-Density Design: With a miniature European design, the 1.6/5.6 connectors enable dense packing, making them particularly well-suited for applications where space constraints are a critical factor. This feature is vital for setups with limited available space.

3. Optimal Frequency Range: The connectors are optimized for applications with a maximum operating frequency of 1.00 GHz. While this range restricts their usage to lower frequency 75 Ω radio transmissions, they excel in applications like CATV telecom and CCTV distribution.

However, it's worth noting that the prevalence of the 1.6/5.6 series has diminished due to the emergence of more compact alternatives, such as the 1.0/2.3 connector variant, which offers a 40% reduction in size while maintaining the 75 Ω impedance. This shift in preference underscores the industry's constant pursuit of miniaturization and efficiency.

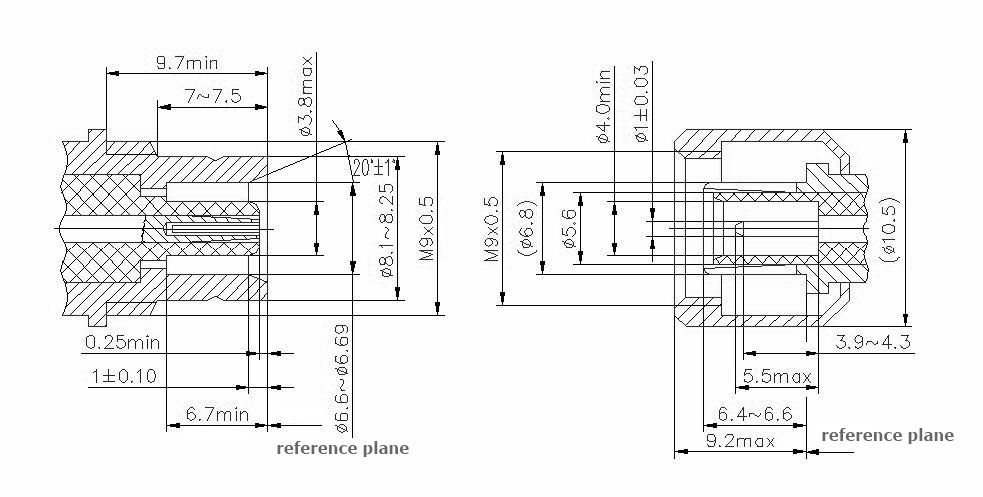

The Interface of 1.6/5.6 Connector

Conclusion

In conclusion, the 1.6/5.6 RF connectors, with their remarkable impedance characteristics, versatile coupling mechanisms, and historical significance, have left an indelible mark on the telecommunications landscape. These connectors, though slightly overshadowed by newer and smaller variants, continue to be essential components in applications that demand reliable signal transmission within space-constrained environments. The 1.6/5.6 connectors exemplify the evolution of connector technology to meet the changing demands of the ever-progressing telecommunications industry.
