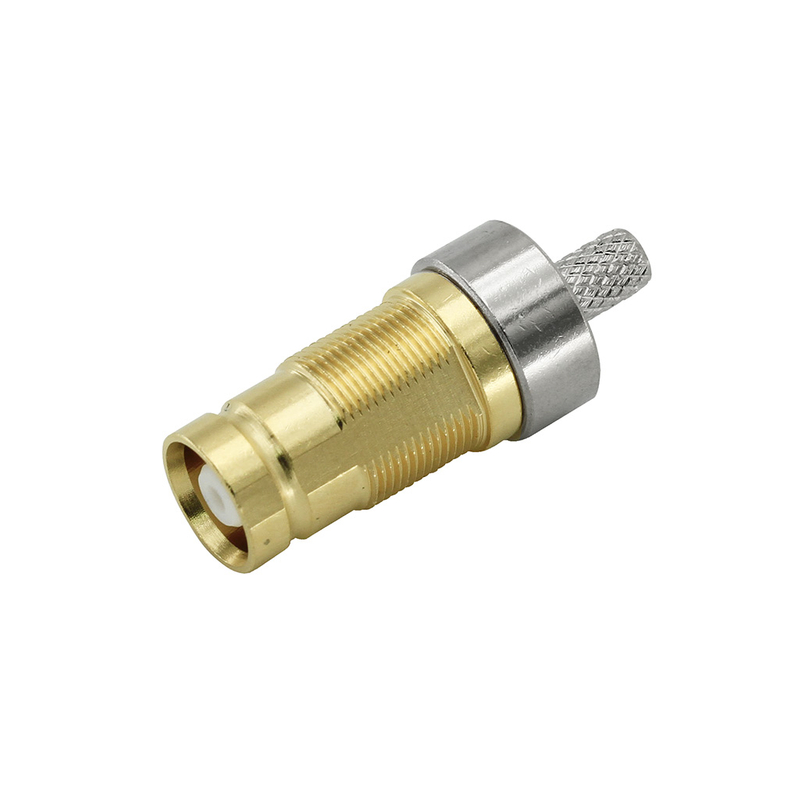

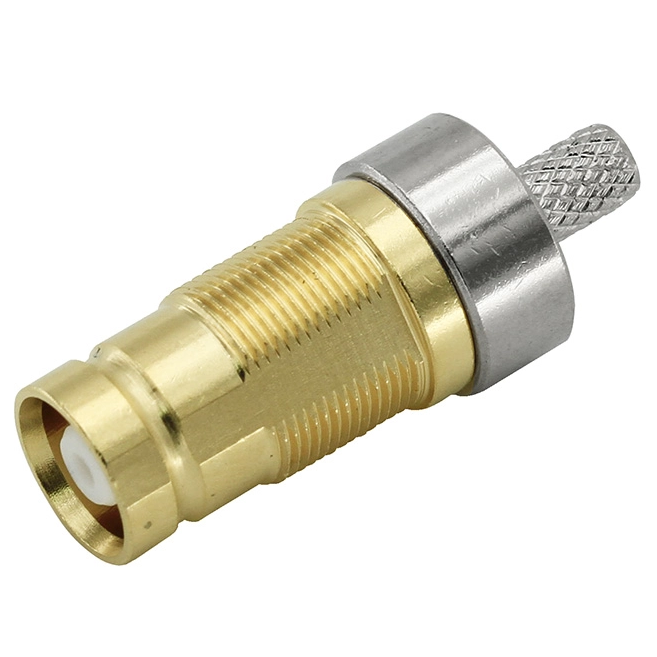

1656.211STR-7830
Female
Straight
Crimping
Crimping
Flex3.9
Availability: | |
---|---|
Quantity: | |
The 1.6/5.6 connector series is a compact European design optimized for high-density installations, making it well-suited for applications where space is limited,such as radar systems, avionics, and navigation equipment and electronic warfare, military radios, and secure communication links. Designed to operate at 75 ohms up to 1 GHz, this series is available in two coupling styles: threaded for secure, reliable mating, and push-pull for fast, convenient connections.
The 1.6/5.6 series meets multiple international standards, including DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and CECC 22230.
Offered with either threaded or push-pull coupling options
Crimp-crimp termination enables fast and simple assembly
Complies with IEC 169-13, DIN 47295, and NFC 93-570 international standards, optimized for SMT applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
radar systems, avionics, and navigation equipment
electronic warfare, military radios, and secure communication links
towers, repeaters, routers, and access points for reliable RF signal transfer
Body Plating | Gold/Nickel |
Body Material | Brass |
Cable Type | FLEX 3.9 |
Contact Plating | Gold |
Contact Material | Phosphor bronze |
Contact Termination | Crimp |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 1 |
Gender | Female |
Impedance (Ohms) | 75 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Miniature |
Temperature Range | -65 to 165 ° C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and the CECC 22230 standards |
