Overview

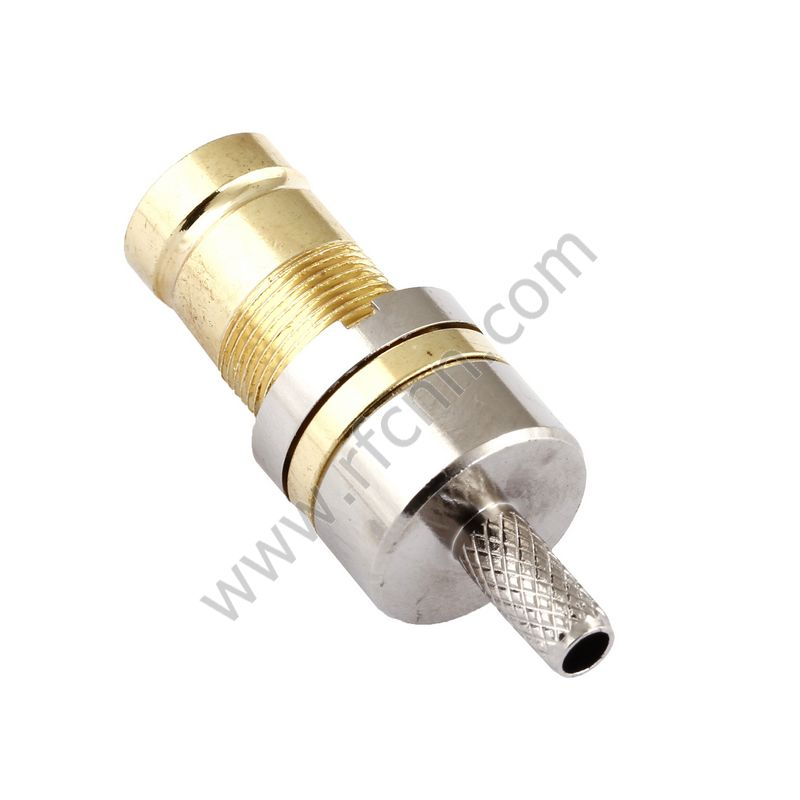

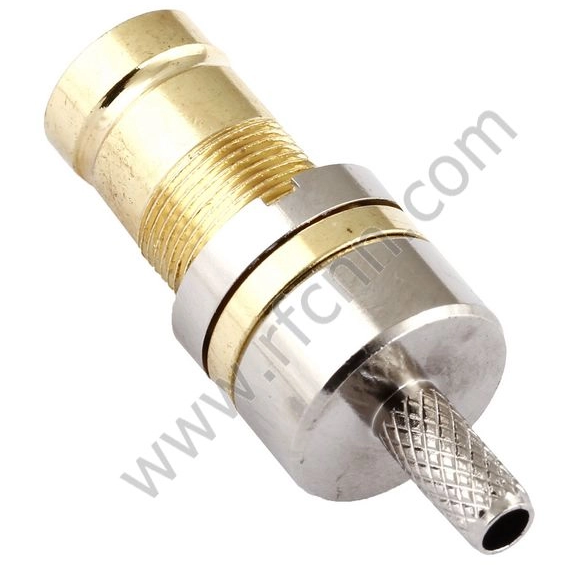

The 1.6/5.6 connector series is a compact European design optimized for high-density installations, making it well-suited for applications where space is limited,such as in-vehicle infotainment and connectivity systems and railway communications and signaling systems. Designed to operate at 75 ohms up to 1 GHz, this series is available in two coupling styles: threaded for secure, reliable mating, and push-pull for fast, convenient connections.
The 1.6/5.6 series meets multiple international standards, including DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and CECC 22230.
Features
Offered with either threaded or push-pull coupling options
Crimp-crimp termination enables fast and simple assembly
Complies with IEC 169-13, DIN 47295, and NFC 93-570 international standards, optimized for SMT applications
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
in-vehicle infotainment and connectivity systems
railway communications and signaling systems
vehicle radar (24 GHz, 77 GHz for ADAS)
Specification
Body Plating | Gold/Nickel |
Body Material | Brass |
Cable Type | BT3002 |
Contact Plating | Gold |
Contact Material | Phosphor bronze |
Contact Termination | Crimp |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 1 |
Gender | Female |
Impedance (Ohms) | 75 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Miniature |
Temperature Range | -65 to 165 ° C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and the CECC 22230 standards |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
What are typical applications of RF connectors?
Telecom (5G, LTE, satellite) Aerospace & defense (radar, avionics, secure comms) Test & measurement (network/spectrum analyzers) Broadcast & video distribution Automotive radar and IoT devices Medical imaging & equipment
What is the difference between RF connectors and coaxial connectors?
They are often used interchangeably. However: Coaxial connector refers to the physical design (shielded cylindrical form). RF connector emphasizes its use in radio-frequency applications. Most RF connectors are coaxial.
What is “reverse polarity” (RP-SMA, RP-TNC)?
Reverse polarity means the gender of the center pin is swapped while keeping the outer body style unchanged. It was introduced to comply with regulatory requirements in Wi-Fi devices and to prevent connection with standard SMA/TNC.
