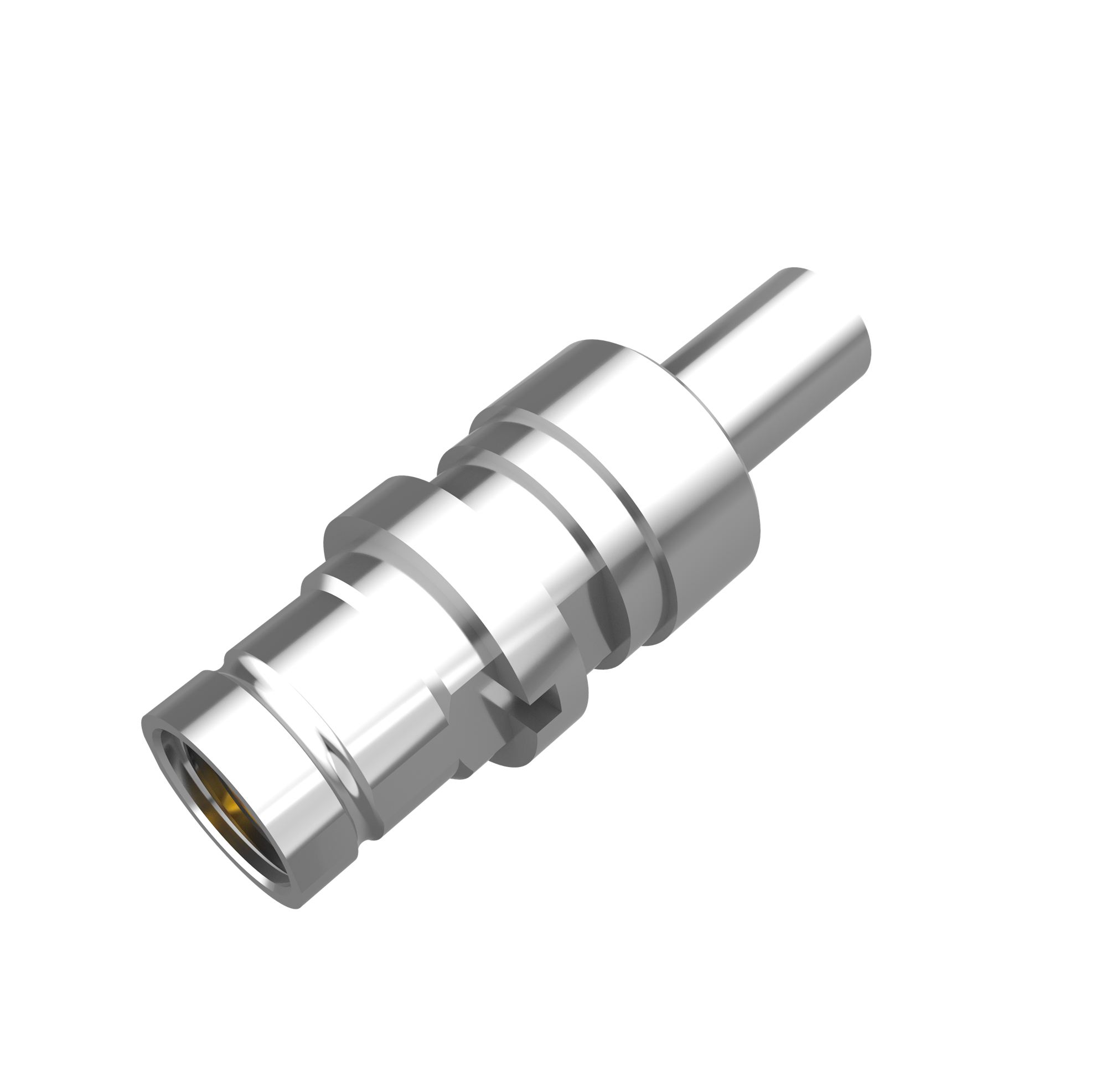

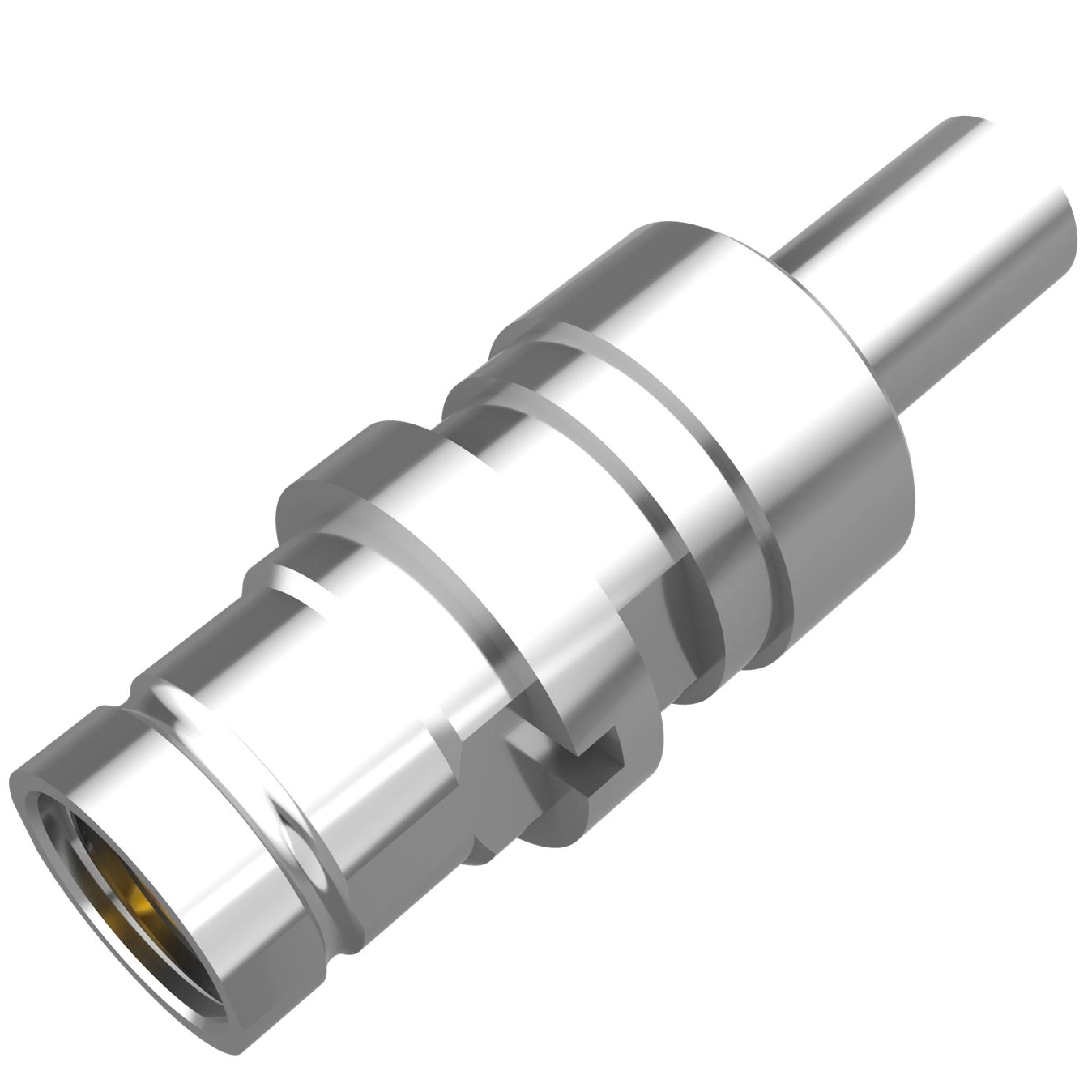

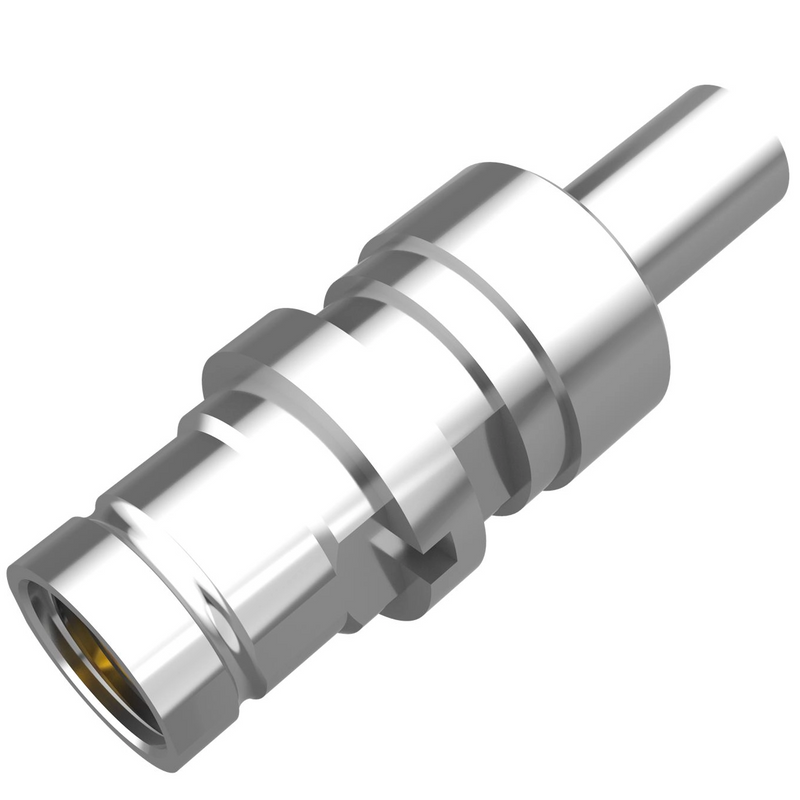

1.6/5.6 Connector Jack Straight Crimp For ST779 Coaxial Cable

The 1.6-5.6 series is a miniature European design that allows for dense connector packing, making it ideal for tight-fitting applications. In the 1.6-5.6 product range, there are threaded and push-pull couplings available. Assembly is quick and easy due to the crimp termination. The LenoRF 1.6-5.6 series uses a 75 ohm impedance up to 1 GHz. This series complies with all of the following standards: DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and CECC 22230.
  • 22-873

  • 81-7061-104-03

  • Female

  • Straight

  • Crimping

  • Crimping

  • ST779

  • 81-7061-104-03.pdf

  • 81-7061-104-03.stp

Availability:
Quantity:
Body   PlatingNickel
Body MaterialBrass
Contact PlatingGold
Contact MaterialBeryllium   copper
HS Code8536909000
Impedance (Ohms)75
Insulator MaterialPTFE
OrientationStraight
Size CategoryMiniature
Temperature Range-65   -165 °C
Termination StyleCable   Crimping
Mating Cycles500   Min
