1.6/5.6 Female Crimp Right Angle For Kings 75-3.0-RF Connector
You are here: Home » Products » RF Connector » 1.6/5.6 RF Connector » 1.6/5.6 Female Crimp Right Angle For Kings 75-3.0-RF Connector
Share to:

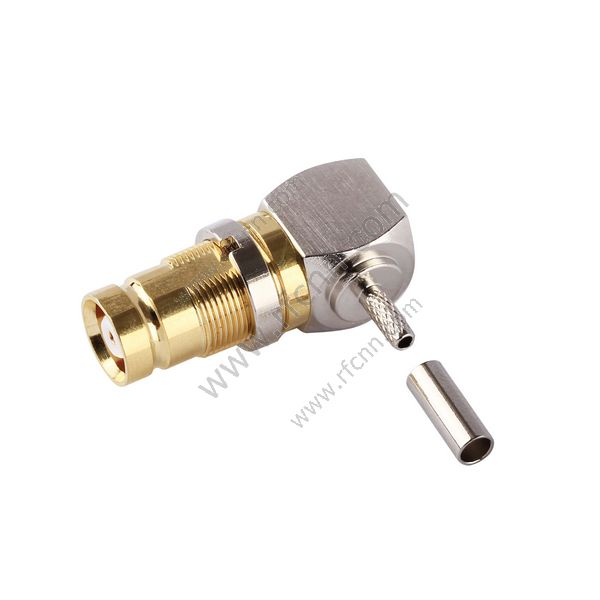

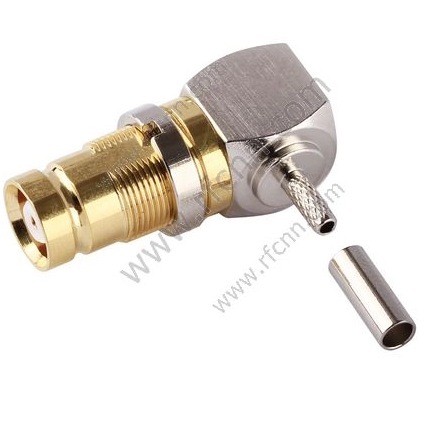

1.6/5.6 Female Crimp Right Angle For Kings 75-3.0-RF Connector

  • 1656.212RA-7530
Quantity:



Specification of product:



Part No 1656.212RA-7530
Connector Series 1.6/5.6
Connector Type Female
Contact Termination Solder
Shield Termination Crimp
Impedance 75 Ohm
Mounting Type Free Hanging
Cable Group Kings 75-30
Fastening Type Thread
Frequency - Max DC-3GHz
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C

Application of product

Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.

Environmental Compliance

All product is RoHS and REACH complaint.
