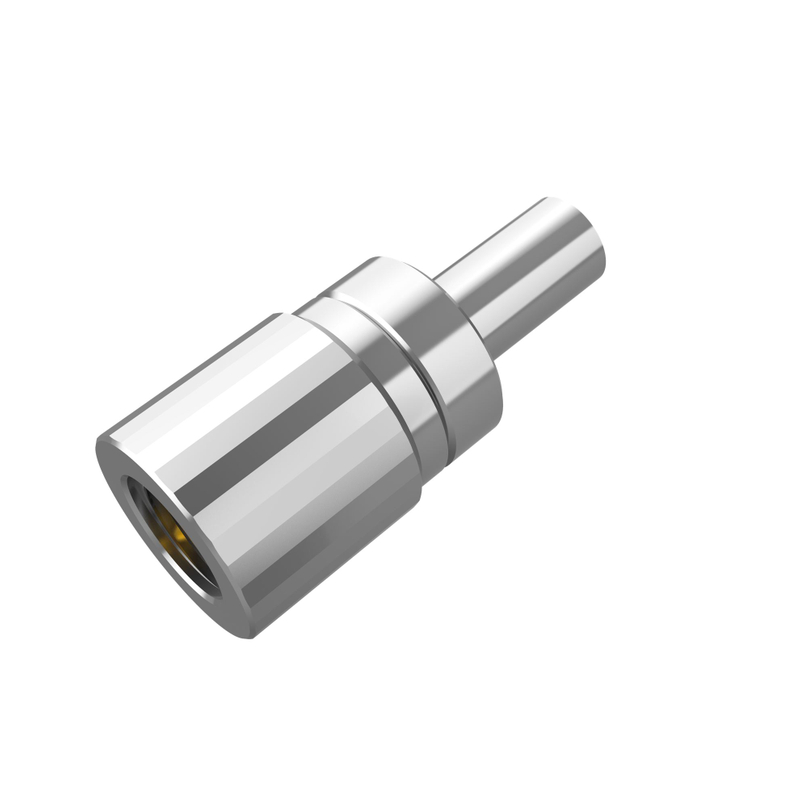

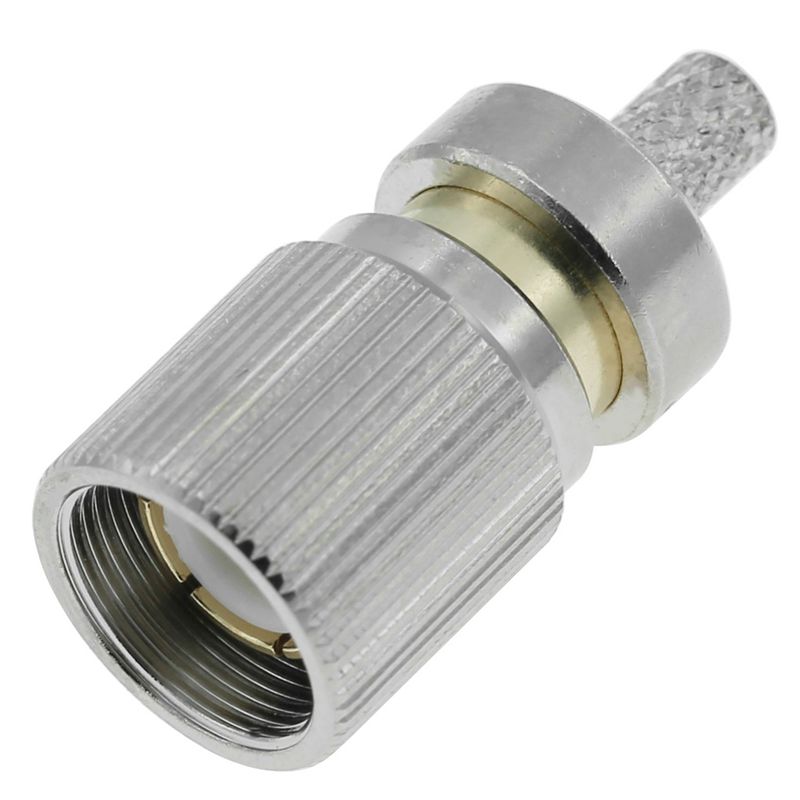

1.6/5.6 Connector Plug Straight Crimp For Flex3 Coaxial Cable

The 1.6-5.6 series is a miniature European design that allows for dense connector packing, making it ideal for tight-fitting applications. In the 1.6-5.6 product range, there are threaded and push-pull couplings available. Assembly is quick and easy due to the crimp termination. The LenoRF 1.6-5.6 series uses a 75 ohm impedance up to 1 GHz. This series complies with all of the following standards: DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and CECC 22230.
  • 22-810
  • 81-7060-104-02
  • Male
  • Straight
  • Crimping
  • Crimping
  • Flex3
  • 81-7161-104-02.pdf
  • 81-7161-104-02.stp

Body   PlatingNickel
Body MaterialBrass
Contact PlatingGold
Contact MaterialBeryllium   copper
HS Code8536909000
Impedance (Ohms)75
Insulator MaterialPTFE
Size CategoryMiniature
Temperature Range-65   -165 °C
Termination StyleCable   Crimping
Mating Cycles

500   Mi



1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days

2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order

3. The quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


Our product fully compliance with ROHS&REACH.

5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.




Thread or Push-pull coupling Mechanism

Crimping or soldering contact

75 impedance up to 1GHz

Mininature European design for dense solution
