Overview
The 1.6/5.6 connector series is a compact European design optimized for high-density installations, making it well-suited for applications where space is limited,such as radar systems, avionics, and navigation equipment and electronic warfare, military radios, and secure communication links. Designed to operate at 75 ohms up to 1 GHz, this series is available in two coupling styles: threaded for secure, reliable mating, and push-pull for fast, convenient connections.
The 1.6/5.6 series meets multiple international standards, including DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and CECC 22230.
Features
Offered with either threaded or push-pull coupling options
Crimp-crimp termination enables fast and simple assembly
Complies with IEC 169-13, DIN 47295, and NFC 93-570 international standards, optimized for SMT applications
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
radar systems, avionics, and navigation equipment
electronic warfare, military radios, and secure communication links
towers, repeaters, routers, and access points for reliable RF signal transfer
Specification
Body Plating | Nickel |
Body Material | Brass |
Cable Type | Flex2 |
Contact Plating | Gold |
Contact Material | Brass |
Contact Termination | Clamp |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 1 |
Gender | Male |
Impedance (Ohms) | 75 |
Insulator Material | PTFE |

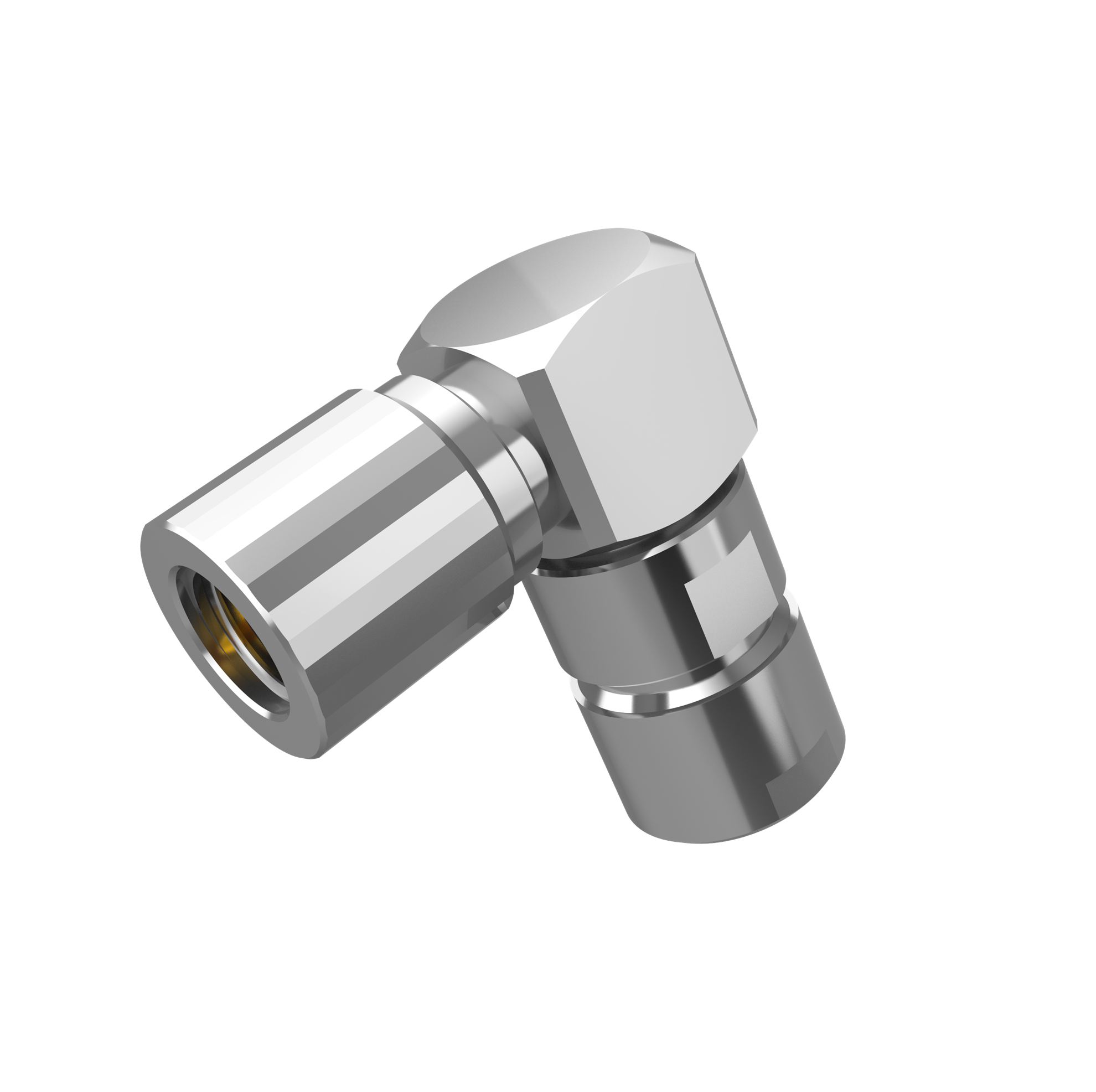

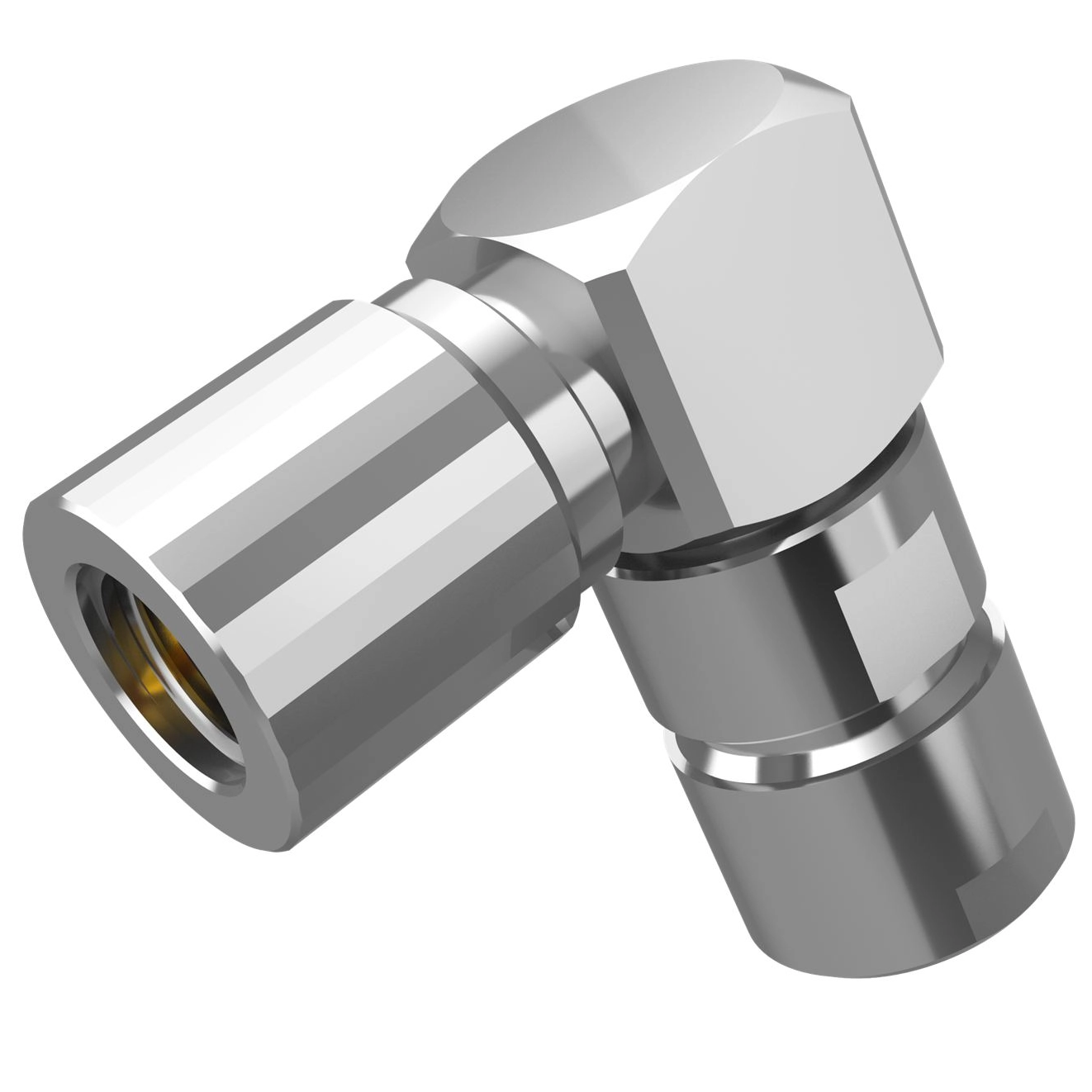

Orientation | Right Angle |
Size Category | Miniature |
Temperature Range | -65 to 165 ° C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and the CECC 22230 standards |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
Are RF connectors interchangeable between brands?
Yes, if they follow the same standard (e.g., SMA-to-SMA). However, tolerances, plating, and dielectric quality vary — mixing low-quality and precision connectors can damage equipment.
How do environmental conditions affect RF connectors?
Temperature extremes can cause expansion/shrinkage and change performance. Humidity and salt spray may cause corrosion (use stainless steel or weatherproof designs). Vibration may loosen bayonet types — use threaded connectors in harsh environments.
Can RF connectors be adapted from one type to another?
Yes, RF adapters (e.g., SMA-to-N, BNC-to-TNC) exist. But:Each adapter adds insertion loss and possible VSWR increase.Avoid stacking multiple adapters in sensitive applications.
