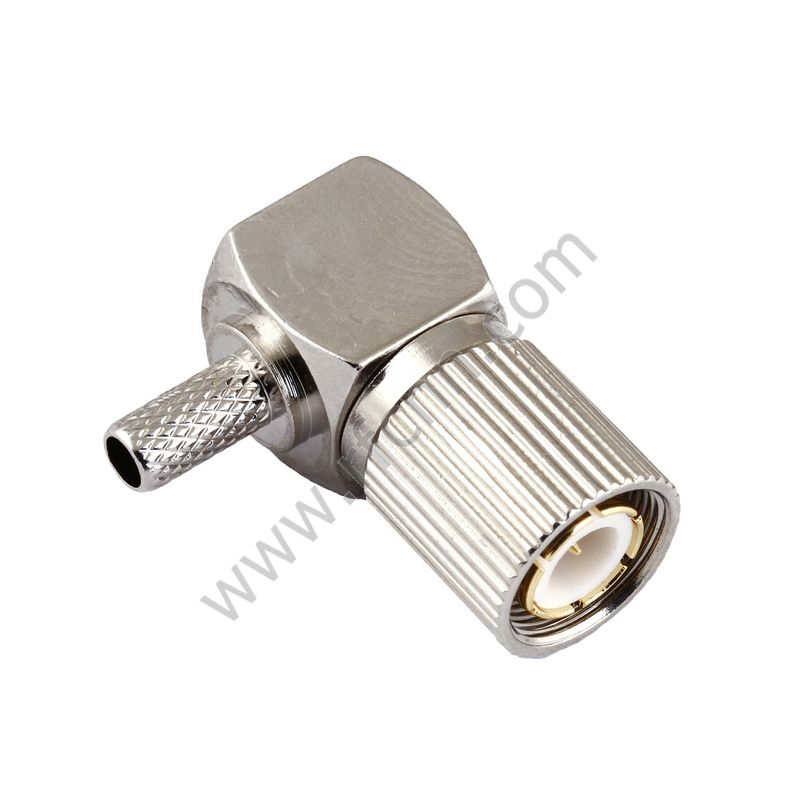

1.6/5.6 Connectors Male Crimp Right Angle For BT3002 Cable

The 1.6-5.6 series is a small European design that allows for dense connector packing, making it appropriate for applications with limited space. Threaded and push-pull couplings are available in the 1.6-5.6 product family. Because of the crimp termination, assembly is quick and simple. Up to 1 GHz, the LenoRF 1.6-5.6 series operates at 75 ohms. DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and CECC 22230 are all standards that this series complies with.
  • 1656-121RA-3002

  • Male

  • Right angle

  • Crimping

  • Crimping

  • BT3002

Availability:
Quantity:
Body   PlatingNickel
Body MaterialBrass
Contact PlatingGold
Contact MaterialBeryllium   copper
HS Code8536909000
Impedance (Ohms)75
Insulator MaterialPTFE
OrientationStraight
Size CategoryMiniature
Temperature Range-65   -165 °C
Termination StyleCable   Crimping
Mating Cycles500   Min
