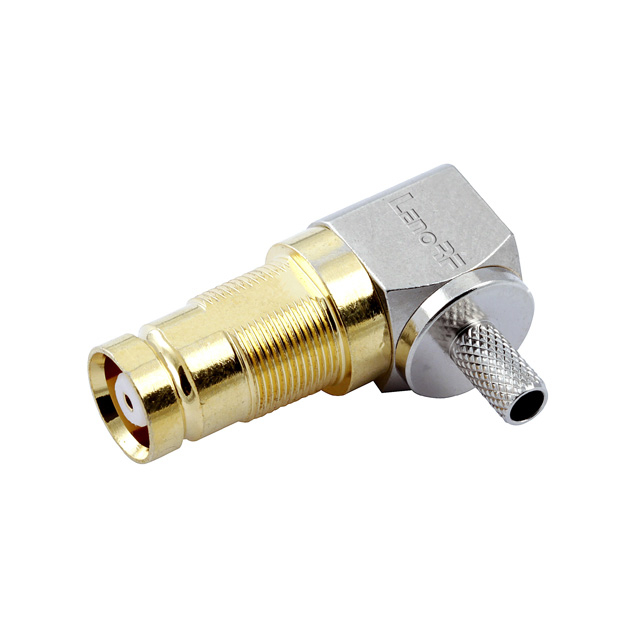

1.6/5.6 Female Coax Connectors For 1.13 Coax Cable Crimp Angled

The 1.6-5.6 series is a miniature European design that enables for dense connector packing, making it ideal for space-constrained applications. The 1.6-5.6 product line includes threaded and push-pull couplings. Assembly is quick and easy thanks to the crimp termination. The LenoRF 1.6-5.6 series runs at 75 ohm up to 1 GHz. This series complies with DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and CECC 22230.
  • 81-7060-104-01
  • Male
  • Straight
  • Crimping
  • Crimping
Availability:
Quantity:
Body   PlatingNickel
Body MaterialBrass
Contact PlatingGold
Contact MaterialBeryllium   copper
HS Code8536909000
Impedance (Ohms)75
Insulator MaterialPTFE
OrientationStraight
Size CategoryMiniature
Temperature Range-65   -165 °C
Termination StyleCable   Crimping
Mating Cycles500   Min
