Overview

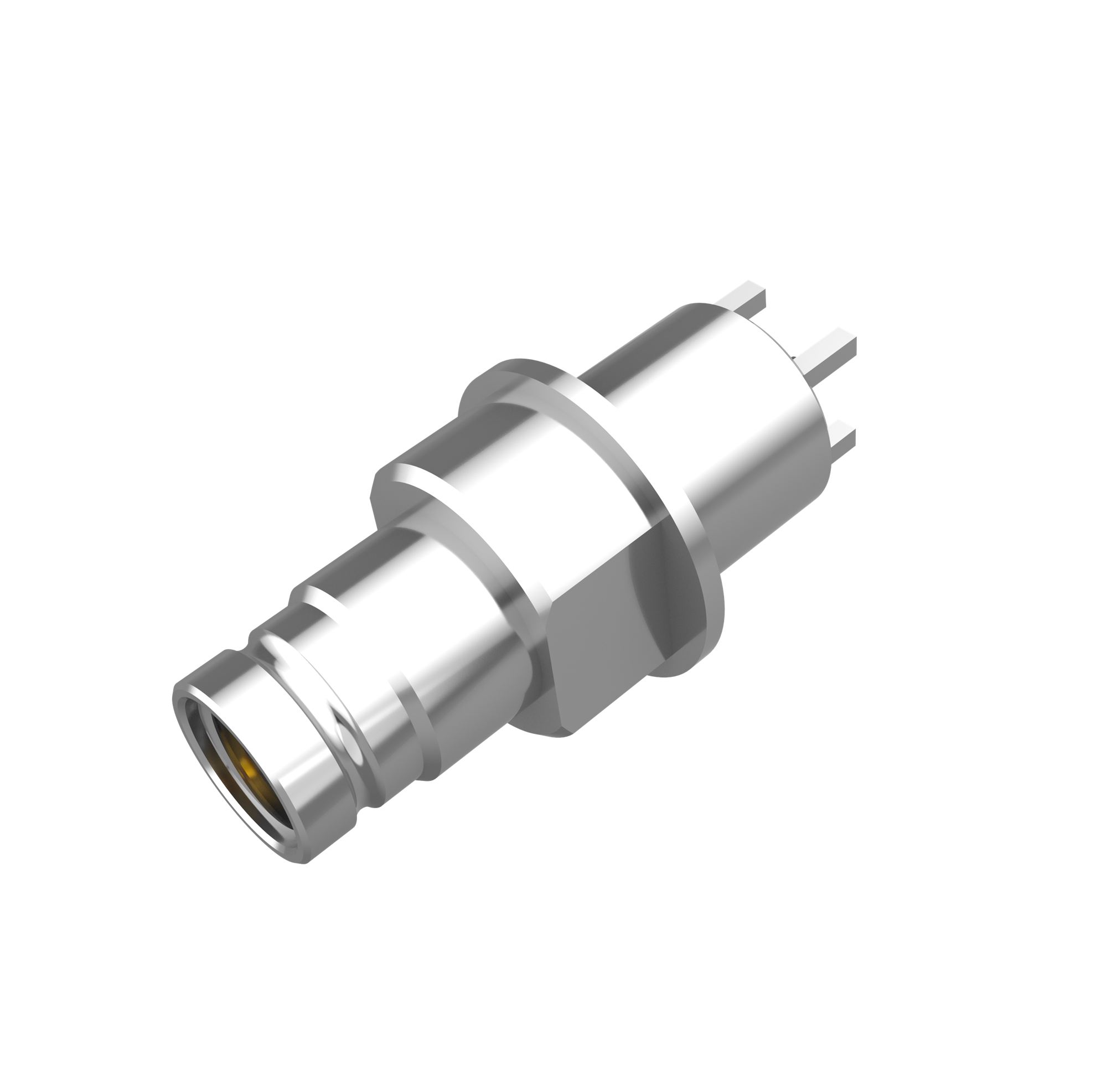

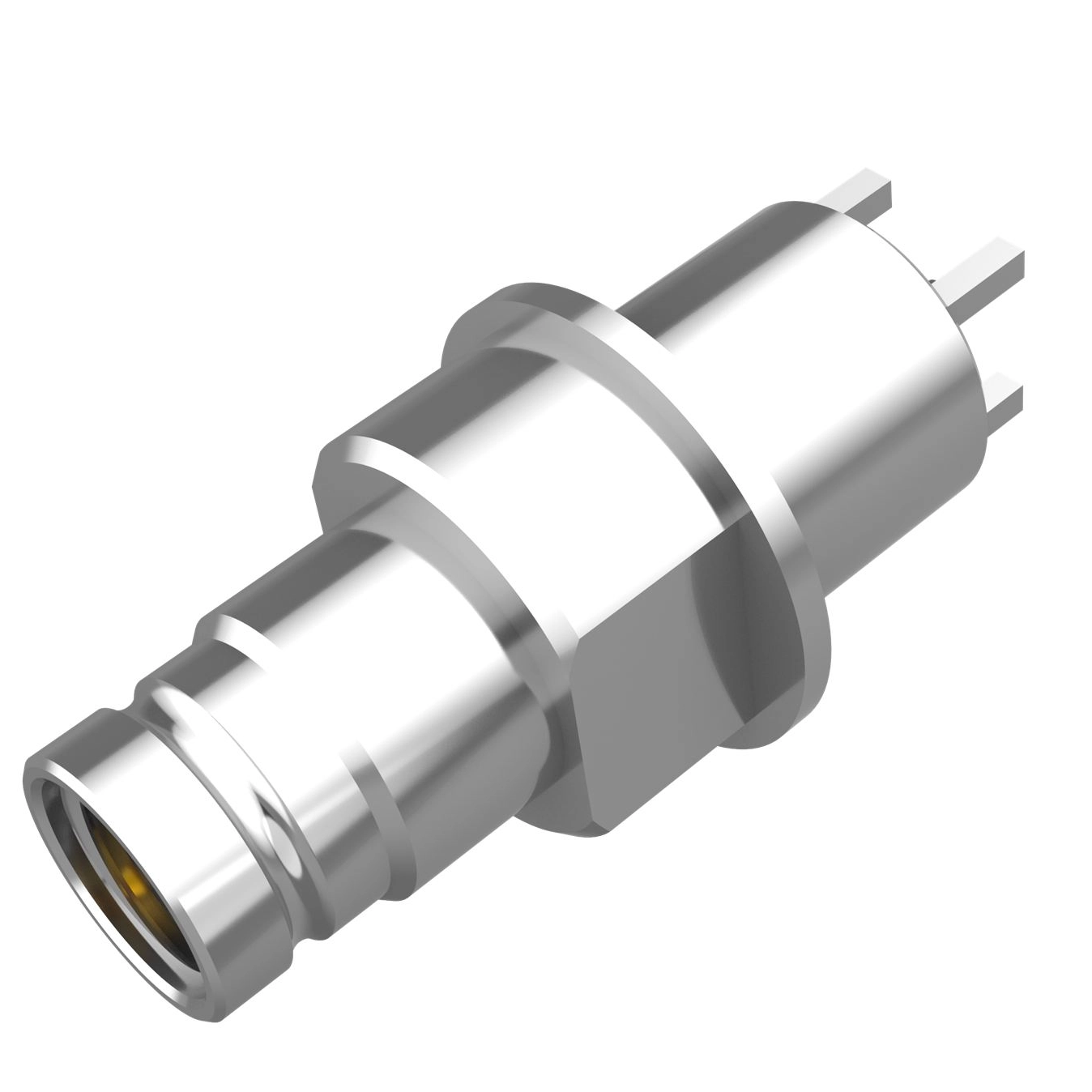

The 1.6/5.6 connector series is a compact European design optimized for high-density installations, making it well-suited for applications where space is limited,such as 5G, LTE, Wi-Fi, and satellite communication systems and towers, repeaters, routers, and access points for reliable RF signal transfer. Designed to operate at 75 ohms up to 1 GHz, this series is available in two coupling styles: threaded for secure, reliable mating, and push-pull for fast, convenient connections.
The 1.6/5.6 series meets multiple international standards, including DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and CECC 22230.
Features
Offered with either threaded or push-pull coupling options
Crimp-crimp termination enables fast and simple assembly
Complies with IEC 169-13, DIN 47295, and NFC 93-570 international standards, optimized for SMT applications
Applications
Telecom equipment
Broadcast
Instrumentation
Test and measurement equipment
5G, LTE, Wi-Fi, and satellite communication systems
towers, repeaters, routers, and access points for reliable RF signal transfer
base stations, antennas, and feeder cables
Specification
Body Plating | Gold |
Body Material | Brass |
Cable Type | N/A |
Contact Plating | Gold |
Contact Material | Phosphor bronze |
Contact Termination | Crimp |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 1 |
Gender | Femael |
Impedance (Ohms) | 75 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Miniature |
Temperature Range | -65 to 165 ° C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and the CECC 22230 standards |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What materials are RF connectors made of?
Body: Brass, stainless steel, or beryllium copper (with nickel, gold, or silver plating). Insulator: PTFE, PE, or advanced low-loss dielectrics. Contacts: Gold-plated brass or beryllium copper for low resistance and durability.
Are RF connectors weatherproof?
Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
