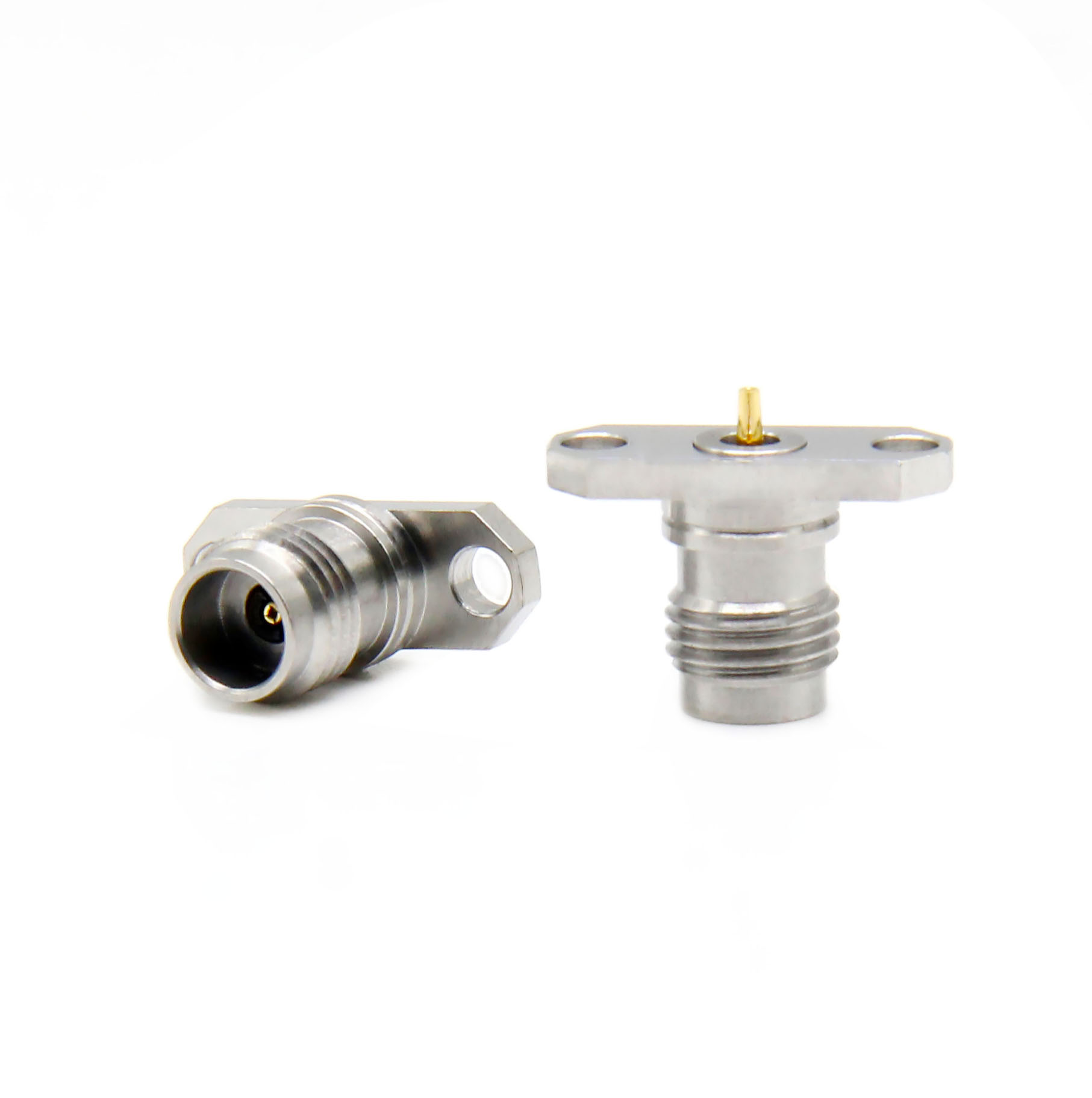

Overview

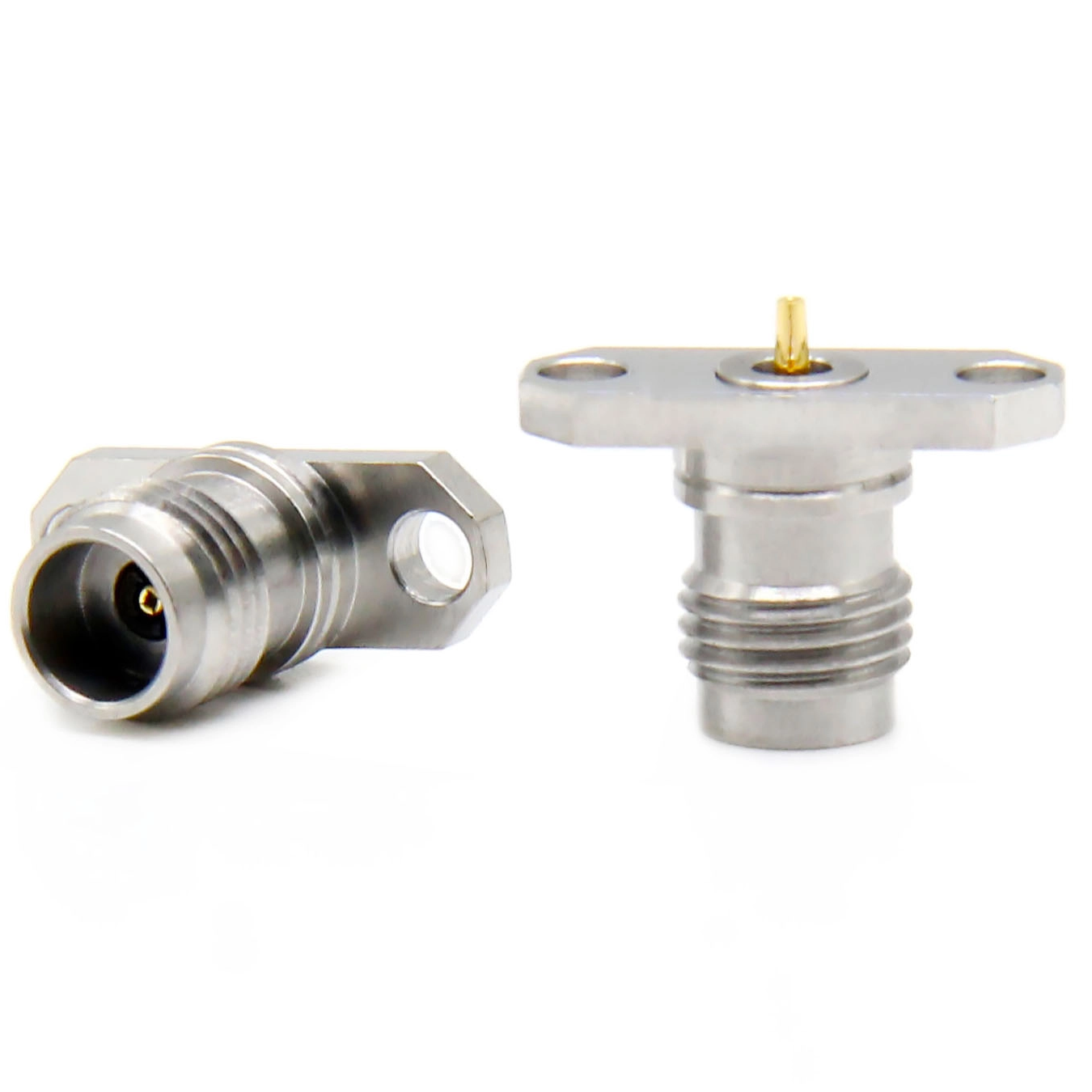

The 2.4 mm connector is a precision RF coaxial connector designed for high-frequency applications up to 50 GHz. It features a threaded coupling mechanism that provides secure, vibration-resistant connections while maintaining excellent electrical performance. With a 50 ohm impedance, the 2.4 mm connector delivers low reflection and minimal signal loss, making it ideal for demanding test, measurement, towers, repeaters, routers, and access points for reliable RF signal transfer,5G, LTE, Wi-Fi, and satellite communication systems and microwave applications. Its compact design allows for dense system layouts, and it is compatible with a wide range of coaxial cables. Available in both male and female versions, it ensures reliable, repeatable connections in high-performance RF systems.
Features
Precision 50 ohm RF coaxial interface
Broadband performance up to 50 GHz
Threaded coupling for secure, vibration-resistant connections
Low reflection and minimal signal loss
Compact design suitable for dense system layouts
Compatible with a variety of coaxial cables
Available in both male and female configurations
Durable construction for repeated mating cycles
Ideal for test, measurement, and microwave applications
Applications
Antennas
PC/LAN
Telecommunications
Instrumentation
5G, LTE, Wi-Fi, and satellite communication systems
towers, repeaters, routers, and access points for reliable RF signal transfer
base stations, antennas, and feeder cables
Specification
Cable Type | N/A PCB |
| Body Plating | Passivated |
| Body Material | Stainless Steel |
| Contact Plating | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Cable Termination | Solder |
| Coupling Mechanism | Thread |
HS Code | 8636909000 |
Frequency (Max GHz) | 50 |
Gender | Female |
Impedance (Ohm) | 50 |
Size Category | Miniature |
Orientation | Straight |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | IEC 61169-40 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
Are RF connectors weatherproof?
Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
What are typical applications of RF connectors?
Telecom (5G, LTE, satellite) Aerospace & defense (radar, avionics, secure comms) Test & measurement (network/spectrum analyzers) Broadcast & video distribution Automotive radar and IoT devices Medical imaging & equipment
