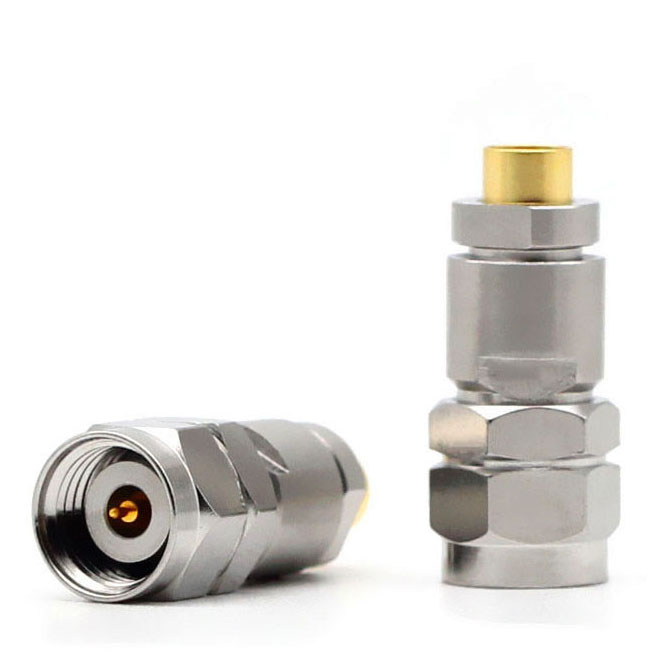

Features
Frequency range: DC – 50 GHz (mode-free operation)
Impedance: 50 Ohm precision coaxial interface
Threaded coupling ensures secure and repeatable matin
Stainless-steel body, gold-plated BeCu contacts for long service life
Low VSWR (< 1.15) and excellent return loss across band
Air dielectric for minimal insertion loss
Available in straight, right-angle, flange-mount, and PCB-mount versions
Ideal for test equipment, radar, 5G/mmWave, and satellite systems
Applications
Electronic warfare, military radios, and secure communication links
Wireless Communication Systems
Radar & Military Equipment
Radar systems, avionics, and navigation equipment
Telecommunications & 5G
Test & Measurement Equipment
GPS & Navigation Systems
Missile guidance, drones, and satellite payload systems
Specification
Body Plating | Passivated |
Body Material | Stainless Steel |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 50 |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Size Category | Miniature |
Temperature Range | -65 to 165 °C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material—beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
