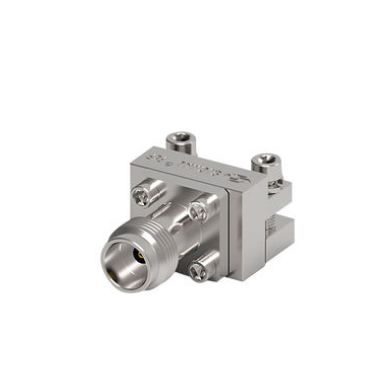

1.85mm Connector Jack Solder Straight For PCB Edge Mount

The 1.85mm connector was created to operate at 65 GHz without mode switching. To limit bead interaction in a mated pair, the interface is primarily air-dielectric with a support bead placed back in the connector body. The body has been engineered to guarantee that the outside conductors engage before the center conductors make contact, just as the 2.92mm and 2.4mm connectors. Only the 2.4mm interface is compatible with the 1.85mm interface, which utilizes an M7 thread. Adapters for 1.85mm connections to SMA and 2.92mm connectors are available from us. RoHS and REACH-compliant 1.85mm connector
  • 185-2001

  • Female

  • Straight

  • PCB End launch

  • Soldering

  • N/A

Availability:
Quantity:
Body   PlatingGold
Body MaterialStainless Steel
Cable TypeN/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)65
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Panel Mounting Feature-
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleSolder
Thread DirectionStandard
Mating Cycles500   Min
