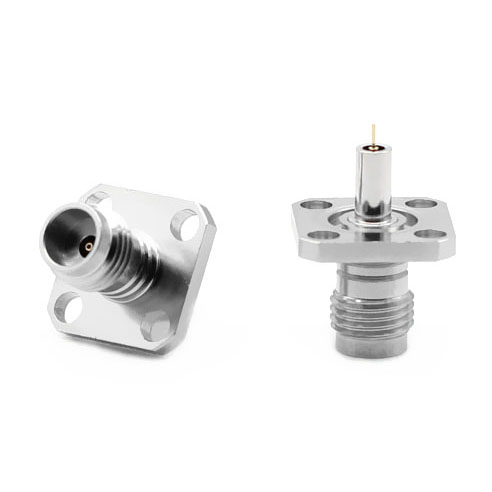

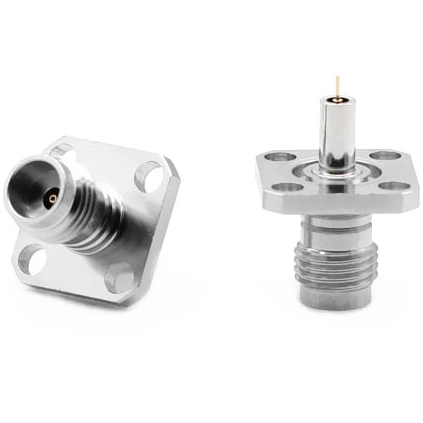

1.85mm Connector Jack Flange Straight For Microstrip

The 1.85mm connector was designed to operate modelessly at 65 GHz. To limit bead interaction in a mated pair, the interface employs a mainly air-dielectric with a support bead placed back in the connector's body. The body, like the 2.92mm and 2.4mm connectors, is constructed such that the outside conductors engage before the central conductors do. Only the 2.4mm interface is compatible with the 1.85mm interface, which has an M7 thread. Adapters are available to link 1.85mm connections to SMA and 2.92mm connectors. The 1.85mm connector complies with RoHS and REACH regulations.
  • 185-5002

  • Female

  • Straight

  • 4 Hole Flange

  • Soldering

Body   PlatingGold
Body MaterialStainless Steel
Cable TypeN/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)65
Impedance (Ohms)50
Insulator MaterialPTFE
Panel Mounting Feature4 Hole Flange
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleSolder
Thread DirectionStandard
Mating Cycles500   Min

Our company, Zhejiang LenoRF Industry co. LTD, occupies an area of 30 hectares and is equipped with world class equipment to make millimeter wave connectors and phase stable cables. We specialize in coaxial connectors, cable assembly, and passive devices. Our current products are the latest millimeter wave connector and phase stable cable on the market.
