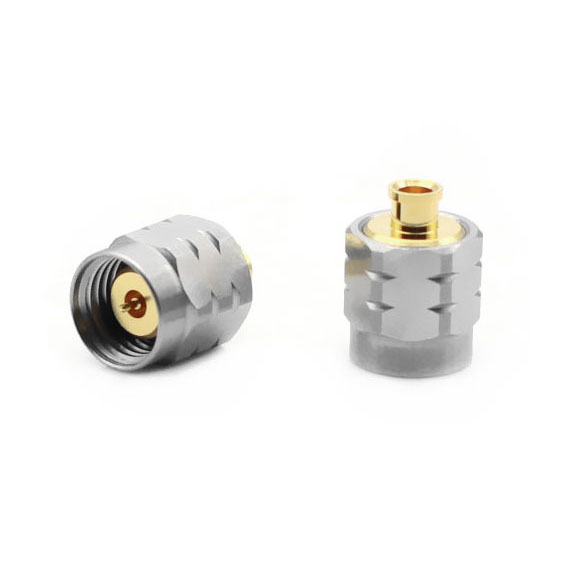

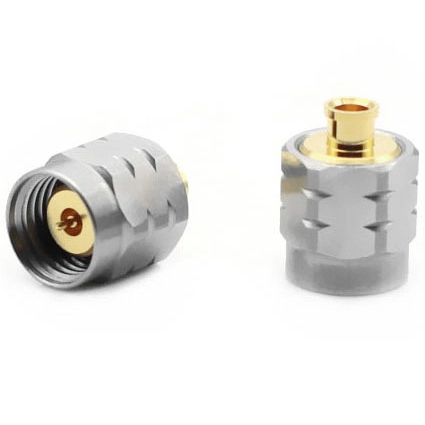

Specification
| Body Plating | Gold |
| Body Material | Stainless Steel |
| Cable Type | 0.047" |
| Contact Plating | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| HS Code | 8536909000 |
| Frequency (Max GHz) | 65 |
| Gender | Plug |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Orientation | Straight |
| Panel Mounting Feature | - |
| Size Category | Subminiature |
| Temperature Range | -65 -165 °C |
| Termination Style | Solder |
| Thread Direction | Standard |
| Mating Cycles | 500 Min |
Applications
Wireless Communication Systems
Radar & Military Equipment
Telecommunications & 5G
Test & Measurement Equipment
GPS & Navigation Systems
patient monitoring systems with wireless connectivity
RF ablation, telemetry, and diagnostic tools
MRI, CT, and ultrasound imaging devices
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material—beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
Are RF connectors weatherproof?
Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
