Application
Connecting antennas to RF equipment
Linking test equipment (like spectrum analyzers or signal generators) to DUTs (devices under test)
Integrating components in RF communication systems (e.g., Wi-Fi, LTE, GPS, IoT modules)
wireless sensor networks and IoT gateways
smart meters and remote monitoring devices
RF ablation, telemetry, and diagnostic tools
Connector 1 Type:
NEX10
Connector Feature:
Frequency Range:DC – 20 GHz
Impedance:50 OHMS
Power Handling:High
Coupling Mechanism:Threaded/Push-pull
Durability (mating cycles):500
Typical Applications:Small cells, 5G
Size Category:Medium
Connector 2 Type:
3.5 mm
Connector Feature:
Frequency Range:DC – 34 GHz
Impedance:50 OHMS
VSWR (typical):≤1.15:1
Power Handling:Medium
Coupling Mechanism:Threaded
Durability (mating cycles):500
Typical Applications:General RF test Size Category:Small
Specification

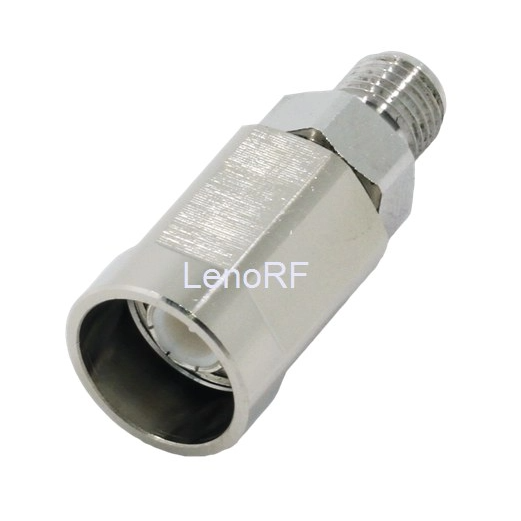

| Connector 1 type | NEX10 Connector |
| Connector 2 type | 3.5 mm Connector |
| Type Of Adapter | Between Series |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Coupling Mechanism | Threaded |
| HS Code | 8536909000 |
| Frequency (Max GHz) | 6 |
| Impedance (Ohms) | 50 |
| Orientation | Straight |
| Temperature Range | -65 ~165 ° C |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
What are typical applications of RF connectors?
Telecom (5G, LTE, satellite) Aerospace & defense (radar, avionics, secure comms) Test & measurement (network/spectrum analyzers) Broadcast & video distribution Automotive radar and IoT devices Medical imaging & equipment
What is the difference between RF connectors and coaxial connectors?
They are often used interchangeably. However: Coaxial connector refers to the physical design (shielded cylindrical form). RF connector emphasizes its use in radio-frequency applications. Most RF connectors are coaxial.
