831-1230
Female
Straight
Soldering
Soldering
N/A
Availability: | |
---|---|
Quantity: | |

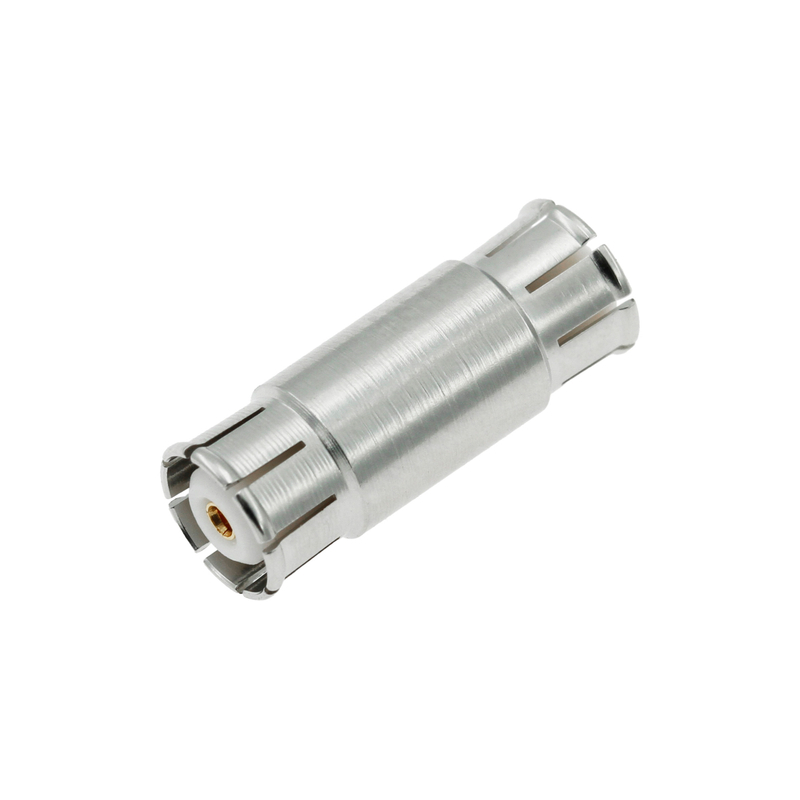

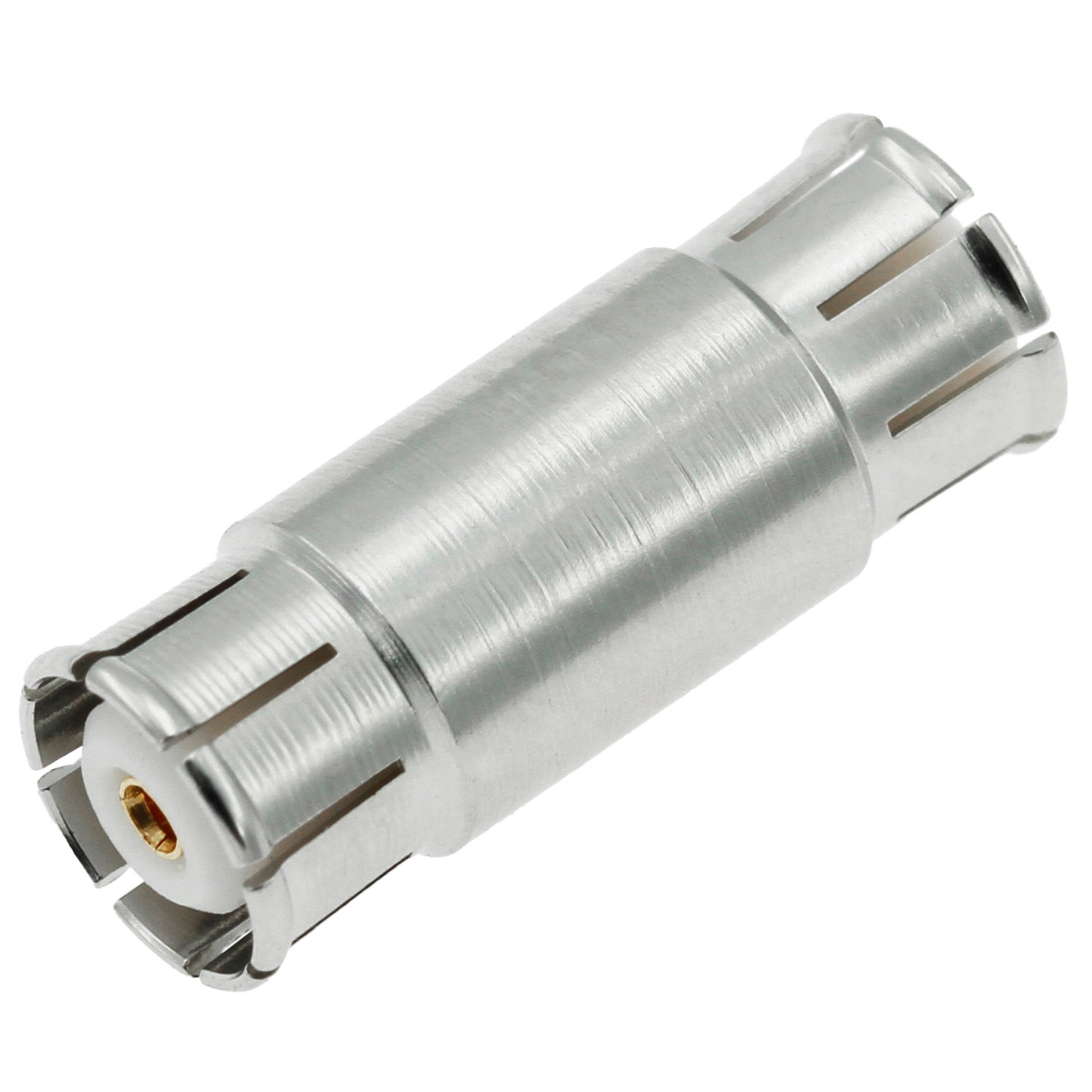

The SMP RF Connector is a compact, high-performance connector designed for high-frequency applications up to 40 GHz. With push-on and snap-on mating, it ensures durability and ease of use in RF systems.
High-Frequency Performance: Supports frequencies from DC to 40 GHz.
Compact & Lightweight: Ideal for miniaturized RF systems.
Push-On & Snap-On Coupling: Allows easy mating and demating, reducing wear.
Multiple Engagement Options: Standard, Limited Detent, and Full Detent for varying retention forces.
Good Tolerance Compensation: Allows misalignment in board-to-board connections.
Durable Materials: Typically made from gold-plated beryllium copper (BeCu) or stainless steel.
Military & Aerospace Systems (e.g., radar, avionics, SATCOM)
High-Speed Telecommunications (e.g., 5G, RF backhaul, network infrastructure)
Test & Measurement Equipment (e.g., spectrum analyzers, oscilloscopes)
Medical Imaging & Devices (e.g., MRI, ultrasound systems)
Automotive Radar & ADAS (e.g., self-driving vehicle sensors)
Body Plating | Gold |
Body Material | Brass |
Cable Type | - |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
HS Code | 8536909000 |
Frequency (Max GHz) | 40 |
Gender | Jack to Jack |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Size Category | Subminiature |
Temperature Range | -65~165 °C |
Thread Direction | Standard |
Mating Cycles | 500 Min |
FAQ
1. Sample delivery time
Regular model need 15 days, some complex connectors need 25 days
2. Sample Fee
The most of RF connector is CNC parts,don't need to make mold.
Through, each part need be tuning the CNC, usually one sample need 200 USD cost.
The fee will return after 5K bulk order
3. The Quarantee
Brass RF connector is one year, the stainless steel connector is three year.
Also, depend on the material of contact, Beryllium contact have better lifetime.
4. ROHS&REACH
Our product fully compliance with ROHS&REACH.
5.Does LENORF offer military class product
Yes. We honor to offer military product with super stable quality.
6. MOQ
Regular connector: 500PCS.
Adaptor:100PCS
Military connector:100PCS
7. Materials
The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,
brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.
Application:
Telecommunication,Military,Broadband,Industry,Medical,5G,Radar,Aerospace.
