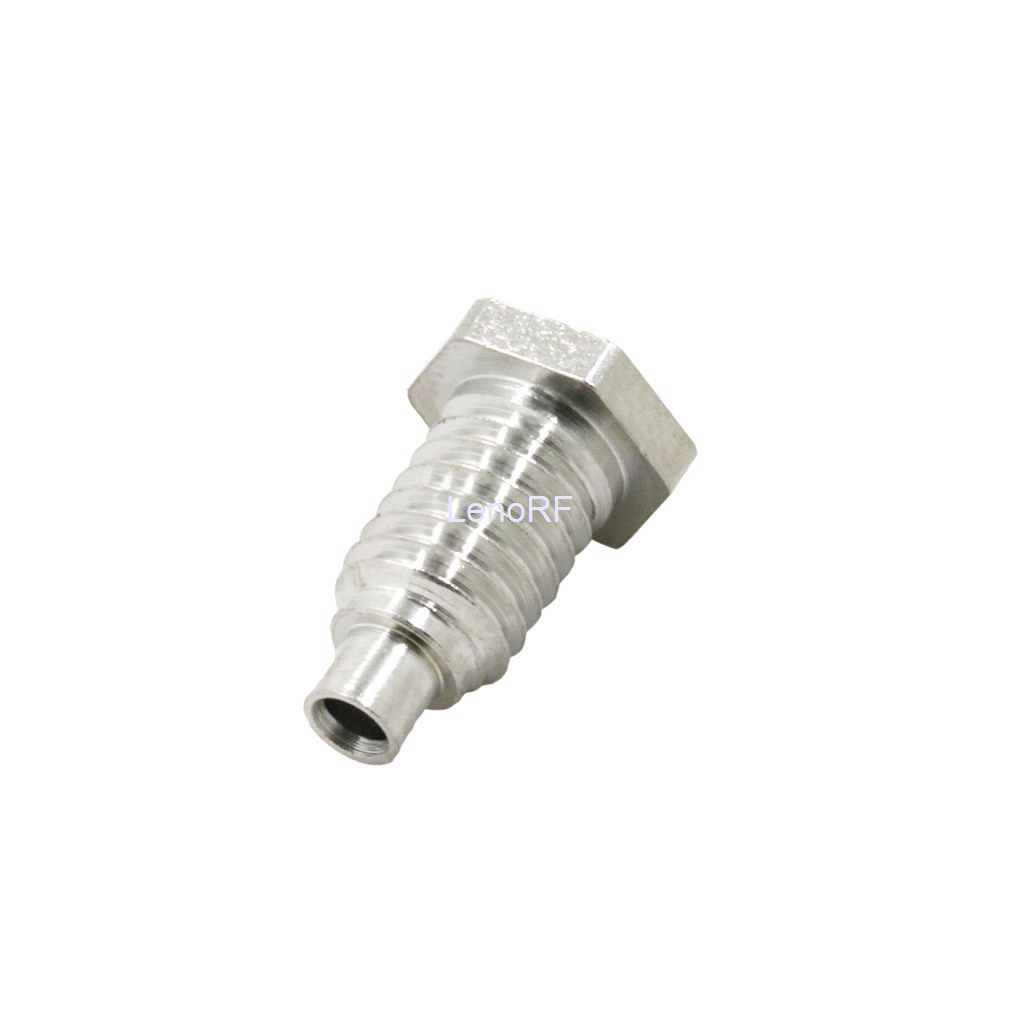

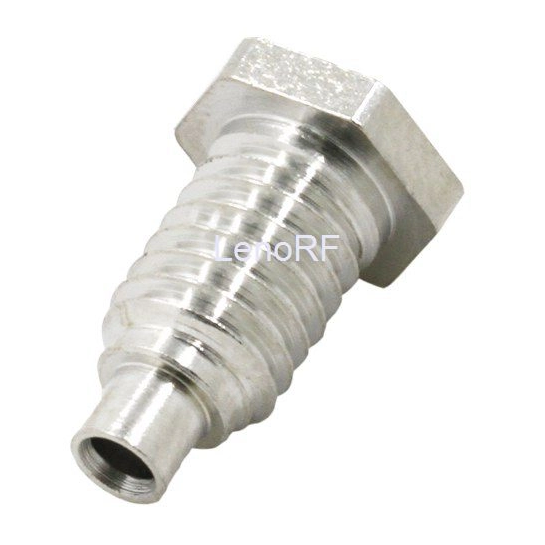

SMP-MAX Connector Plug Thread Mount Solder For RG405 Cable

SMP Connectors are plug-in connectors for usage up to 40 GHz. Because they can be pressed together to establish a connection and pulled apart to break it, these connectors are simple to connect and disengage. They don't need to be screwed on, unlike most other connectors. Full, limited, and smooth bore detent systems are available for SMP connectors, each with different engagement and disengagement pressures. They are available in two mating styles: push-on and snap-on.
The floating bullet, which acts as a link between mated pairs and adjusts for radial and axial misalignment, can be utilized with these connectors in a board-to-board system.
  • 830-1129

  • Male

  • Straight

  • Soldering

  • Soldering

  • RG405

Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable TypeRG405
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismSnap-on
HS Code8536909000
Frequency (Max GHz)40
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategorySubminiature
Temperature Range-65   -165 °C
Thread DirectionStandard
Mating Cycles500   Min
