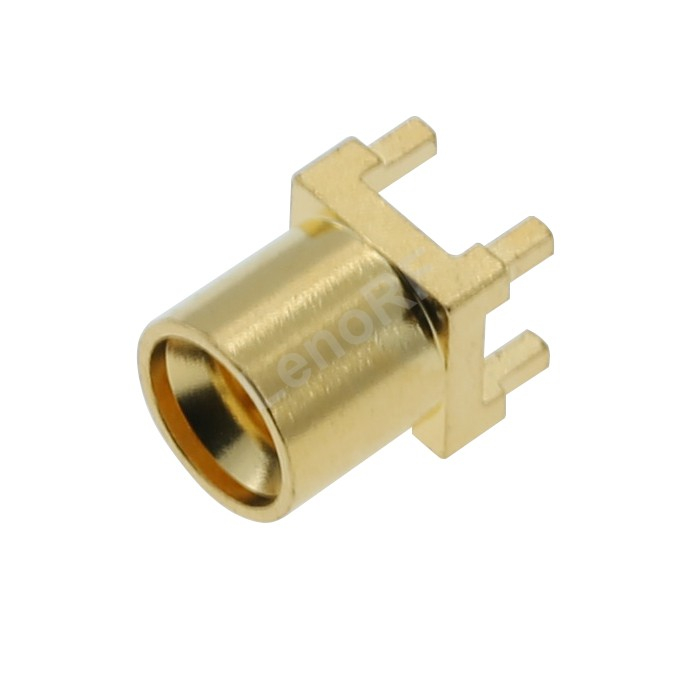

SMPM Miniature Connector Plug Solder Straight For PCB

The SMPM connector is a miniature coaxial connector designed for high-frequency RF applications, featuring a frequency range up to 65 GHz. Its compact size and push-on mating mechanism offer space-saving advantages and quick connections. With a standardized impedance of 50 ohms and robust mechanical construction, SMPM connectors ensure reliable signal transmission in aerospace, defense, telecommunications, and test equipment. Variants including cable-mounted and PCB-mounted options provide flexibility in system integration. Overall, SMPM connectors are prized for their combination of small form factor, high-frequency performance, and durability in demanding RF environments.These connectors can be utilized in a board-to-board system with a floating bullet that connects matched pairs and adjusts for radial and axial misalignment.
  • 24-003

  • Male

  • Straight

  • PCB End launch

  • Soldering

  • N/A

Availability:
Quantity:



Body   PlatingGold
Body MaterialBrass
Cable Type086" Cable
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)65
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategorySubminiature
Temperature Range-65   -165 °C
Thread DirectionStandard
Mating Cycles500   Min




FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The Quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


6. MOQ

Regular connector: 500PCS.

Adaptor:100PCS

Military connector:100PCS


7. Materials

The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,

brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.


Application:

Telecommunication,Military,Broadband,Industry,Medical,5G,Radar,Aerospace.
