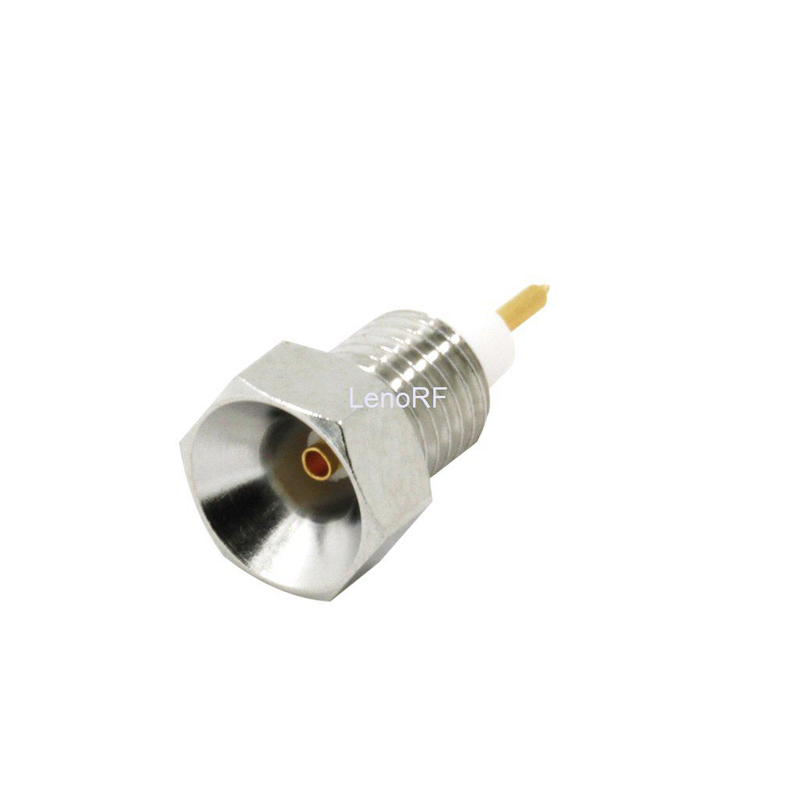

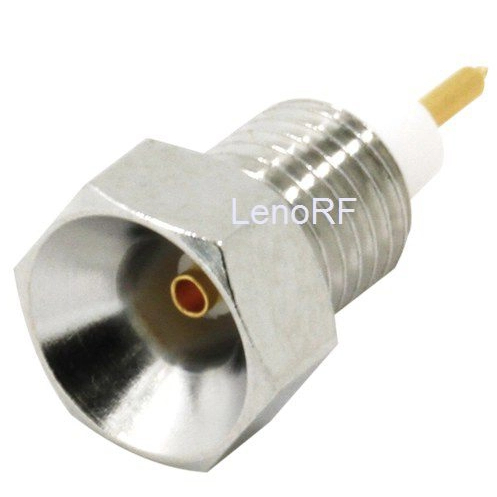

SMP Connector Jack Rear Mount Straight For Microstrip

Plug-in connections for applications up to 40 GHz are known as SMP Connectors. These connectors are simple to connect and unhook since they can be pressed together to form a connection and pulled apart to open it. They do not require the use of screws, as do most other connections. SMP connections come with three distinct detent systems: full bore, restricted bore, and smooth bore, each with varying engagement/disengagement pressures. Both push-on and snap-on mating types are offered.
These connectors can be used in a board-to-board system with a floating bullet, which acts as a connection between mated pairs and compensates for radial and axial misalignment.
  • 830-1124-3

  • Female

  • Straight

  • Soldering

  • Soldering

  • Microstrip

Availability:
Quantity:

Overview

The SMP RF Connector is a compact, high-performance connector designed for high-frequency applications up to 40 GHz. With push-on and snap-on mating, it ensures durability and ease of use in RF systems.


Key Features of SMP Connectors


  • High-Frequency Performance: Supports frequencies from DC to 40 GHz.

  • Compact & Lightweight: Ideal for miniaturized RF systems.

  • Push-On & Snap-On Coupling: Allows easy mating and demating, reducing wear.

  • Multiple Engagement Options: Standard, Limited Detent, and Full Detent for varying retention forces.

  • Good Tolerance Compensation: Allows misalignment in board-to-board connections.

  • Durable Materials: Typically made from gold-plated beryllium copper (BeCu) or stainless steel.


Applications of SMP Connectors


  • Military & Aerospace Systems (e.g., radar, avionics, SATCOM)

  • High-Speed Telecommunications (e.g., 5G, RF backhaul, network infrastructure)

  • Test & Measurement Equipment (e.g., spectrum analyzers, oscilloscopes)

  • Medical Imaging & Devices (e.g., MRI, ultrasound systems)

  • Automotive Radar & ADAS (e.g., self-driving vehicle sensors)



Specification

Body   PlatingGold
Body MaterialBrass
Cable Type***
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)40
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategorySubminiature
Temperature Range-65 ~165 °C
Thread DirectionStandard
Mating Cycles500   Min
