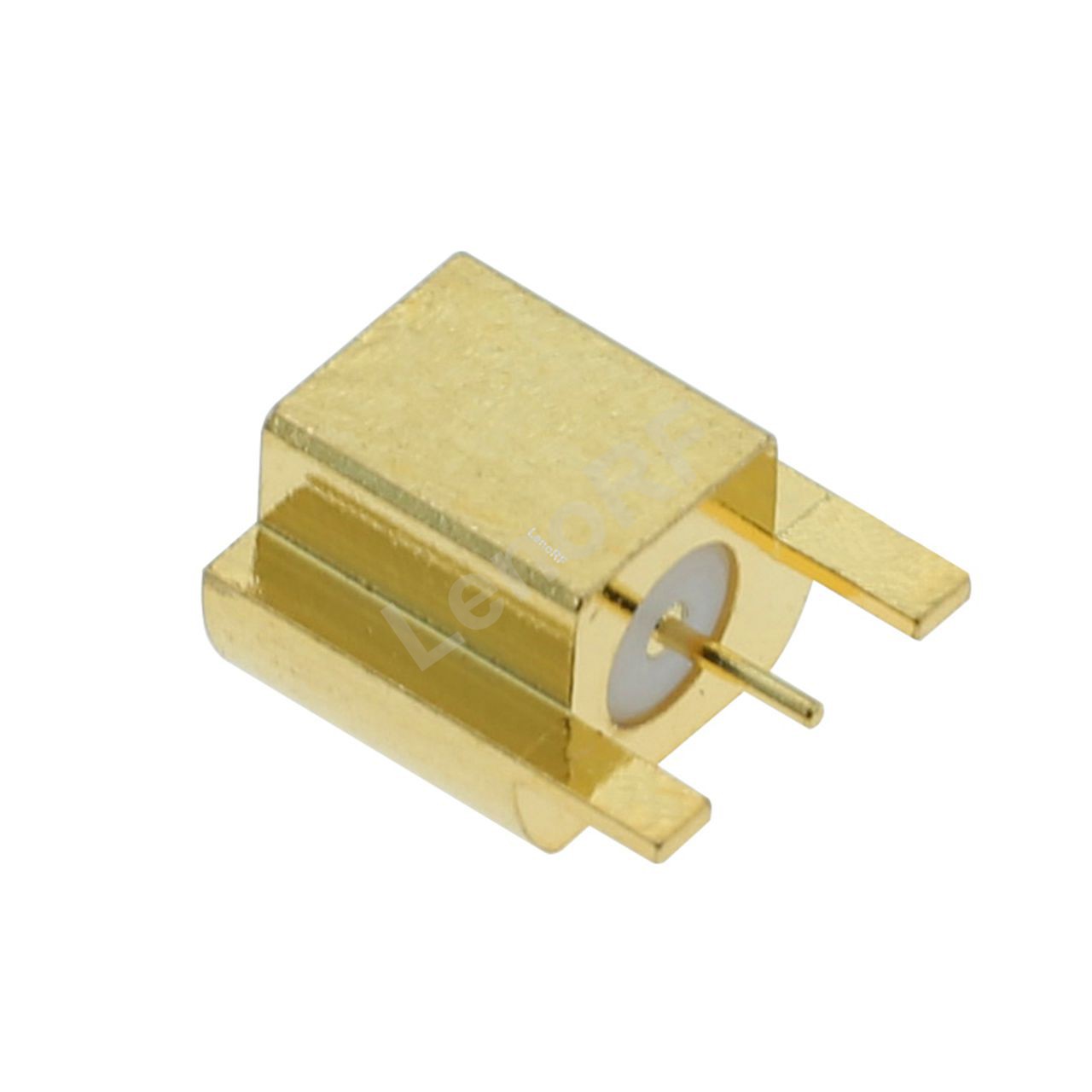

SMP Plug Connector Edge Mount Straight For PCB , Gold Plating

SMP connector are plug-in connectors designed for usage up to 40 GHz. Because they can be pressed together to establish a connection and pulled apart to break it, these connectors are easy to connect and disconnect. They do not require any screwing, unlike most other connectors. SMP connectors are available with three different detent systems: full, limited, and smooth bore, each having different engagement and disengagement forces. Push-on and snap-on are the two types of mating techniques available.
These connectors can be utilized in a board-to-board system with a floating bullet that connects matched pairs and adjusts for radial and axial misalignment.
  • 23-017

  • Female

  • Straight

  • Soldering

  • Soldering

Availability:
Quantity:
Body   PlatingGold
Body MaterialBrass
Cable Type-
Contact PlatingGold
Contact MaterialBeryllium Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)40
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategorySubminiature
Temperature Range-65   -165 °C
Thread DirectionStandard
Mating Cycles500   Min
