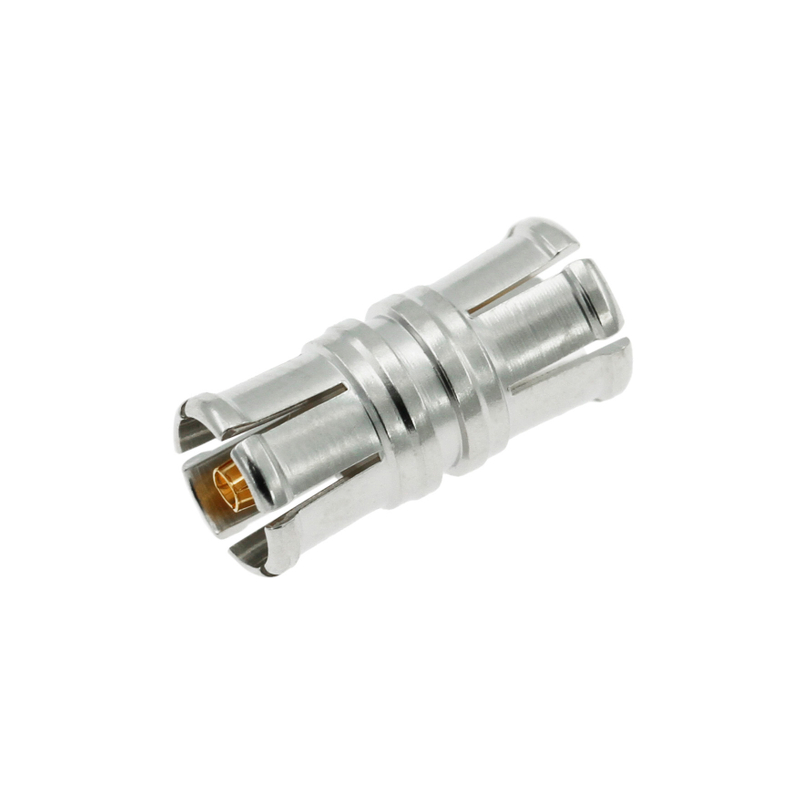

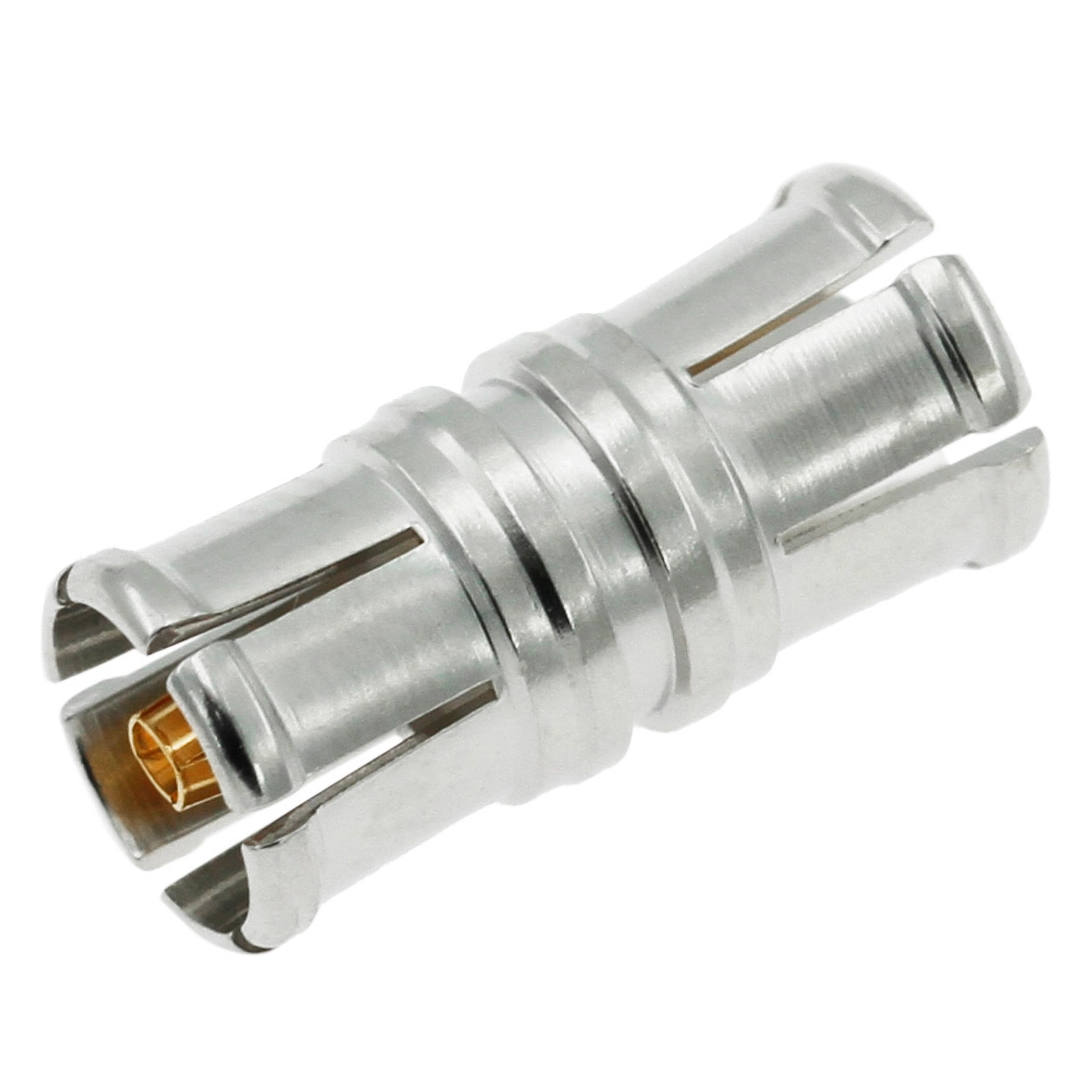

PSMP Connectors Jack To Jack Adapter

SMP Connectors are plug-in connectors designed for usage up to 40 GHz. Because they can be pressed together to establish a connection and pulled apart to break it, these connectors are easy to connect and disconnect. They do not require any screwing, unlike most other connectors. SMP connectors are available with three different detent systems: full, limited, and smooth bore, each having different engagement and disengagement forces. Push-on and snap-on are the two types of mating techniques available.
These connectors can be utilized in a board-to-board system with a floating bullet that connects matched pairs and adjusts for radial and axial misalignment.
  • 831-1230

  • Female

  • Straight

  • Soldering

  • Soldering

  • N/A

Availability:
Quantity:



Body   PlatingGold
Body MaterialBrass
Cable Type-
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)40
GenderJack to Jack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Size CategorySubminiature
Temperature Range-65   -165 °C
Thread DirectionStandard
Mating Cycles500   Min




FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The Quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


6. MOQ

Regular connector: 500PCS.

Adaptor:100PCS

Military connector:100PCS


7. Materials

The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,

brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.


Application:

Telecommunication,Military,Broadband,Industry,Medical,5G,Radar,Aerospace.
