Overview

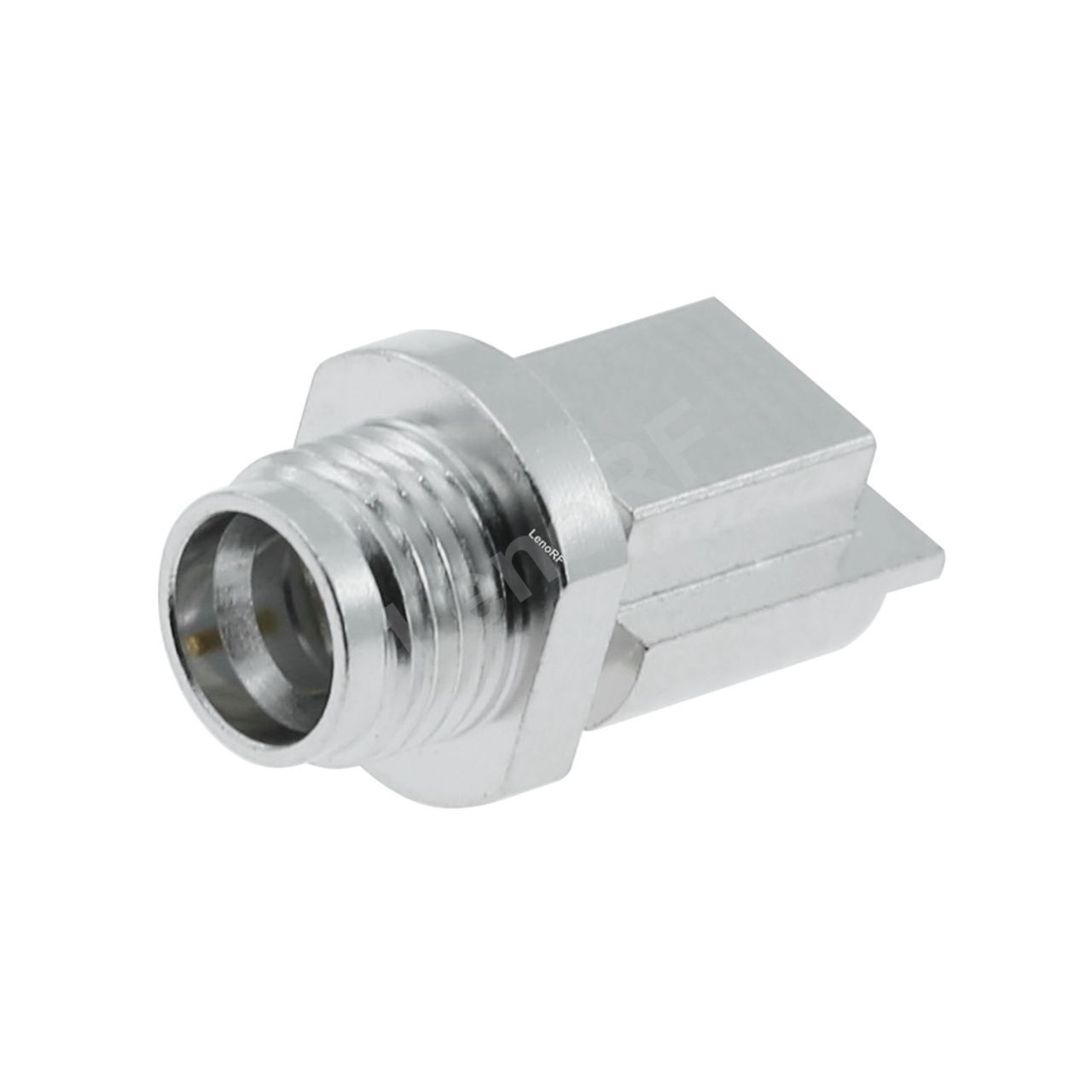

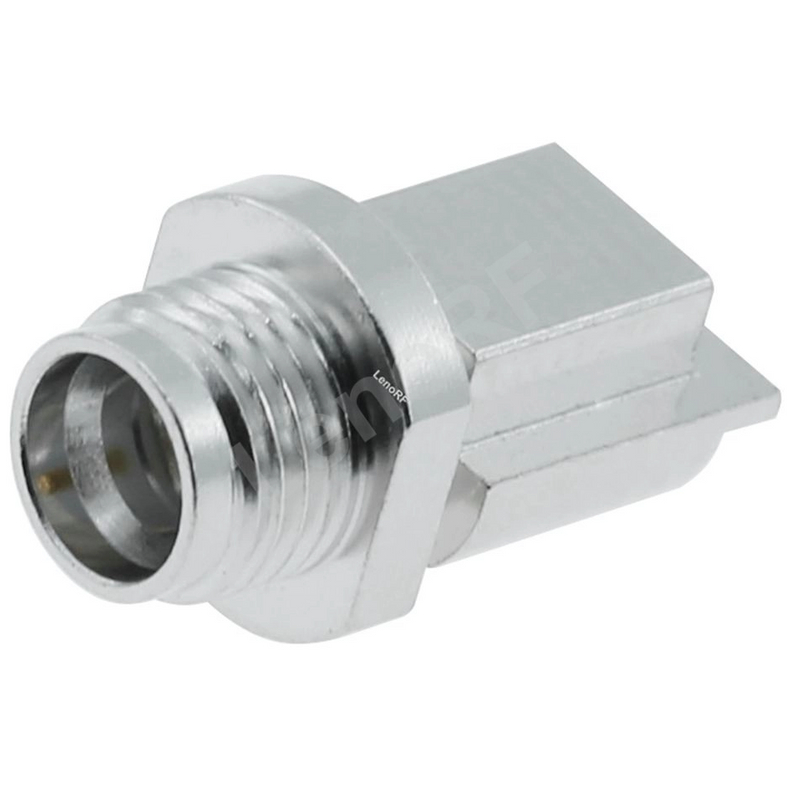

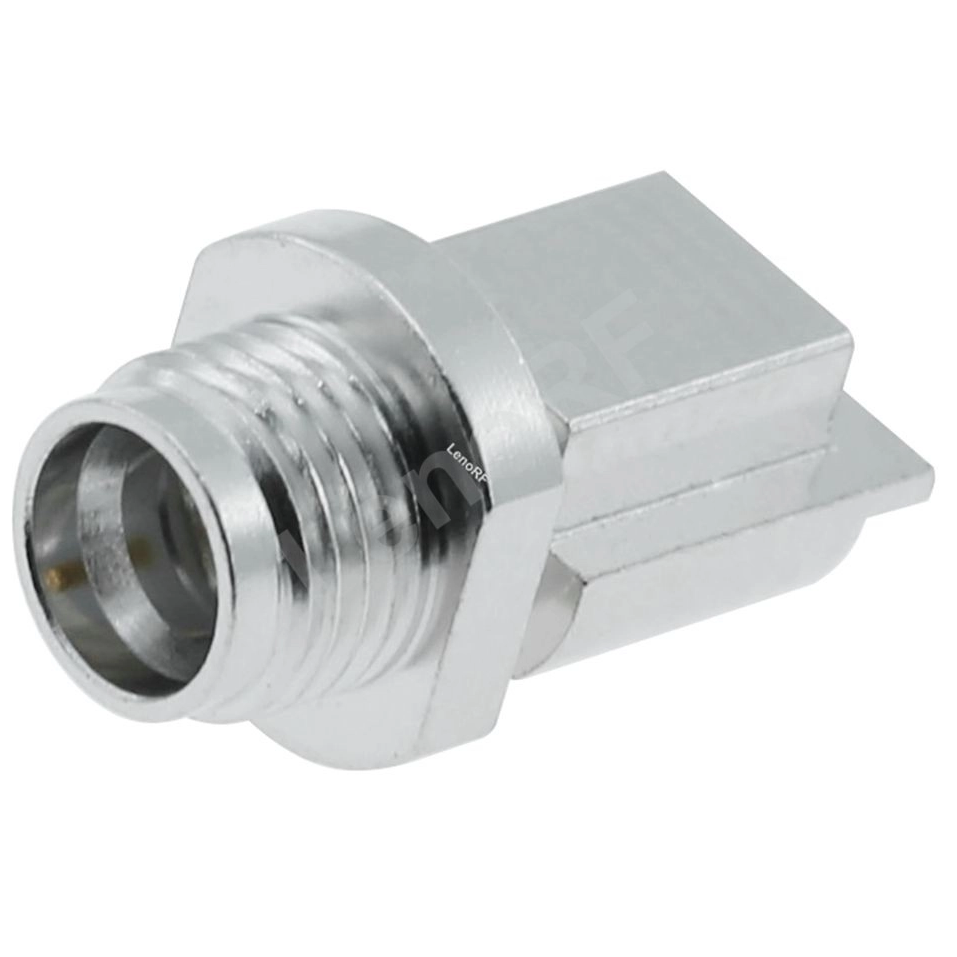

The SMP connector is a high-frequency, subminiature coaxial connector designed for applications requiring ultra-compact size and reliable performance. It features a push-on coupling mechanism that enables quick, easy connections and disconnections while maintaining consistent electrical performance. SMP connectors typically have a 50 ohm impedance and support frequencies up to 40 GHz or higher, making them ideal for RF, microwave,wireless sensor networks and IoT gateways and high-speed digital systems. Their small footprint allows dense packaging in test equipment, telecommunications, and aerospace applications. Available in both male and female configurations, SMP connectors deliver durable, low-reflection connections for demanding, space-constrained designs.
Features
Engineered to handle both radial and axial misalignment.
Available in push-on and snap-on mating styles for fast, easy installation.
Offered in board-to-board and cable-to-board configurations to suit diverse system layouts.
Applications
Antennas
Military
Telecommunications
Instrumentation
wireless sensor networks and IoT gateways
smart meters and remote monitoring devices
RF ablation, telemetry, and diagnostic tools
Specification
Cable Type | N/A |
| Body Plating | Tri-Metal |
| Body Material | Brass |
| Contact Plating | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Cable Termination | Solder |
| Coupling Mechanism | Thread |
HS Code | 8636909000 |
Frequency (Max GHz) | 20 |
Gender | Male |
Impedance (Ohm) | 50 |
Size Category | Miniature |
Orientation | Straight |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | IEC 61169-44 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is “reverse polarity” (RP-SMA, RP-TNC)?
Reverse polarity means the gender of the center pin is swapped while keeping the outer body style unchanged. It was introduced to comply with regulatory requirements in Wi-Fi devices and to prevent connection with standard SMA/TNC.
What’s the lifespan of an RF connector?
Connector durability is rated in mating cycles: General-purpose connectors (BNC, SMA): 500 cycles. Precision connectors (2.92 mm, 2.4 mm): 500 cycles or less. Rugged telecom connectors (N, 7/16 DIN): 500 cycles.
Can RF connectors be reused?
Yes, but performance degrades with wear. Precision connectors (used in test equipment) should be handled carefully—damage to threads or pins increases VSWR and insertion loss.
What’s the difference between threaded, bayonet, and push-on RF connectors?
Threaded (SMA, N, TNC): Secure, vibration-resistant. Bayonet (BNC): Quick connect/disconnect. Push-on (MCX, SMP): Ultra-fast, compact, used in high-density modules.
