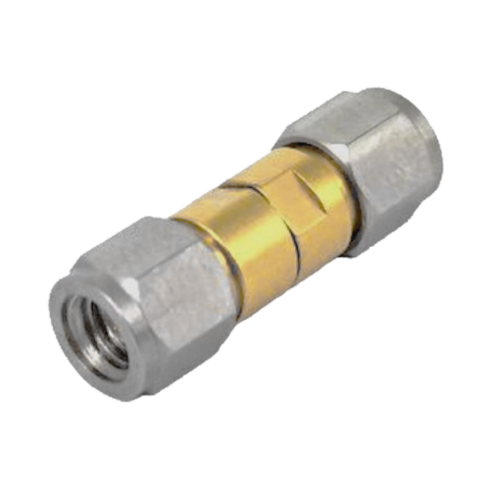

1.00mm Connector Male To Male Straight Adapter

In RF labs all throughout the globe, 1.00 mm coaxial connectors are typical. They are, in fact, a must-have for engineers who undertake tests up to 110 GHz. However, their traditional design has a flaw: the pitch is overly coarse, resulting in a large axial distance between the threads. They're similar to self-tapping screws offered in hardware shops, but with one key difference: although self-tapping screws work dependably and can tolerate normal vibrations, the nut that matches with a 1.00 mm connection loosens nearly just by looking at it. As a result, calibration issues are almost built-in, necessitating the repetition of whole test series. Aside from the unneeded additional expenditures, it's a huge cause of annoyance.
  • 100-3038

  • Male to Male

  • Straight

  • Crimping

  • Crimping

  • N/A

Availability:
Quantity:

Series 11.00mm
Series 21.00mm
Body PlatingGold
Body MaterialStainless Steel
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)110
GenderPlug to Plug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Temperature Range-65  ~165 °C
Mating Cycles500   Min


FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The Quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.


6. MOQ

Regular connector: 500PCS.

Adaptor:100PCS

Military connector:100PCS


7. Materials

The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,

brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.


Application:

Telecommunication,Military,Broadband,Industry,Medical,5G,Radar
