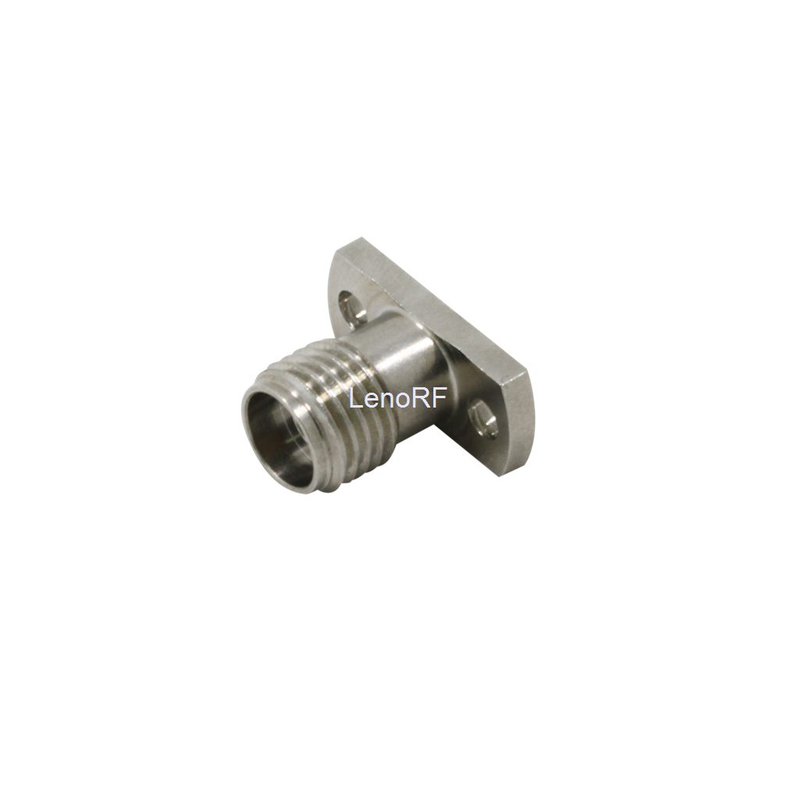

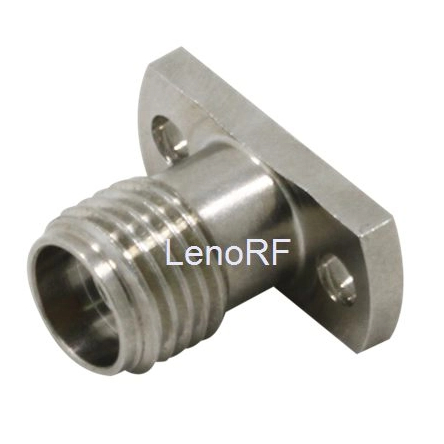

2.4mm Jack Flange Mount Receptacle For Microstrip

The 2.4 mm connector is a screw-on precision connector with a 50 ohm impedance that can handle frequencies up to 50 GHz. Satellites, test & measurement, and radars all require 2.4 mm connections, which are standardized according to IEC 61169-40. Mechanically, the connections are compatible with 1.85 mm connectors. They resemble SMA and 3.5 mm connections in appearance, but they require precise adapters to connect to SMA, 3.5mm, and 2.92mm connectors. 2.4 mm connections contain a thicker outer conductor than standard SMA and 2.9 mm connectors, making them more durable.
  • 831-1201
  • Male
  • Straight
  • 2 Hole Flange
  • Soldering
  • N/A
Availability:
Quantity:
Body   PlatingGold
Body MaterialStainless Steel
Cable TypeN/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)50
GenderPlug
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Panel Mounting Feature2 Hole Flange
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleSolder
Thread DirectionStandard
Mating Cycles500   Min
