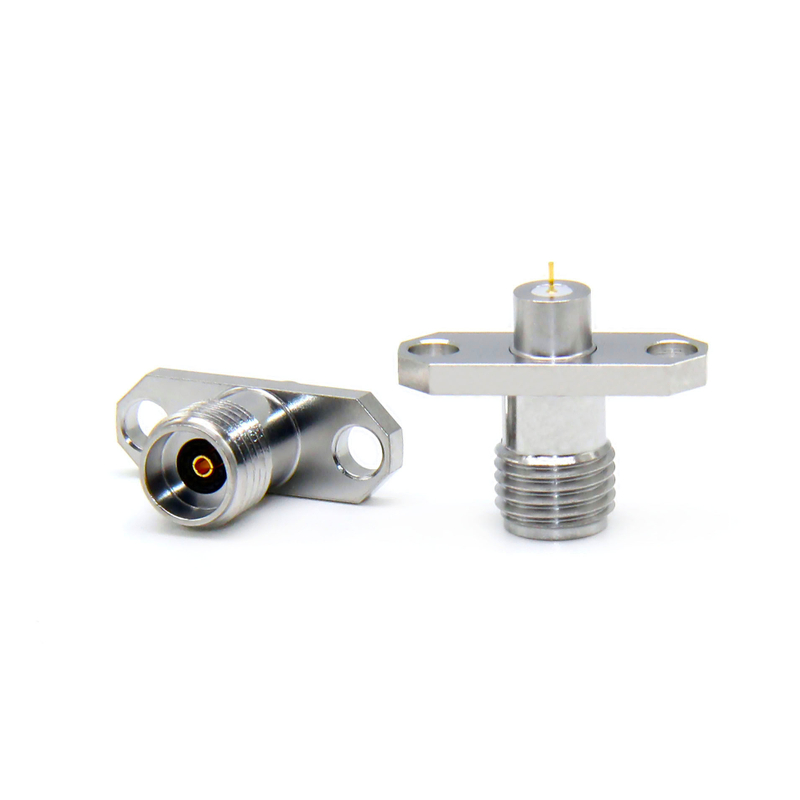

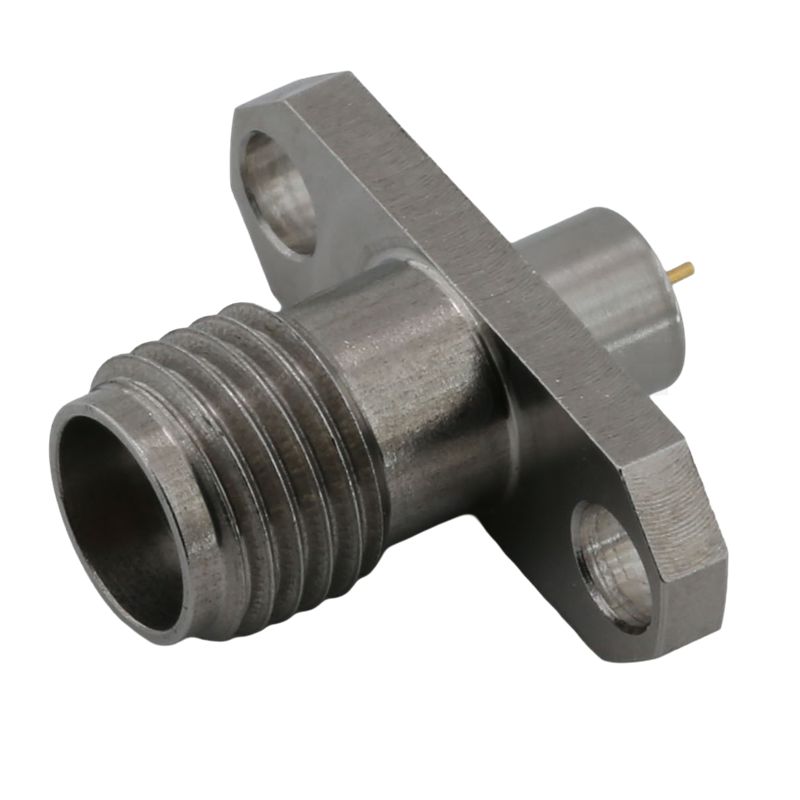

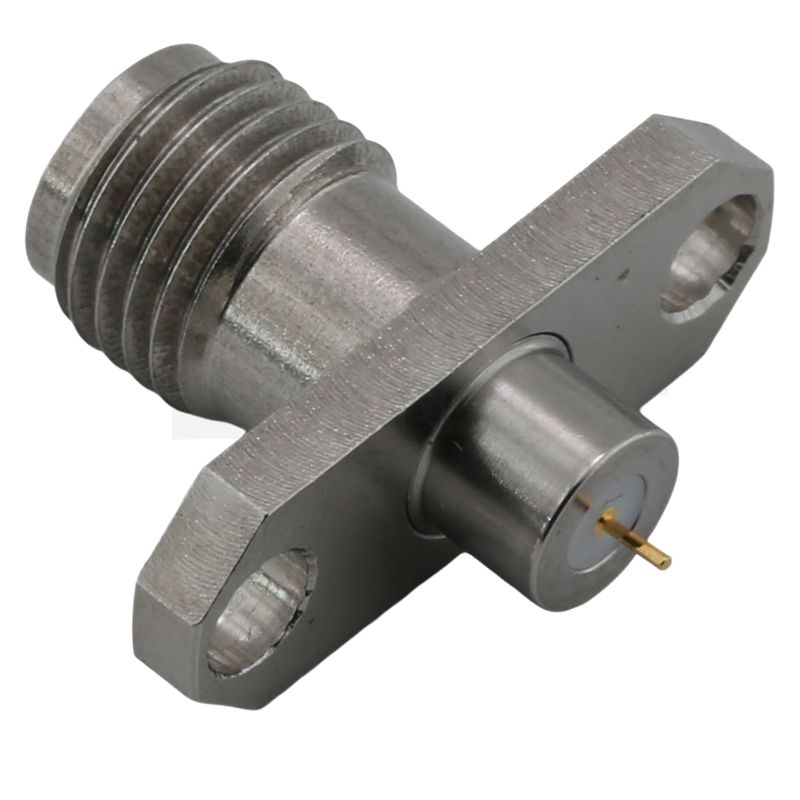

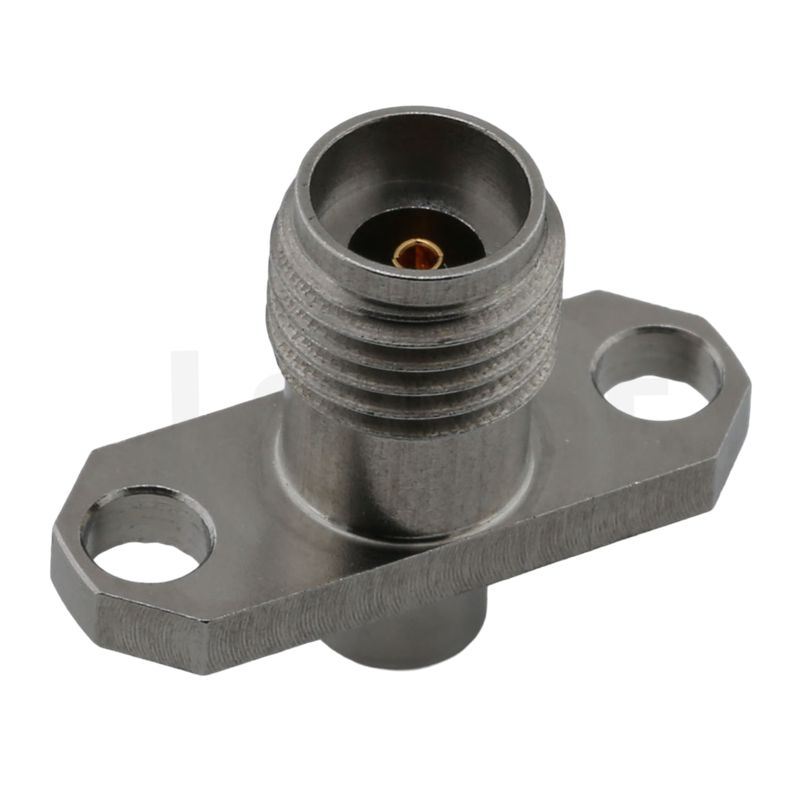

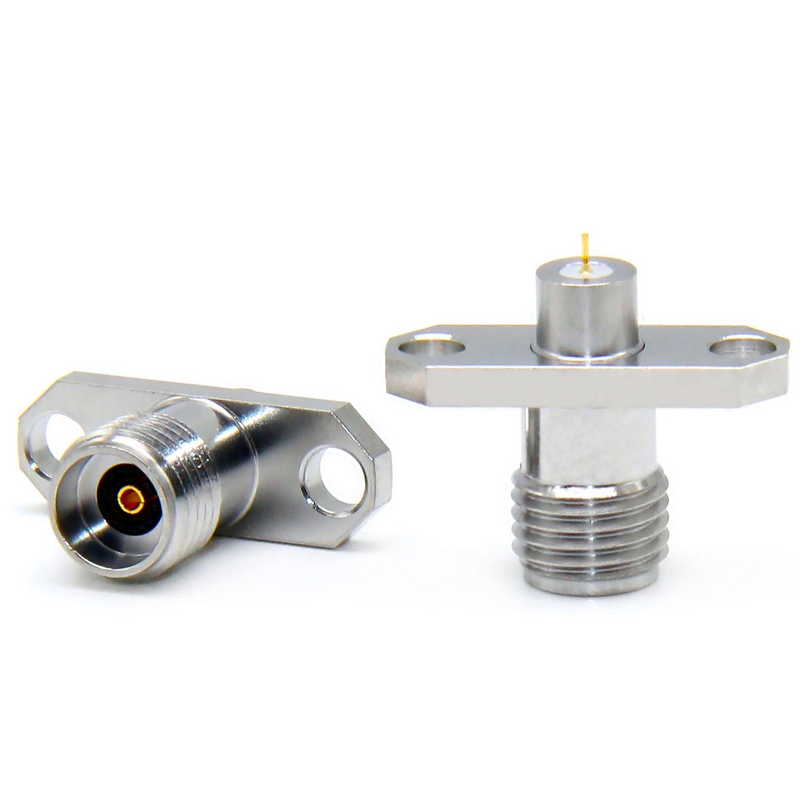

2.92mm Jack Connector Straight Flange Solder For Microstrip

The 2.4 mm connector is a screw-on precision connector with a 50 ohm impedance that can handle frequencies up to 50 GHz. Satellites, test & measurement, and radars all require 2.4 mm connections, which are standardized according to IEC 61169-40. Mechanically, the connections are compatible with 1.85 mm connectors. They resemble SMA and 3.5 mm connections in appearance, but they require precise adapters to connect to SMA, 3.5mm, and 2.92mm connectors. 2.4 mm connections contain a thicker outer conductor than standard SMA and 2.9 mm connectors, making them more durable.
  • 2.92-KFD504G

  • Female

  • Straight

  • PCB SMT

  • Soldering

  • N/A

  • Specification 2.92-KFD504G LenoRF.pdf




Body   Plating Gold
Body Material Stainless Steel
Cable Type N/A
Contact Plating Gold
Contact Material Beryllium   Copper
Contact Termination Solder
Coupling Mechanism Threaded
HS Code 8536909000
Frequency (Max GHz) 40
Gender Jack
Impedance (Ohms) 50
Insulator Material PTFE
Orientation Straight
Panel Mounting Feature 4 Hole Flange
Size Category Subminiature
Temperature Range -65   -165 °C
Termination Style Solder
Thread Direction Standard
Mating Cycles 500   Min

typical customer


1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days

2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order

3. The Quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


Our product fully compliance with ROHS&REACH.

5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.

6. MOQ

Regular connector: 500PCS.


Military connector:100PCS

7. Materials

The popular material is brass,stainless steel for body, PTFE,PEEK for insulator,

brass, phosphor bronze, beryllium copper for contact, as well as aluminum,titanium alloy.



Our company, Zhejiang LenoRF Industry co. LTD, occupies an area of 30 hectares and is equipped with world class equipment to make millimeter wave connectors and phase stable cables. We specialize in coaxial connectors, cable assembly, and passive devices. Our current products are the latest millimeter wave connector and phase stable cable on the market.
