Introduction
In the ever-evolving world of radio frequency (RF) technology, connectors serve as the vital link between components, ensuring the seamless and reliable transmission of signals. Among the multitude of connector options available, the SMB (SubMiniature B) connector series stands out as a compact and efficient snap-on coupling solution. SMB connectors, with their unique gender designation and standardized design, have found applications in a wide range of commercial and older military hardware. In this comprehensive guide, we will delve into the world of SMB connectors, exploring their design, technical specifications, historical context, applications, interface standards, variations, and their place in the dynamic landscape of wireless communication.
SMB Plug Connector

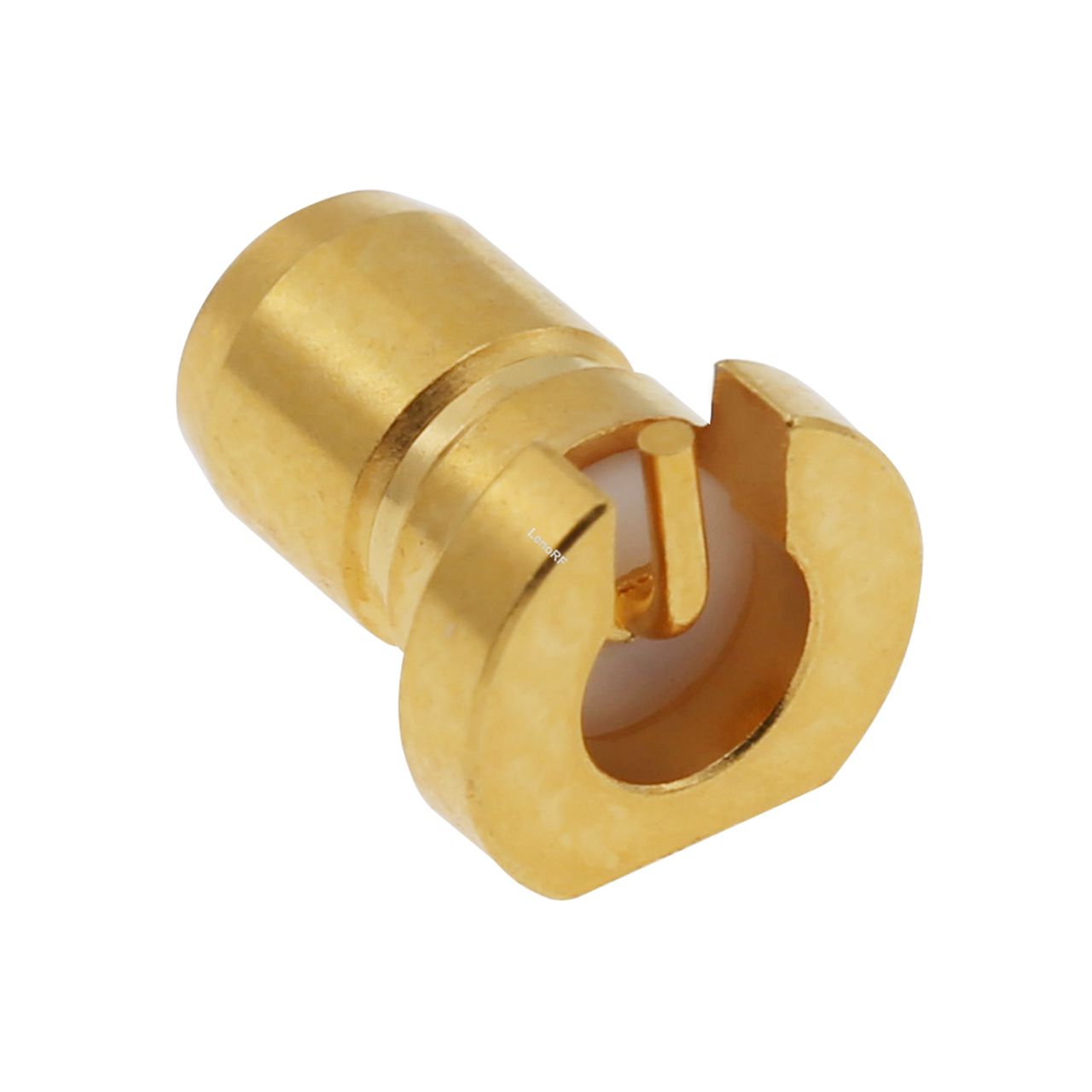

SMB Jack Connector
Understanding SMB Connectors
1. Design and Construction
The SMB connector series was conceptualized as a smaller snap-on coupling alternative to the SMA (SubMiniature version A) connector. It is important to note that the gender designation for SMB connectors can be somewhat counterintuitive. The smaller "jack" body contains the male pin, making the smaller connector the male, while the larger connector houses the female receptacle.
SMB connectors adhere to recognized interface standards, including MIL-C-39012, IEC 60169-10, and CECC 22130, ensuring compatibility across various manufacturers. The snap-on coupling mechanism simplifies the mating process, making SMB connectors easy to connect and disconnect.
2. Technical Specifications
To gain a comprehensive understanding of SMB connectors, it is essential to delve into their key technical specifications:
Impedance: 50 Ω
Maximum Operating Frequency: 4.00 GHz
Coupling Mechanism: Snap-on Coupling
Interface Standards: CECC 22130, IEC 60169-10, MIL-STD-348B
These specifications define the electrical performance, frequency range, coupling mechanism, and compliance standards of SMB connectors, making them suitable for a range of applications.
Historical Context
The history of SMB connectors can be traced back to the 1960s when they were first introduced. In 1968, SMB connectors were officially incorporated into MIL-C-39012, receiving their current designation of SMB. Over the years, these connectors have undergone refinements and adaptations to meet the evolving needs of the RF industry.
Applications of SMB Connectors
SMB connectors, with their compact design and cost-effectiveness, have found a place in various applications, including:
1. Consumer Premises Equipment (CPE) Devices
SMB connectors are commonly used in CPE devices, such as cellular modems, Supervisory Control and Data Acquisition (SCADA) radios, Software-Defined Radios (SDR), WiFi routers, and other commercial wireless equipment. Their affordability and ease of use make them a preferred choice in these applications.
2. Older Military Hardware
Despite their compact size and limited robustness compared to SMA connectors, SMB connectors have been utilized in older military hardware. While not ideal for harsh environmental conditions with high levels of vibration, SMB connectors can still serve in less demanding military applications.
3. General RF Connectivity
SMB connectors find applications in general RF connectivity needs where cost-effectiveness and space-saving are essential considerations.
Challenges and Considerations
It is essential to note that while SMB connectors offer versatility and cost advantages, they are not as robust as their SMA counterparts. SMB connectors perform acceptably well under low to moderate levels of vibration but are not suitable for harsh environmental conditions where vibration levels are high. Engineers and designers should carefully assess the environmental conditions and performance requirements of their applications before selecting SMB connectors.
Variations and Alternatives
Connector designs with different coupling mechanisms, such as screw-on and push-on, have given rise to their unique connector series, including SMC and SMP. Additionally, a 75 Ω connector variation exists for applications with specific impedance requirements.

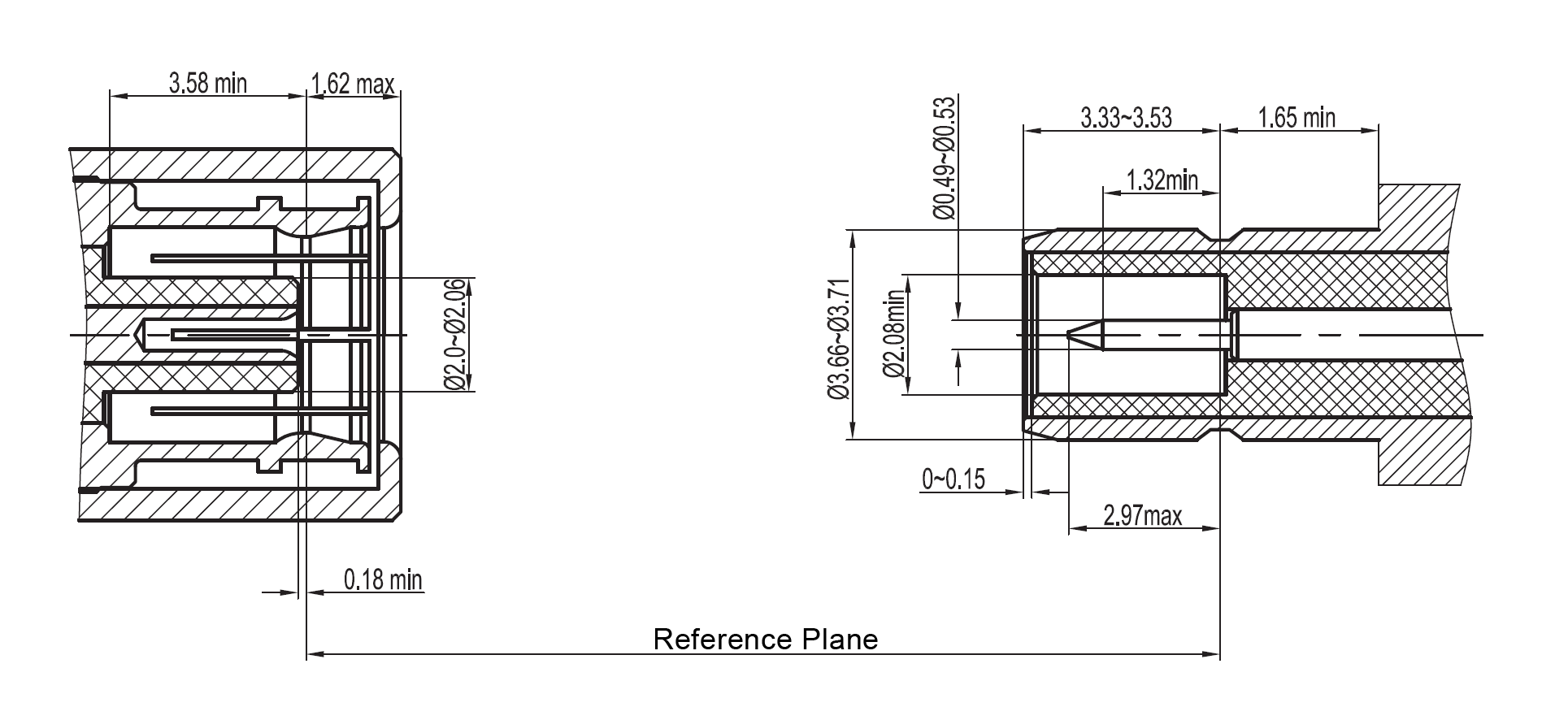

Interface Drawing
Conclusion
SMB connectors, with their compact design, snap-on coupling mechanism, and affordability, have made a significant impact in the world of RF connectivity. Their historical evolution and standardized design underscore their importance in the RF industry. SMB connectors, with their 50 Ω impedance and a maximum operating frequency of 4.00 GHz, are well-suited for various commercial applications, offering a cost-effective solution for wireless communication needs.
Despite their limitations in robustness compared to SMA connectors, SMB connectors continue to be a valuable choice for engineers and designers working on consumer premises equipment, older military hardware, and general RF connectivity applications. However, careful consideration of environmental conditions and performance requirements is essential when selecting SMB connectors to ensure optimal performance and reliability in any given application.
As technology continues to advance, SMB connectors remain a relevant and accessible option for RF connectivity needs, providing a balance between cost-effectiveness and performance in diverse wireless communication applications.
