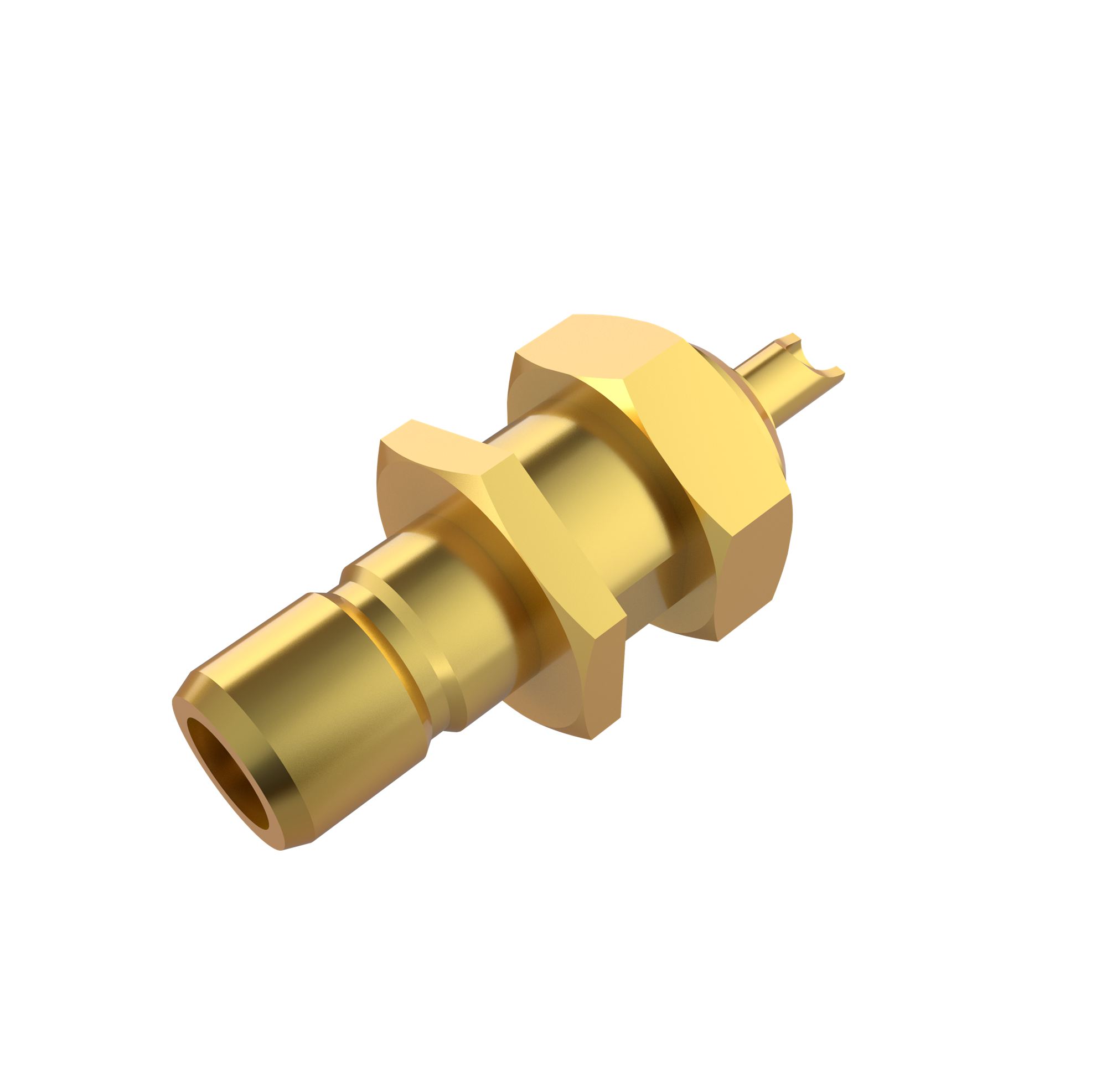

SMB Connectors Jack Buikhead Soldering

The SMB interface is available in 50 and 75 ohm versions and has a snap-on connection mechanism.
SMB connectors meet MIL-C-39012 standards, and the interface meets MIL-STD-348 criteria. Broadband performance with low reflectivity DC to 4 GHz and extended performance up to 10 GHz is provided via SMB connectors.
SMB connectors come in a variety of materials, with die cast components accessible in non-critical regions for a low-cost alternative.
  • 22-005

  • 60-5161-036-01

  • Female

  • Straight

  • PCB End launch

  • Soldering

  • N/A

  • 60-5161-036-01.pdf

  • 60-5161-036-01.stp

Availability:
Quantity:

Features and Benefits

Various plating options in nickel, gold, and tin lead

Quick connect/disconnect snap on mating reduces installation time

SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force

Applications

Base Stations

Antennas

Radio Boards

PC/LAN

Global Positioning System (GPS)

Instrumentation

Telecommunications

Materials&Electroplating

Conduct

Brass/ Gold Plating

Insulator

PTFE

Body

Brass /Gold Plating

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-3GHz

VSWR

≤1.35

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

Barometric Pressure (Altitude)

MIL-STD-202, Method 105, Condition C, 70k Ft.
