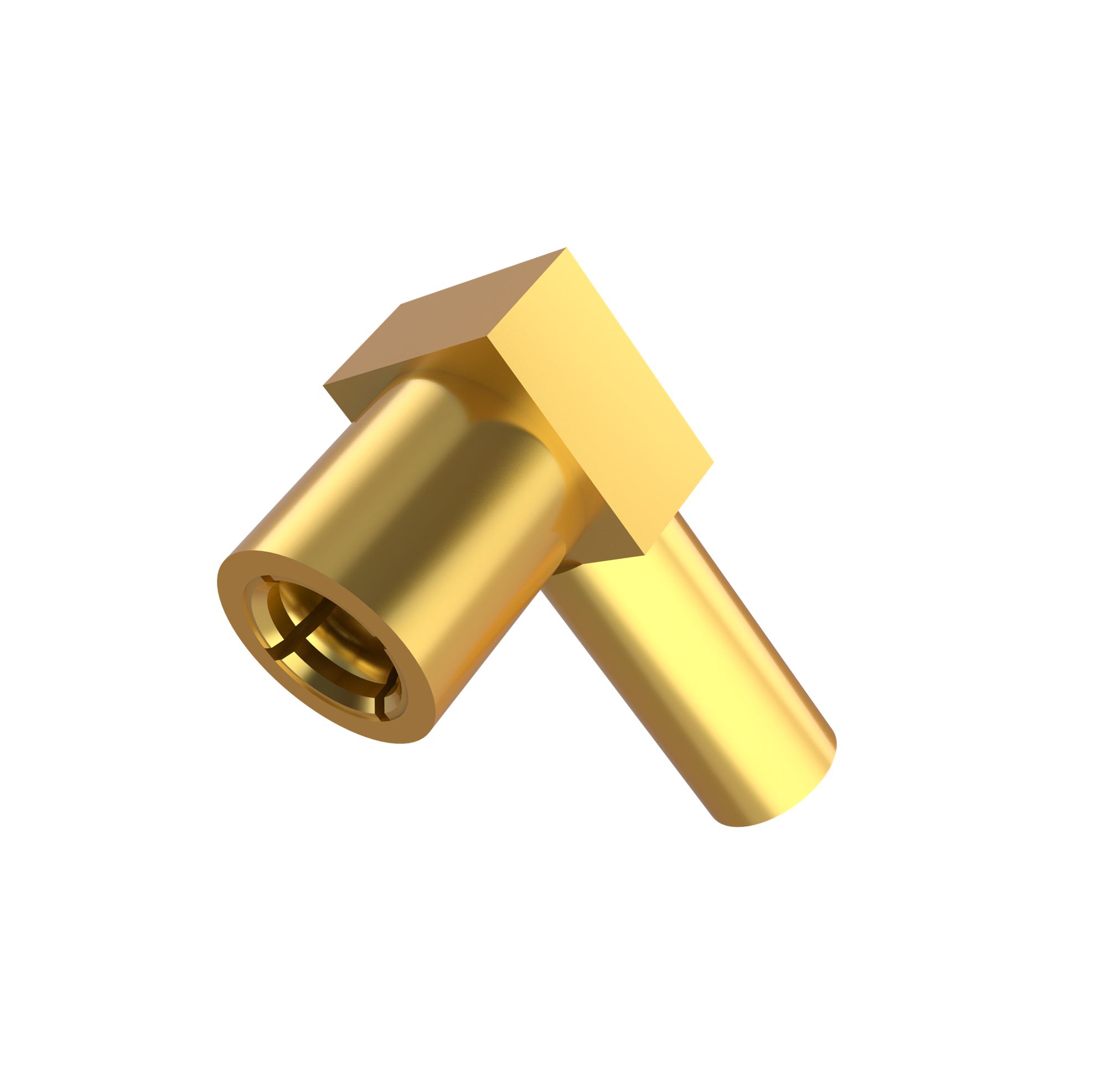

SMB Connectors Plug Straight For RG316 Coaxial Cable

SMB (SubMiniature version B) coaxial RF connectors were invented in the 1960s. SMB connectors are less than half the size of SMA connectors. SMB has a snap-on connection and comes in 50 ohms or 75 ohms impedance. The SMB Connector from LenoRF provides outstanding electrical performance from DC to 4 GHz. The SMB plug has a female socket, whereas the SMB jack has a male center pin.
  • 60-5061-115-02

  • Male

  • Straight

  • Crimping

  • Crimping

  • RG316

  • 60-5061-115-02.pdf

  • 60-5061-115-02.stp

Availability:
Quantity:

Features and Benefits

Various plating options in nickel, gold, and tin lead

Quick connect/disconnect snap on mating reduces installation time

SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force

Applications

Base Stations

Antennas

Radio Boards

PC/LAN

Global Positioning System (GPS)

Instrumentation

Telecommunications

Materials&Electroplating

Conduct

Brass/Gold Plating

Insulator

PTFE

Body

Brass /Gold Plating

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-3GHz

VSWR

≤1.35

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

Barometric Pressure (Altitude)

MIL-STD-202, Method 105, Condition C, 70k Ft.
