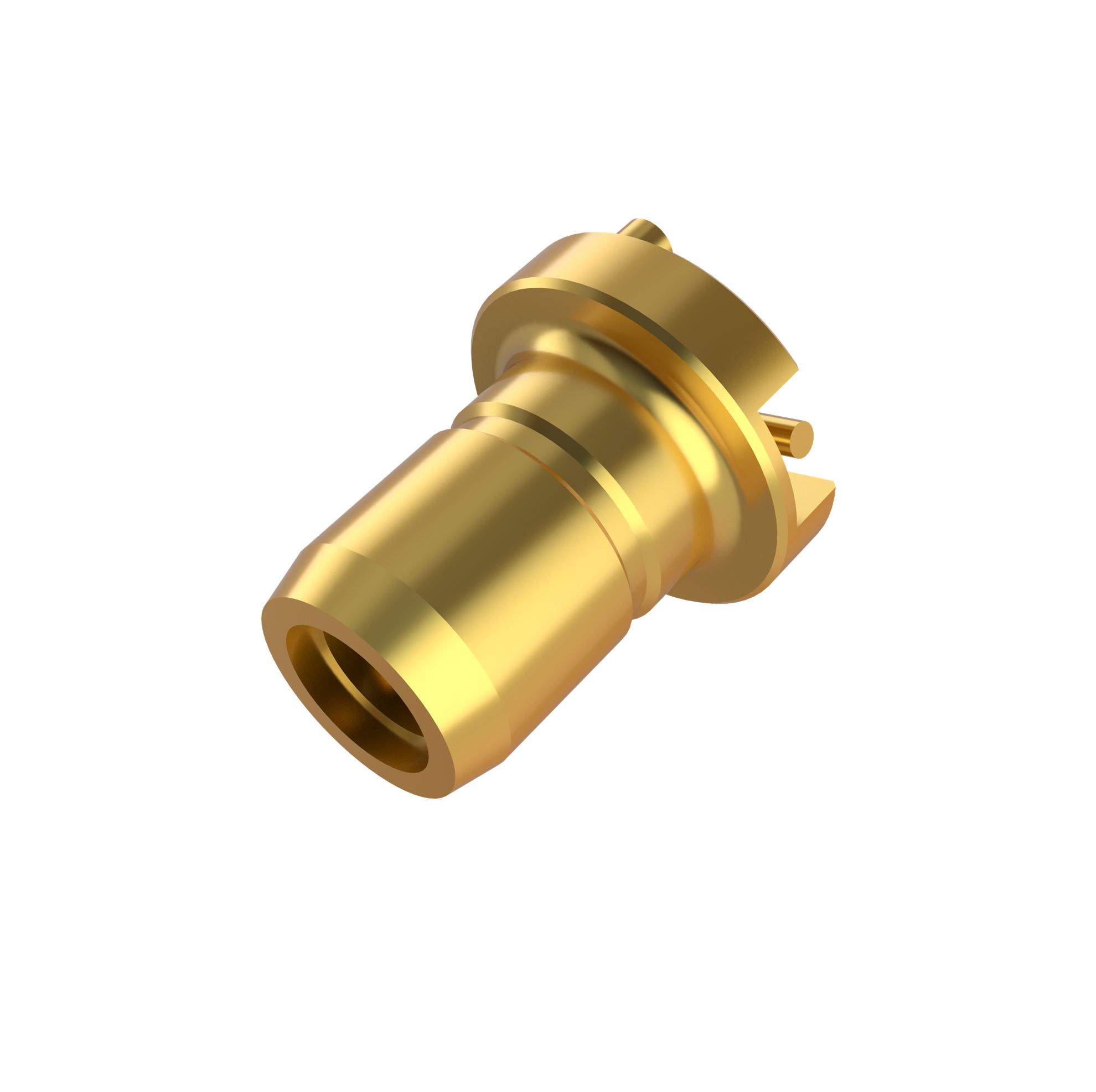

SMB Connectors Jack Straight For PCB SMT

Coaxial RF connectors created in the 1960s are known as SMB (SubMiniature version B) connectors. Smaller than SMA connectors, SMB connectors are used in a variety of applications. SMB have a snap-on coupling and come in two impedances: 50 ohms and 75 ohms. From DC to 4 GHz, the SMB Connector from LenoRF provides outstanding electrical performance. The male center pin on the SMB jack is different from the female center pin on the SMB plug.
  • 22-839
  • 60-5161-011-01
  • Female
  • Straight
  • PCB SMT
  • Soldering
  • N/A
  • 60-5161-011-01.pdf
  • 60-5161-011-01.stp
Availability:
Quantity:

Features and Benefits

Various plating options in nickel, gold, and tin lead

Quick connect/disconnect snap on mating reduces installation time

SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force

Applications

Base Stations

Antennas

Radio Boards

PC/LAN

Global Positioning System (GPS)

Instrumentation

Telecommunications

Materials&Electroplating

Conduct

Brass/ Silver  Plating

Insulator

 PTFE

Body

Brass /Ternary

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-3GHz

VSWR

≤1.35

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

Barometric Pressure (Altitude)

MIL-STD-202, Method 105, Condition C, 70k Ft.
