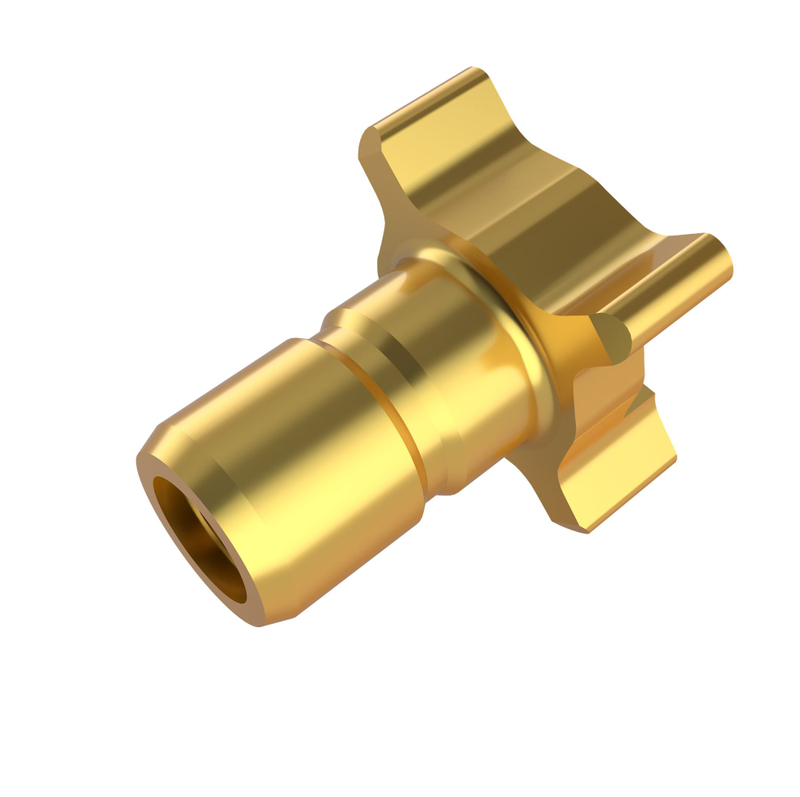

SMB Connector Jack Straight For PCB SMT

SMB connectors (SubMiniature version B) are coaxial RF connectors that were created in the 1960s. SMB connectors are a fraction of the size of SMA connectors. SMB has a snap-on coupling and comes in two impedances: 50 ohms and 75 ohms. SMB Connectors from LenoRF provide outstanding electrical performance from DC to 4 GHz. The SMB connector has a female socket and the SMB jack has a male center pin. low-cost alternative.
  • 60-5161-011-02
  • Female
  • Straight
  • PCB SMT
  • Soldering
  • N/A
  • 60-5161-011-02.pdf
  • 60-5161-011-02.stp
Availability:
Quantity:

Features and Benefits

Various plating options in nickel, gold, and tin lead

Quick connect/disconnect snap on mating reduces installation time

SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force

Applications

Base Stations

Antennas

Radio Boards

PC/LAN

Global Positioning System (GPS)

Instrumentation

Telecommunications

Materials&Electroplating

Conduct

Brass/ Silver  Plating

Insulator

PTFE

Body

Brass /Ternary

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-3GHz

VSWR

≤1.35

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

Barometric Pressure (Altitude)

MIL-STD-202, Method 105, Condition C, 70k Ft.
