Overview
The SMB interface features a snap-on coupling mechanism and is available in 50 ohm configurations. It meets the requirements of MIL-C-39012 and complies with MIL-STD-348 standards. SMB connectors provide broadband performance with low reflection from DC to 4 GHz, with extended capability up to 10 GHz for application vehicle radar (24 GHz, 77 GHz for ADAS),cable TV distribution and headend systems . They are offered in various materials, including die-cast options in non-critical areas, delivering a reliable yet cost-effective solution.
Features
Available with various plating options, including nickel, gold, and tin-lead.
Snap-on mating enables quick connection and disconnection, reducing installation time.
SMB PCB slide-on plugs and jacks allow easy board-to-board mounting with minimal insertion force.
Applications
Base Stations
Instrumentation
Radio Boards
Broadband
cable TV distribution and headend systems
vehicle radar (24 GHz, 77 GHz for ADAS)
studio equipment, satellite uplink/downlink stations

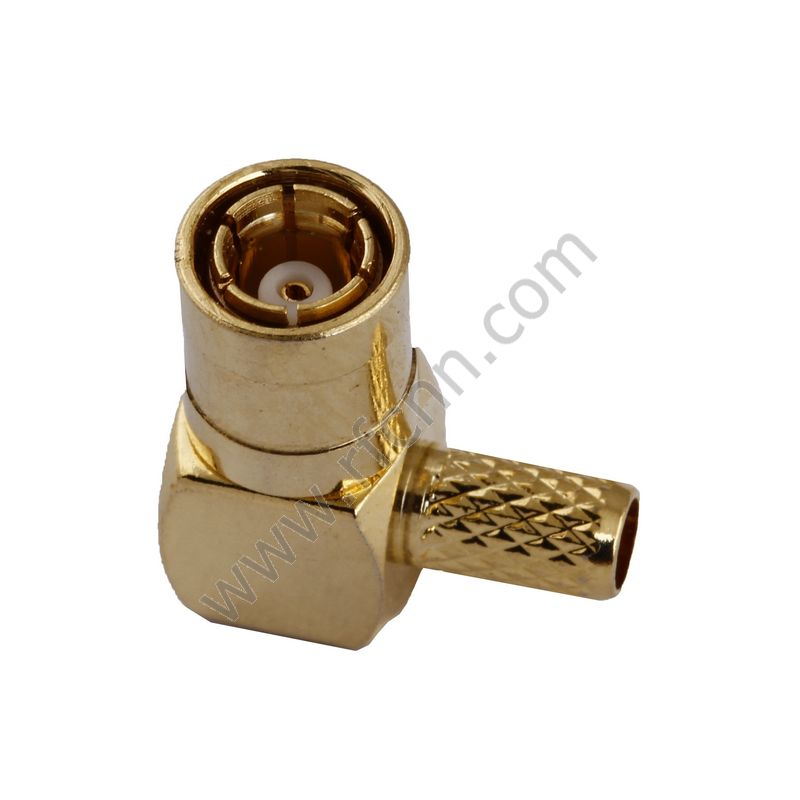

Specification
Cable Type | BT3002 |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Plating | Gold |
| Contact Material | Phosphor bronze |
| Insulator Material | PTFE |
| Contact Termination | Crimp |
| Coupling Mechanism | Push-on |
HS Code | 8636909000 |
Frequency (Max GHz) | 6 |
Gender | Female |
Impedance (Ohms) | 50 |
Size Category | Miniature |
Orientation | Right angle |
Temperature Range | -65 to 165 ° C |
Mating Cycles | 500 Min |
Interface Specification | MIL-STD-348 IEC 60169-10 |
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
Are RF connectors weatherproof?
Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
What is VSWR, and why does it matter?
VSWR (Voltage Standing Wave Ratio) indicates signal reflection. Ideal: 1.0 (perfect match). Lower VSWR means less signal loss and distortion.
What are typical applications of RF connectors?
Telecom (5G, LTE, satellite) Aerospace & defense (radar, avionics, secure comms) Test & measurement (network/spectrum analyzers) Broadcast & video distribution Automotive radar and IoT devices Medical imaging & equipment
