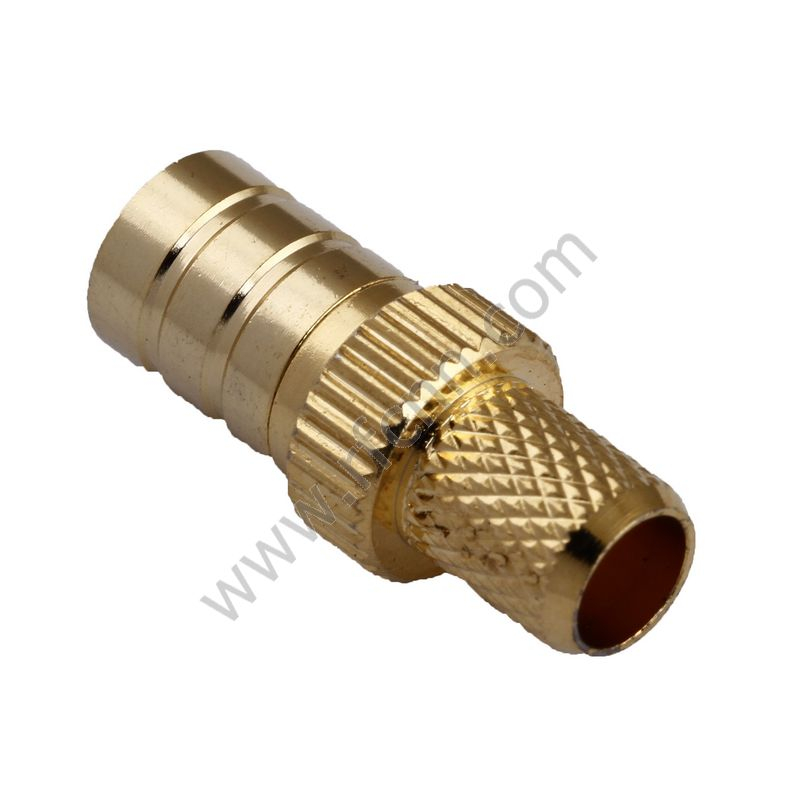

SMB Male Crimp for LMR240 RF Connector

SMB (SubMiniature version B) coaxial RF connectors were developed in the 1960s. SMB connectors are more compact than SMA connectors. SMB feature a snap-on connector and are available in 50 or 75 ohm impedance. LenoRF's SMB Connector delivers exceptional electrical performance from DC to 4 GHz. The SMB jack has a male center pin, while the SMB plug has a female socket. To provide reliable mating performance, we use beryllium for the female socket and contact spring.
  • SMB221-240

  • Male

  • Straight

  • Crimping

  • Crimping

  • LMR240

Availability:
Quantity:

  • Part No SMB221-240
    Description SMB Female Crimp for LMR400 RF Connector
    Connector Series SMB
    Connector TypeMale
    Contact Termination Solder
    Shield Termination Crimp
    Impedance 50 Ohm
    Mounting Type Free Hanging
    Cable Group LMR240
    Fastening Type SNAP ON
    Frequency - Max DC-18GHz
    Body Material Brass
    Body Finish Gold
    Center Contact Material Brass
    Center Contact Finish Gold
    Dielectric Material Polytetrafluorethylene (PTFE)
    Voltage Rating 375V
    Working Temperature -65°C ~ 165°C
