Introduction

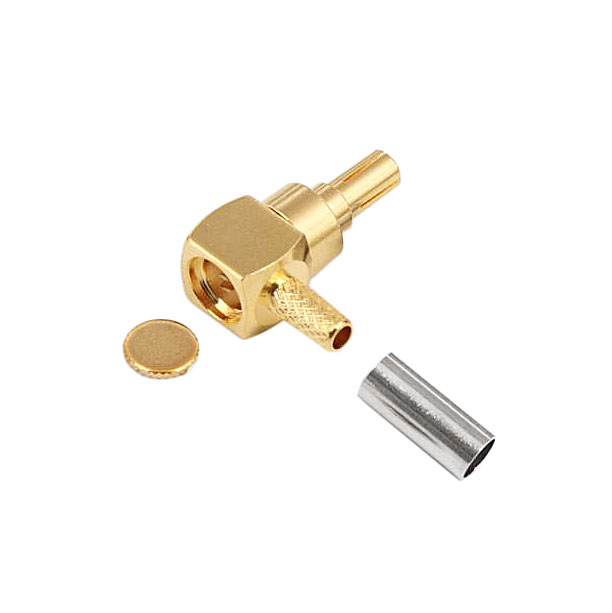

crc9 plug ra crimping for rg174 cable

In the intricate world of RF (Radio Frequency) technology, coaxial connectors play an indispensable role in ensuring efficient signal transmission. Among these connectors, the CRC9 connector occupies a unique niche, primarily utilized in cellular devices, particularly mobile broadband modems. Its main function is to facilitate the connection of an external antenna, enhancing signal reception and overall network performance. This guide aims to provide a comprehensive overview of CRC9 connectors, shedding light on their design, applications, and key distinctions from similar connectors like the TS-9. Additionally, we will delve into the technical specifications that define the CRC9 connector.


Understanding CRC9 Connectors


1. Design and Construction

The CRC9 connector is characterized by its compact and straightforward design. It is often considered an unconventional RF connector because it does not conform to any recognized international standard, nor does it adhere to a proprietary specification. Despite this lack of standardization, the CRC9 connector has found its niche in the cellular device industry, where it serves as a critical component for improving signal connectivity.


2. Technical Specifications

To better comprehend the CRC9 connector's capabilities, it's essential to examine its technical specifications:

Impedance: 50 Ω

Maximum Operating Frequency: 3.00 GHz

Coupling Mechanism: Slide-on/Push-on Coupling

These specifications provide valuable insights into the connector's performance and compatibility with various devices and applications.


CRC9 Female Connector

The CRC9 Female connector is predominantly utilized in Chinese-manufactured cellular devices, with a primary focus on mobile broadband modems. Its physical composition consists of a circular brass housing featuring an outer diameter of 3 mm. This compact size allows for seamless integration into electronic devices, and it is typically attached to the PCB (Printed Circuit Board) using either Surface Mount or End-Launch mounting techniques.


CRC9 Male Connector

In contrast to the controlled manufacture of the CRC9 Female connector, CRC9 Male connectors do not adhere to specific manufacturing standards. However, they generally exhibit a matching 3 mm inner diameter and a slightly larger 3.7 mm outer diameter. CRC9 Male connectors serve various purposes within the realm of RF technology. They can be found as integrated components of 4G LTE external antennas, where they play a vital role in connecting the antenna to the device. Additionally, CRC9 Male connectors can be utilized in interconnecting coaxial cables, ensuring reliable signal transmission between devices.


Differentiating CRC9 from TS-9

One common source of confusion in the realm of RF connectors is the visual similarity between the CRC9 and TS-9 connectors. While they share certain physical characteristics, it is crucial to recognize their incompatibility due to specific design differences.


TS-9 Connector

The TS-9 connector, while visually similar to the CRC9, has distinct differences that render the two connectors incompatible for interchanging. Notably, the TS-9 Female connector possesses a slightly larger outer diameter of 3.5 mm compared to the CRC9's 3 mm outer diameter. This seemingly minor difference in dimensions plays a crucial role in preventing the interchangeability of these connectors.


Applications of CRC9 Connectors

CRC9 connectors find their applications predominantly in the field of cellular technology, offering unique benefits in enhancing signal reception and overall network performance.


1. Mobile Broadband Modems

One of the primary use cases for CRC9 connectors is in mobile broadband modems. These devices are designed to provide high-speed internet access via cellular networks, and the CRC9 connector facilitates the connection of external antennas. By attaching an external antenna, users can significantly improve their modem's signal reception, resulting in enhanced data speeds and network reliability, especially in areas with weak cellular coverage.


2. 4G LTE External Antennas

CRC9 Male connectors are often integrated into 4G LTE external antennas. These antennas are used to boost cellular signals for improved data transmission and network connectivity. The CRC9 Male connector's role in these antennas is pivotal, as it ensures a reliable connection between the antenna and the user's device.


3. Interconnecting Coaxial Cables

In scenarios where interconnecting coaxial cables are required to establish seamless RF connections, CRC9 Male connectors prove to be invaluable. Their compatibility with a range of devices and applications makes them a versatile choice for ensuring reliable signal transmission.


Conclusion

In the ever-evolving landscape of RF technology, the CRC9 connector stands out as an unconventional yet essential component, primarily employed in cellular devices to support external antenna connections. Its unassuming design, coupled with its compatibility with Chinese-manufactured devices, positions it as a critical asset for users seeking to improve their cellular network performance.

While the visual similarity between the CRC9 and TS-9 connectors can lead to confusion, it is vital to recognize their incompatibility due to specific design variations, particularly in outer diameter. Attempting to interchange these connectors can result in connectivity issues and potential damage to equipment.

As the demand for reliable cellular connectivity continues to grow, the CRC9 connector's role in enhancing signal reception and transmission remains vital. Whether integrated into mobile broadband modems, 4G LTE external antennas, or interconnecting coaxial cables, the CRC9 connector plays a crucial part in ensuring seamless communication in an increasingly interconnected world. Its ability to bridge the gap between devices and external antennas makes it an indispensable component in the realm of RF technology, contributing to improved connectivity for users worldwide.
