Introduction
In the dynamic world of radio frequency (RF) technology, connectors play a pivotal role in enabling seamless and reliable signal transmission. Among the diverse range of connectors available, I-PEX MHF (Micro RF Coaxial) connectors stand out as surface mount miniature RF connectors designed and developed by I-PEX. These connectors have been specifically engineered to provide high-frequency performance, covering a frequency range from DC to 6 GHz, with certain variants extending their capabilities up to 9 GHz. Featuring a compact design with a nominal mated height of 2.5 mm max and a small mounting area of 3 x 3.1 mm, these connectors offer versatility and space-saving benefits for a wide range of applications.

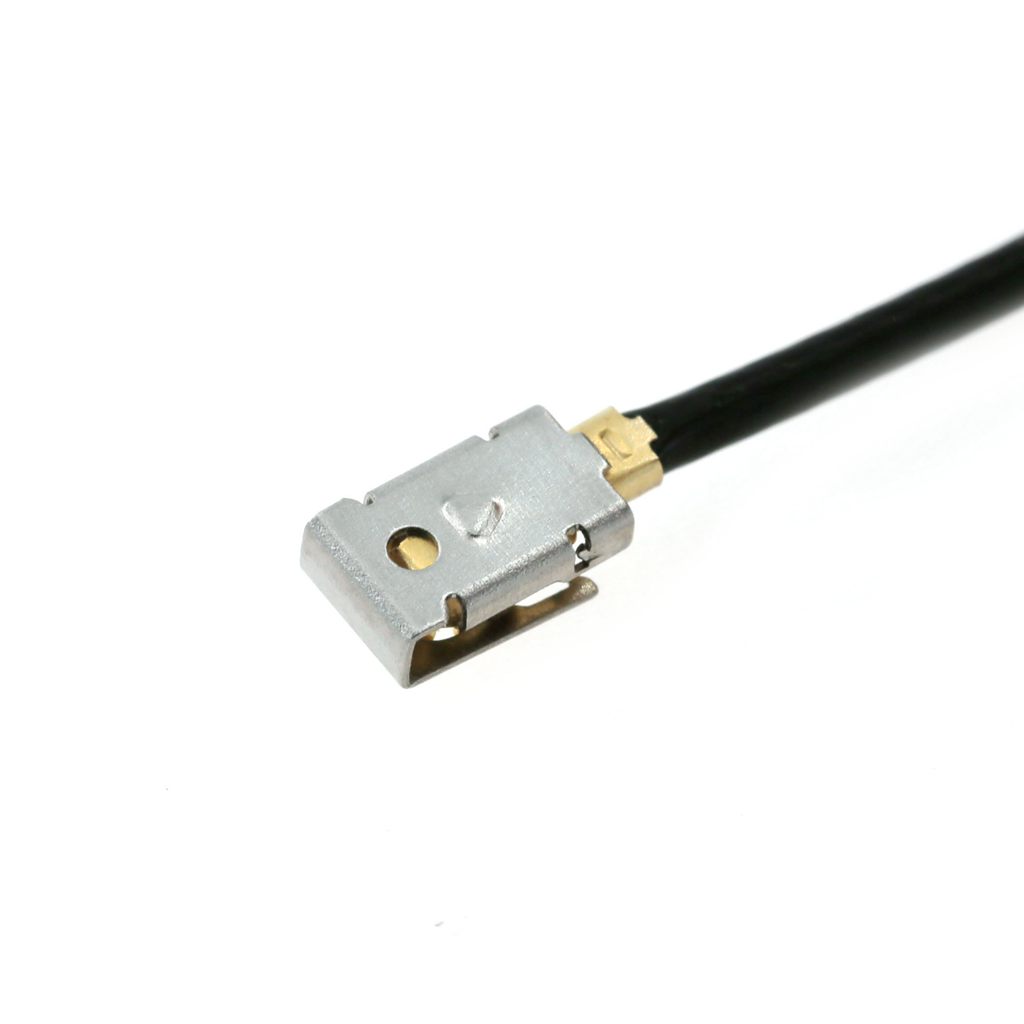

I-PEX Jack Connector

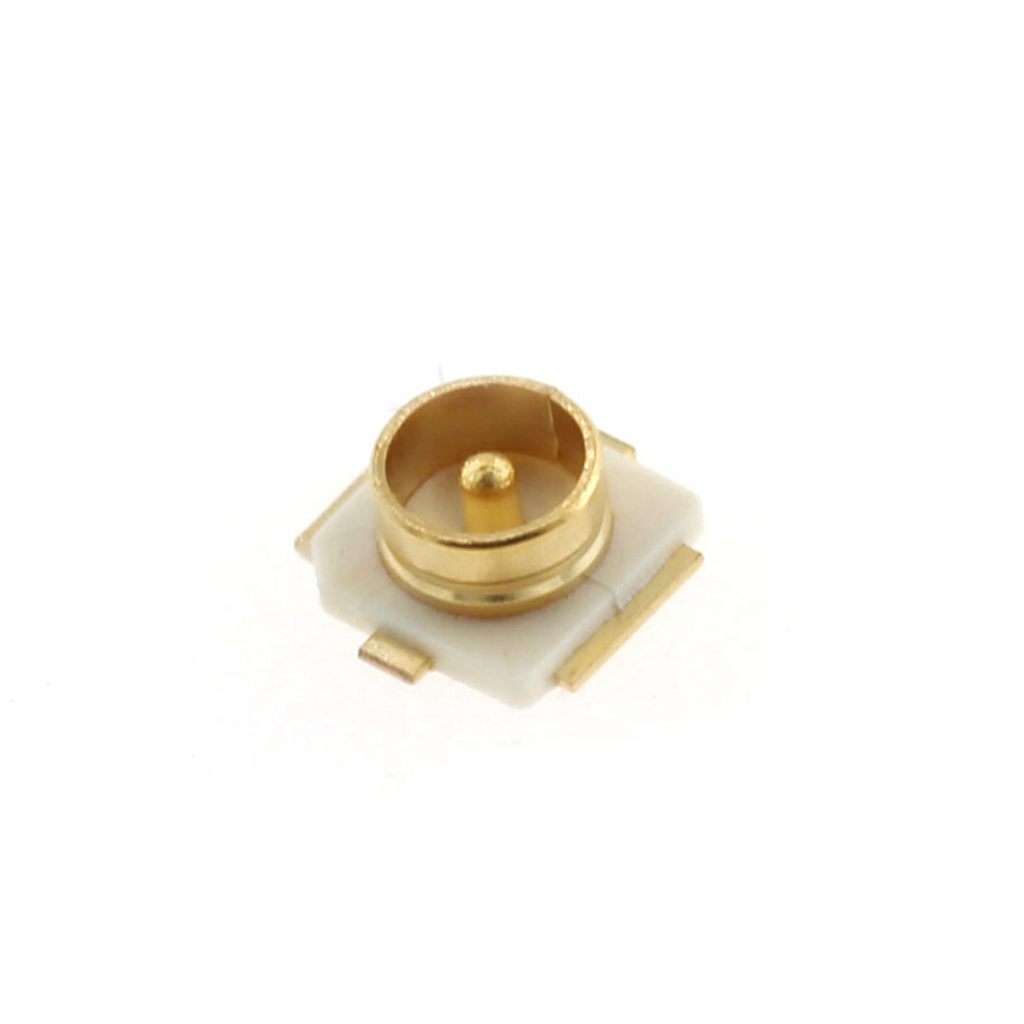

I-PEX Plug Receptacle Connector
I-PEX MHF connectors are characterized by their solderless micro-coax termination technology, known as "i-Fit," which ensures consistent and reliable performance. With a characteristic impedance of 50 ohms, these connectors are designed to meet the rigorous demands of RF applications. In this comprehensive guide, we will explore the world of I-PEX MHF connectors, examining their design, technical specifications, key features, applications across various industries, available variations, and their significance in connecting Wi-Fi antennas to Mini PCI, Mini PCIe, or M.2 WiFi cards in devices such as smartphones, laptops, and embedded systems.
Understanding I-PEX MHF Connectors
1. Design and Construction
I-PEX MHF connectors are surface mount miniature RF connectors, meticulously designed to address the challenges of limited real estate in modern electronic devices. These connectors are engineered to provide a reliable and space-efficient solution for connecting RF components in applications with constrained space requirements.
2. Technical Specifications
To gain a comprehensive understanding of I-PEX MHF connectors, it is essential to delve into their key technical specifications:
Frequency Range: DC to 6 GHz (Extendable up to 9 GHz)
Nominal Mated Height: 2.5 mm max
Mounting Area: 3 x 3.1 mm
Characteristic Impedance: 50 ohms
Termination Technology: Solderless micro-coax termination "i-Fit"
Termination Cable Diameter Options: 1.37 mm, 1.32 mm, 1.13 mm, 1.48 mm, 0.81 mm
Compatible Cable Type: RG178
These specifications define the impressive electrical performance, compact design, solderless termination technology, and cable diameter options available with I-PEX MHF connectors, making them a versatile choice for RF connectivity in space-constrained applications.
Key Features of I-PEX MHF Connectors
I-PEX MHF connectors offer a range of key features that make them suitable for high-frequency applications with limited space requirements:
1. High-Frequency Performance
With a frequency range spanning from DC to 6 GHz (extendable up to 9 GHz), I-PEX MHF connectors excel in high-frequency applications, ensuring reliable signal transmission and reception in demanding RF environments.
2. Solderless Micro-Coax Termination "i-Fit"
I-PEX MHF connectors feature innovative solderless micro-coax termination technology, known as "i-Fit." This technology ensures consistent and reliable performance, simplifying the connector assembly process.
3. Easy Removal
These connectors are designed for ease of removal, facilitating maintenance and component replacement when necessary. Proper extraction tools can be used to remove the connectors without damaging the components.
4. Versatile Termination Cable Options
I-PEX MHF connectors can be terminated with ultra-fine coaxial cables with varying diameters, including 1.37 mm, 1.32 mm, 1.13 mm, 1.48 mm, and 0.81 mm. They are also compatible with RG178 cable options, providing flexibility in connecting to various RF components and devices.
Applications of I-PEX MHF Connectors
I-PEX MHF connectors find applications across diverse industries, owing to their compact design, high-frequency capabilities, and solderless termination technology. Some notable applications include:
1. Smartphones
I-PEX MHF connectors are commonly used inside smartphones to connect the Wi-Fi antenna to Mini PCI, Mini PCIe, or M.2 WiFi cards. Their space-saving design and reliable performance contribute to the seamless operation of Wi-Fi connectivity in these devices.
2. Laptops
In laptops, I-PEX MHF connectors play a crucial role in ensuring efficient Wi-Fi connectivity. Their compact form factor and high-frequency capabilities make them ideal for use in these portable computing devices.
3. Embedded Systems
Embedded systems often have limited space for RF components. I-PEX MHF connectors provide a space-efficient solution for connecting Wi-Fi antennas to Mini PCI, Mini PCIe, or M.2 WiFi cards, contributing to the compact design of these systems.
4. Consumer Electronics
These connectors can be found in various consumer electronics, including tablets, smartwatches, and other devices requiring reliable RF connectivity in a compact form factor.
Available Variations
I-PEX MHF connectors have evolved to offer a range of variations to meet specific requirements. Some of the available variations include:
MHF37: Designed to address the demands of specific applications.
MHF II/MHF2: The second generation of MHF connectors, offering enhanced performance and versatility.
MHF III/MHF3: The third generation of MHF connectors, featuring further improvements in performance and functionality.
MHF IV/MHF4: The fourth generation of MHF connectors, providing advanced options for RF connectivity.
Termination Options: I-PEX MHF connectors can be terminated with cables of various diameters, including 1.37 mm, 1.32 mm, 1.13 mm, 1.48 mm, 0.81 mm, and RG178.
Conclusion
I-PEX MHF connectors, with their compact design, high-frequency capabilities, solderless micro-coax termination technology, and versatile cable options, have established themselves as indispensable components in the world of RF technology. Their significance in connecting
