What is Propagation Velocity Of Coaxial Cable

Introduction

The Velocity of Propagation (Vp) in electrical cables is a fundamental concept that plays a crucial role in the transmission of electrical signals. It represents the speed at which an electrical signal can propagate through a cable in comparison to the speed of light. In this extensive exploration, we will delve into the intricacies of Vp, its significance in the realm of telecommunications and electronics, and how it is calculated using the dielectric constant of the cable's dielectric material.

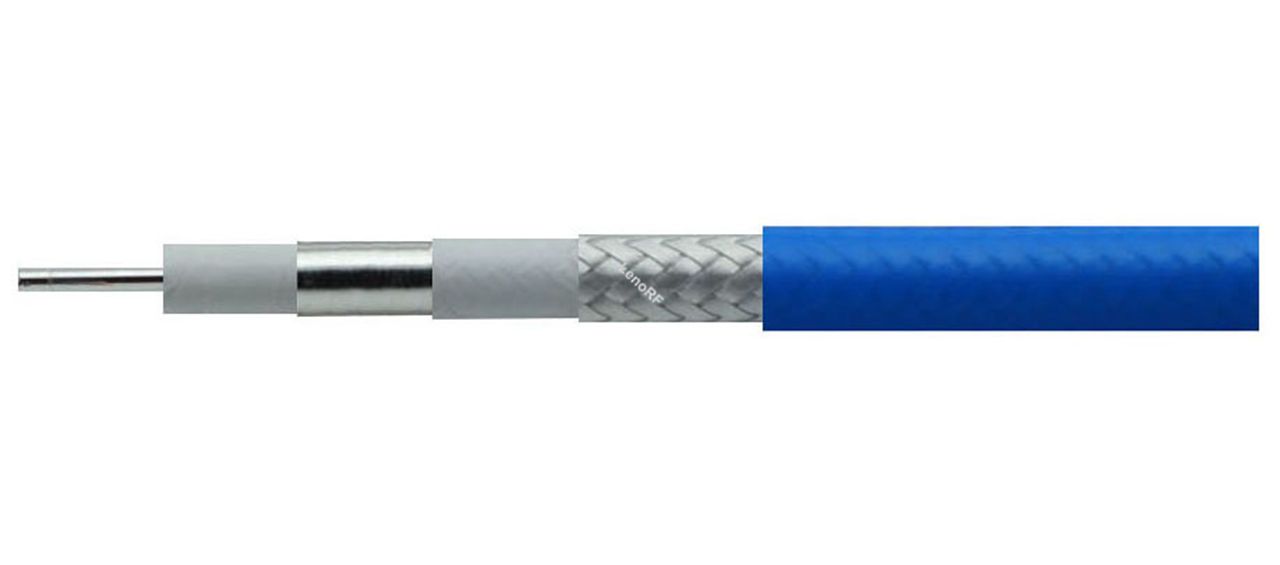

Understanding Velocity of Propagation (Vp)

To grasp the concept of Vp, it is essential to start with a basic understanding of how electrical signals travel. In a vacuum, the speed of light is approximately 299,792,458 meters per second (m/s). Therefore, in this context, the velocity of propagation is considered to be 100% or 1, depending on how it is represented. Simply put, signals travel at the speed of light in a vacuum.

However, when electrical signals traverse through a medium other than a vacuum, their speed is affected. This change in speed is primarily determined by the properties of the medium, particularly its dielectric constant (ϵ). The dielectric constant, also known as the relative permittivity, characterizes how a material responds to an electric field. In the context of electrical cables, the dielectric constant of the material used as insulation or the dielectric medium plays a pivotal role in determining the Vp of the cable.

Calculating Velocity of Propagation

The Velocity of Propagation (Vp) of a cable can be calculated using the following formula:

Vp=c/√ϵ

Where:

• Vp is the Velocity of Propagation.

• c is the speed of light in a vacuum (approximately299,792,458m/s).

• ϵ is the dielectric constant of the dielectric material used in the cable.

This formula reveals the direct relationship between the dielectric constant of the cable's insulating material and the Vp of the cable. As the dielectric constant changes, the Vp of the cable will also change accordingly. This fundamental relationship underpins the functionality of various types of cables and their applications in different contexts.

Dielectric Materials and Velocity Factors

In practice, different dielectric materials are used in cables, each possessing its own dielectric constant and, subsequently, its unique Velocity Factor. Below is a table summarizing some of the most common dielectric materials used in coaxial cables, along with their dielectric constants and corresponding Velocity Factors:

Dielectric Material

As seen in the table, the dielectric constants of these materials vary significantly. Consequently, the Velocity Factors also exhibit considerable differences. For instance, air, with a dielectric constant very close to that of a vacuum, has a Velocity Factor very close to 1. On the other hand, materials like PVC with higher dielectric constants result in substantially lower Velocity Factors, indicating slower signal propagation within the cable.

Significance of Velocity of Propagation

The Velocity of Propagation is a critical parameter in the design and performance of electrical and telecommunications systems. Understanding Vp is essential for engineers and technicians working with cables and signal transmission, as it directly impacts signal timing, phase relationships, and overall system performance. Here are some key aspects of Vp's significance:

1. Signal Timing and Synchronization: In applications where precise timing and synchronization are crucial, such as high-frequency data transmission and telecommunications networks, knowing the Vp of the cable is essential. It helps ensure that signals arrive at their destination with the correct timing, preventing data errors and signal distortion.

2. Antenna Design: In radio frequency (RF) and microwave systems, antenna design and performance are influenced by the Vp of the coaxial cables used. Properly matching the Velocity Factor of cables to the operating frequency is critical for minimizing signal loss and optimizing antenna performance.

3. Impedance Matching: Impedance matching is essential for minimizing signal reflections and maximizing power transfer in electrical circuits. The Velocity Factor plays a significant role in determining the characteristic impedance of a cable, which must be matched to the system's impedance for efficient signal transmission.

4. Cable Length Considerations: When dealing with long cable runs, such as those in cable television (CATV) or fiber optic networks, the Vp affects signal propagation delay. This delay can impact the overall system's functionality and may require compensation or correction in some cases.

5. Coaxial Cable Selection: Different applications require different cable types with specific dielectric materials to achieve the desired Vp. Choosing the right cable based on Vp is crucial to meet the performance requirements of the application.

Conclusion

The Velocity of Propagation (Vp) is a fundamental property of electrical cables that determines the speed at which electrical signals propagate through the cable in comparison to the speed of light in a vacuum. It is a critical parameter in various applications, including telecommunications, electronics, and RF systems, where signal timing, impedance matching, and overall system performance are of utmost importance.

The relationship between Vp and the dielectric constant of the cable's insulating material is described by a simple formula, enabling engineers and technicians to calculate Vp for different cable designs. Furthermore, the choice of dielectric material in a cable has a direct impact on its Velocity Factor, making it essential to select the appropriate cable type for specific applications.

In conclusion, a comprehensive understanding of Vp is essential for anyone working with electrical cables and signal transmission systems, as it underpins the reliability and performance of modern communication networks and electronic devices.
