Introduction

In the realm of modern telecommunications, RF (Radio Frequency) coaxial connectors play a crucial role in facilitating seamless communication between devices. Among the myriad of connectors available, the TS-9 connector stands out as an uncommon yet essential component, primarily found in cellular devices, including 3G and 4G mobile broadband modems. This connector serves the vital purpose of enabling the connection of an external antenna to enhance signal reception and transmission. However, it's worth noting that the TS-9 connector exists in a unique space, as it neither adheres to any defined international standard nor follows a proprietary specification. In this comprehensive guide, we will delve into the intricacies of the TS-9 connector, exploring its design, applications, and its important distinctions from similar connectors like the CRC-9.

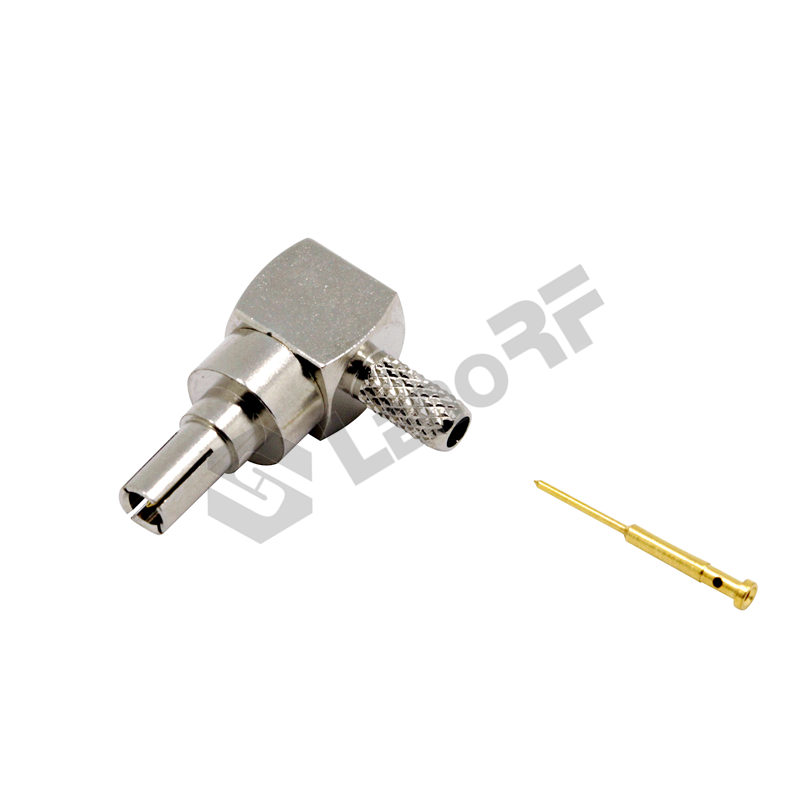

TS9 CRC right angle for RG178

Understanding the TS-9 Connector

Design and Construction

At its core, the TS-9 connector is a relatively simple yet indispensable component in the world of RF connectors. It features a circular brass housing with an outer diameter of 3.5 mm, giving it a compact and unassuming appearance. The TS-9 connector's design enables it to be attached to a PCB (Printed Circuit Board) using either Surface Mount or End-Launch mounting techniques, offering flexibility in integration within electronic devices.

TS-9 Female Connector

The TS-9 Female connector, characterized by its circular brass housing, plays a pivotal role in connecting external antennas to cellular devices. This connector is often found in wireless broadband devices manufactured by companies such as Netgear and Sierra Wireless. Its compatibility with these devices makes it a sought-after choice for users seeking to improve their cellular signal reception and overall network performance.

TS-9 Male Connector

In contrast to the controlled manufacture of the TS-9 Female connector, the TS-9 Male connector is more diverse in its application. It is identified by its 3.5 mm inner diameter and a slightly larger 3.8 mm outer diameter. The male connector is frequently used in interconnecting coaxial cables, serving as a crucial link in the transmission chain. Additionally, it can occasionally be found on small, direct-connecting external antennas, offering versatility in its usage.

Differentiating TS-9 from CRC-9

One potential source of confusion in the world of RF connectors is the visual similarity between the TS-9 and CRC-9 connectors. Despite their resemblances, these connectors are not interchangeable due to significant differences in their specifications.

CRC-9 Connector

The CRC-9 connector shares similar dimensions with the TS-9, with a 3.0 mm outer diameter for the female board connector. However, this seemingly minor difference in outer diameter is a critical factor that renders the CRC-9 and TS-9 connectors incompatible. Attempting to use one in place of the other can result in poor connectivity, signal loss, and potential damage to the connectors or devices involved.

Applications of the TS-9 Connector

The TS-9 connector's unique characteristics make it an ideal choice for specific applications in the field of telecommunications and wireless technology.

Cellular Modems and Routers

One of the primary use cases for TS-9 connectors is in cellular modems and routers. These devices are designed to provide high-speed internet access via cellular networks, and the TS-9 connector allows users to connect external antennas to improve signal reception. This is especially beneficial in areas with weak cellular coverage, as it can significantly enhance data speeds and network reliability.

Mobile Hotspots

Mobile hotspots, which enable users to create a Wi-Fi network using a cellular data connection, often incorporate TS-9 connectors. This allows users to enhance the hotspot's performance by connecting high-gain external antennas, resulting in better coverage and faster internet speeds, particularly in remote or rural areas.

M2M (Machine-to-Machine) Devices

The TS-9 connector is also found in M2M devices, which are designed for automated communication between machines. These devices, such as industrial sensors and remote monitoring equipment, rely on cellular networks for data transmission. By utilizing TS-9 connectors, M2M devices can be optimized for connectivity, ensuring reliable data exchange.

Portable 4G/5G Antennas

For users who require portable solutions to boost their cellular signal, TS-9 connectors can be found on small, direct-connecting external antennas. These antennas are designed for ease of use and can be attached directly to compatible devices, such as USB modems or mobile hotspots, offering an immediate improvement in signal strength.

Conclusion

In the world of RF coaxial connectors, the TS-9 connector stands as a distinctive and essential component, primarily used in cellular devices to support external antenna connections. Its simplicity in design and widespread use in wireless broadband devices make it a valuable asset for individuals and organizations seeking to enhance their cellular network performance.

Despite its visual similarity to the CRC-9 connector, it is crucial to understand that the TS-9 connector is not interchangeable with the CRC-9 due to differences in their outer diameters. Attempting to use one in place of the other can lead to connectivity issues and potential damage to equipment.

As technology continues to advance and the demand for reliable cellular connectivity grows, the TS-9 connector's role in improving signal reception and transmission remains significant. Whether integrated into cellular modems, mobile hotspots, M2M devices, or portable antennas, the TS-9 connector plays a pivotal role in ensuring that users stay connected in an increasingly interconnected world.
