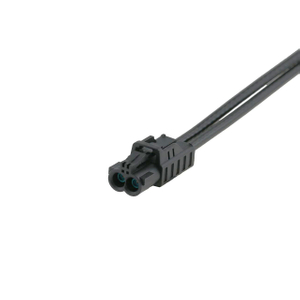

What Is Fakra RF Connector

Views: 0     Author: Uly Hong     Publish Time: 2023-09-07      Origin: LenoRF

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button



Introduction


Impedance

50 Ω


Maximum Operating Frequency

6.00 GHz


Coupling Mechanism

Snap-on Coupling


Interface Standards

ISO 20860-1

ISO 20860-2

SAE USCAR 17

SAE USCAR 18

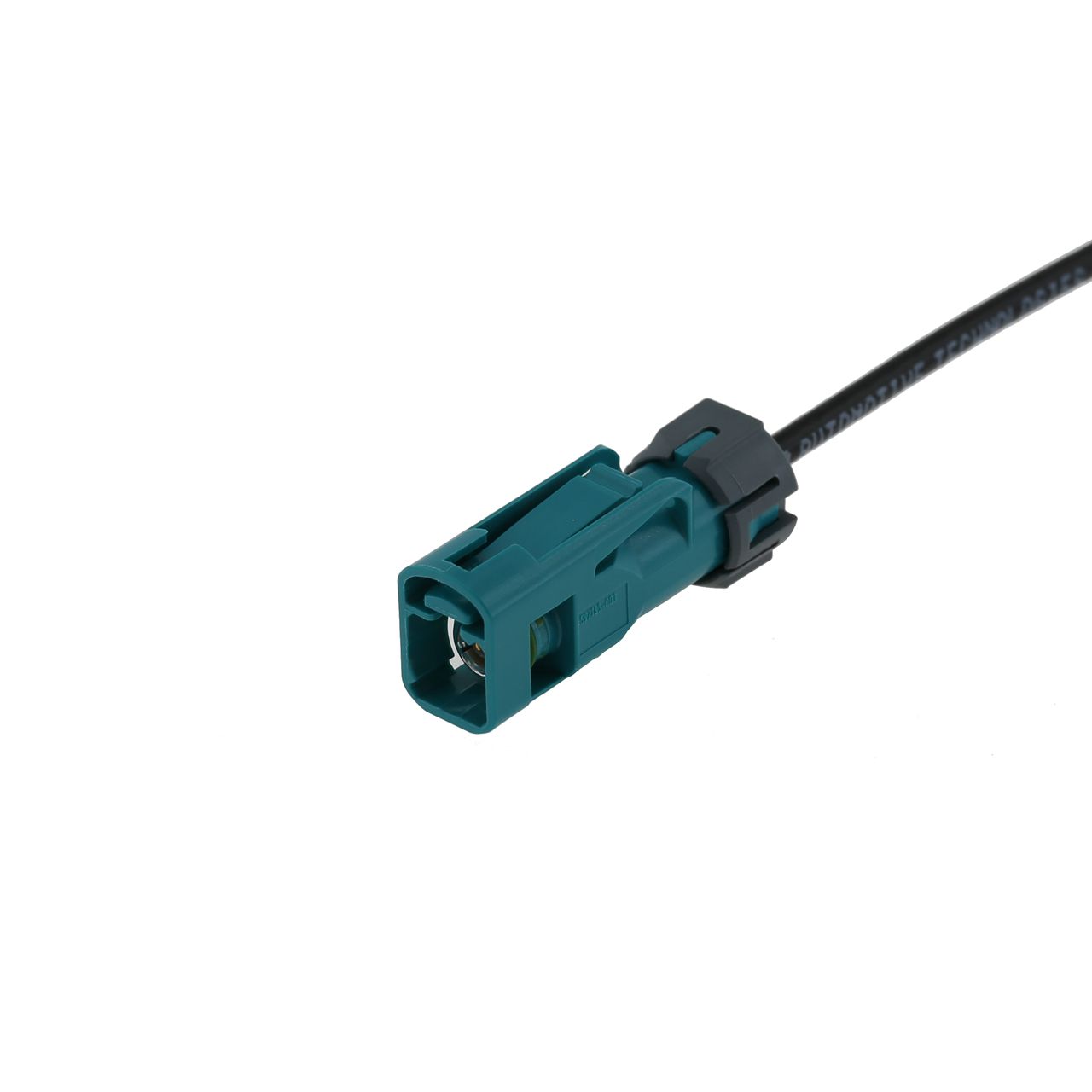

fakra cable

In the ever-evolving landscape of the automotive industry, the need for standardized communication systems has become paramount. One such innovation is the FAKRA interface standard, abbreviated from "FAchKReis Automobile." This standard incorporates an SMB RF connector and color-coded housing, facilitating the seamless integration of complex communication and RF systems in modern vehicles. These systems encompass a wide array of functionalities, ranging from DSRC (Dedicated Short-Range Communication) and GPS to WiFi, cellular connectivity, keyless entry, remote start, proximity sensors, and more. The FAKRA standardization is carried out under the purview of both USCAR (United States Council for Automotive Research) and ISO (International Organization for Standardization) 20860 standards. In this comprehensive exploration, we will delve into the history, evolution, applications, variations, and the significance of FAKRA in modern vehicles.


History of FAKRA

The FAKRA interface standard has undergone significant transformations over the years, with each successive improvement marking a new generation of this technology. These generational changes are pivotal in understanding the advancement of FAKRA connectors and their role in modern vehicles:

Generation 1.0: The initial iteration of FAKRA connectors featured a machined body and contact, supplied with an unassembled housing. Manufacturing processes were predominantly hand-tooled during this phase.

Generation 2.0: Building upon the first generation, FAKRA connectors in this iteration boasted a die-cast body, machined contact, and pre-assembled housing. Although there were improvements in design and assembly, hand tooling still played a significant role in production.

Generation 2.5: Generation 2.5 introduced further refinements, including a die-cast body, stamped contact, and pre-assembled housing. The transition towards semi-automated tooling began, streamlining the manufacturing process.

Generation 3.0: This generation retained the die-cast body and stamped contact while further enhancing the production process with automated tooling. Despite these advancements, some degree of hand tooling remained in use.

Generation 4.0: The latest and most advanced generation of FAKRA connectors, Generation 4.0, featured fully stamped body, contact, and sleeve components supplied unassembled. Production was fully automated, representing a significant leap in efficiency and quality control.


Applications of FAKRA Interface Standard

The FAKRA interface standard assigns specific applications to distinct color codes, simplifying the identification and integration of connectors into vehicle systems. Although the number of communication systems in modern vehicles often surpasses the available color codes, these assignments serve as a valuable guideline for technicians and engineers. The range of applications that FAKRA connectors support is extensive, encompassing critical functionalities within vehicles:

  1. GPS (Global Positioning System): FAKRA connectors are instrumental in ensuring reliable GPS connectivity, enabling accurate navigation and location-based services in vehicles.

  2. DSRC (Dedicated Short-Range Communication): DSRC systems, crucial for vehicle-to-vehicle and vehicle-to-infrastructure communication, rely on FAKRA connectors to establish seamless connections.

  3. WiFi: As the demand for in-car WiFi connectivity grows, FAKRA connectors play a pivotal role in facilitating wireless internet access for passengers and various vehicle systems.

  4. GVIF (Generic Vehicle Interface): FAKRA connectors are integral in supporting GVIF, a standard for transmitting multimedia data between in-car entertainment systems and displays.

  5. Collision Avoidance: Safety features like collision avoidance systems depend on FAKRA connectors to facilitate rapid data transmission between sensors and control units, enhancing vehicle safety.

  6. LVDS (Low Voltage Differential Signaling): FAKRA connectors are utilized in LVDS applications, contributing to high-speed data transfer between components such as cameras and displays.

  7. Adaptive Cruise Control: FAKRA connectors are a key component in adaptive cruise control systems, allowing vehicles to adjust their speed based on the distance to the vehicle in front.

  8. Remote Technologies: FAKRA connectors support various remote technologies, including keyless entry and remote start systems, enhancing convenience and security.


Variations of FAKRA Connectors

To accommodate the diverse range of applications within modern vehicles, there are 14 distinct mechanical interfaces for FAKRA connectors, each associated with a specific color code. This color-coding system simplifies the installation and maintenance of these connectors. Below is a comprehensive list of the variations of FAKRA connectors and their corresponding color codes:

  1. Black: AM/FM Radio

  2. Violet: Remote Keyless Entry

  3. Brown: Cellular, LTE, and Bluetooth

  4. Green: DSRC (Dedicated Short-Range Communication)

  5. Yellow: GPS

  6. White: Extended Cellular, LTE, and Bluetooth

  7. Red: AM/FM Radio

  8. Blue: SDARS (Satellite Digital Audio Radio Service)

  9. Beige: SDARS (Satellite Digital Audio Radio Service)

  10. Ivory: SDARS (Satellite Digital Audio Radio Service)

  11. Orange: Cellular, LTE, and Bluetooth

  12. Purple: LVDS (Low Voltage Differential Signaling)

  13. Pink: GVIF (Generic Vehicle Interface)

  14. Light Green: LVDS (Low Voltage Differential Signaling)

Each of these color-coded variations corresponds to a specific application, allowing for easy identification and integration within the complex network of communication systems found in modern vehicles.


Significance of FAKRA in Modern Vehicles

The FAKRA interface standard has become an indispensable component of modern vehicles, addressing the intricate communication requirements demanded by today's automotive technology. Its significance can be highlighted in several key aspects:

  1. Standardization: FAKRA offers a standardized approach to connecting communication and RF systems in vehicles. This standardization streamlines production processes, ensures compatibility, and reduces costs for automakers and suppliers.

  2. Reliability: FAKRA connectors are known for their reliability and robustness, which are essential attributes for vehicle systems that must operate flawlessly in various environmental conditions.

  3. Efficiency: The evolution of FAKRA connectors, from manual assembly to fully automated production, has significantly improved manufacturing efficiency, reducing the likelihood of errors and enhancing consistency.

  4. Safety: FAKRA connectors are integral to the operation of safety systems such as collision avoidance and adaptive cruise control, contributing to enhanced road safety for drivers and pedestrians.

  5. Convenience: Features like keyless entry, remote start, and in-car WiFi, made possible by FAKRA connectors, enhance the convenience and user experience of modern vehicles.

  6. Future-Proofing: FAKRA connectors continue to adapt to emerging technologies, ensuring that vehicles can incorporate the latest communication systems without major overhauls.

  7. Compatibility: The color-coded system simplifies installation and maintenance, making it easier for technicians to identify and work with FAKRA connectors.


Conclusion


The FAKRA interface standard has undergone a remarkable evolution from its early generations to become a cornerstone of modern vehicles. Its role in supporting an extensive array of communication and RF systems, ranging from GPS and DSRC to WiFi and adaptive cruise control, cannot be overstated. The standardization, reliability, efficiency, and convenience offered by FAKRA connectors make them an indispensable component of the automotive industry, contributing to safer, more efficient, and connected vehicles. As automotive technology continues to advance, FAKRA will remain at the forefront, adapting to the ever-changing landscape of vehicle communication systems.
