Overview
The FAKRA (Fachkreis Automobil, "specialist group automobile") connector is a specialized RF connector designed primarily for automotive applications. It standardizes RF connections for telematics, infotainment, safety, and communication systems within vehicles. Developed in compliance with the ISO 20860-1 and 20860-2 standards, FAKRA connectors ensure reliable high-frequency signal transmission in environments subject to vibration, temperature variations, and mechanical stress.
Features
Frequency Range: Typically up to 6 GHz, supporting high-data-rate applications such as GPS, LTE, Wi-Fi, Bluetooth, and SDARS.
Design: Uses a SMB-style coaxial interface housed in a plastic shell with color coding and mechanical keying to prevent mismating.
Color & Coding: Over a dozen mechanical codes and color options allow clear identification for specific functions (e.g., GPS, AM/FM, cellular, camera systems).
Durability: Engineered to withstand harsh automotive environments, with secure locking mechanisms and vibration resistance.

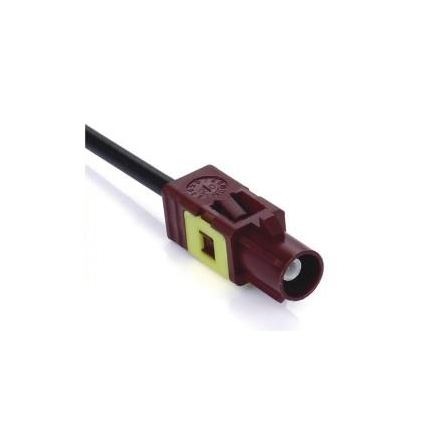

Specification
Code: D
Gender: Male
Color: Violet
Connector Body Style: Straight
| Material: |
| Body | Brass/Zinc alloy,Ni-Plated |
| Socket | Beryllium-copper,Gold-Plated |
| Pin Contact | Brass |
| Insulator | PTFE |
| Crimp Ferrule | Brass,Ni-Plated |
| O-ring | Beryllium-Copper |
| Shell | PA66+30%GF |
| Electric Performance: |
| Interface | ISO 20860-1, SAE/USCAR-18 |
| Impedance | 50 Ω |
| Frequency Range | DC - 6GHz |
| Withstanding Voltage | 1000V(RMS) |
| Center contact resistance | ≤ 5 MΩ |
| Outer contact resistance | ≤ 5 MΩ |
| Insulation | ≥1,000MΩ |
| VSWR | DC - 2GHz<1.2 |
| Mechanical: |
| Assembly | Locked |
| Durability | ＞500cycles |
| Temperature | -40 ~ +85°C |
| Cable: |
| RG174,RG316,RG58,RTK-031,RG179,1.5DS |
| Applications : |
Cameras
Sensors for detection, evaluation and reaction
High Performance Computing
Radio antenna
GPS telematics or navigation
Infotainment & television
Mobile communication
RF bluetooth / WLAN applications
Radio frequency remote control for keyless entry
Vehicle auxiliary heating |
|
|
|
|
|
|
|
|
|
| Fakra Code System: |
| Code | Color | RAL No | Application |
| A | Black | 9005 | Radio without phantom supply |
| B | White | 9001 | Radio with phantom supply |
| C | Light Blue | 5005 | GPS:Telematics or Navigation |
| D | Violet | 4004 | GSM Cellular phone |
| E | Green | 6002 | TV1 |
| F | Brown | 8011 | TV2 |
| G | Gray | 7031 | Remote control keyless engry |
| H | Pink | 4003 | GPS:Telematics or Navigation |
| J | Beige | 1001 | Radio controlled packing heating |
| K | Curry | 1027 | Radio with IF |
| L | Yellow Green | 3002 | Not Defined |
| M | Orange | 2003 | Not Defined |
| O | Light Green | 6019 | Not Defined |
| Z | Water Blue | 5021 | Neutral coding |
![Fakra Jack code outline]()
![fakra plug code outline]()
