Overview
The FAKRA (Fachkreis Automobil, "specialist group automobile") connector is a specialized RF connector designed primarily for automotive applications. It standardizes RF connections for telematics, infotainment, safety, and communication systems within vehicles. Developed in compliance with the ISO 20860-1 and 20860-2 standards, FAKRA connectors ensure reliable high-frequency signal transmission in environments subject to vibration, temperature variations, and mechanical stress.
Features
Frequency Range: Typically up to 6 GHz, supporting high-data-rate applications such as GPS, LTE, Wi-Fi, Bluetooth, and SDARS.
Design: Uses a SMB-style coaxial interface housed in a plastic shell with color coding and mechanical keying to prevent mismating.
Color & Coding: Over a dozen mechanical codes and color options allow clear identification for specific functions (e.g., GPS, AM/FM, cellular, camera systems).
Durability: Engineered to withstand harsh automotive environments, with secure locking mechanisms and vibration resistance.
Specification

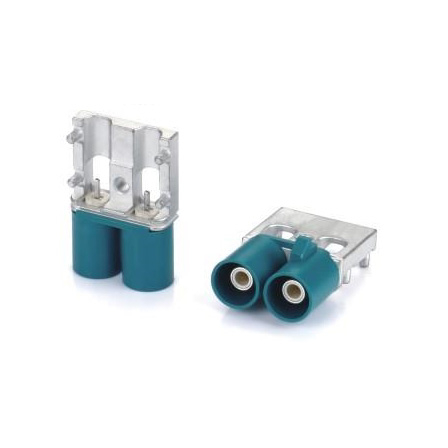

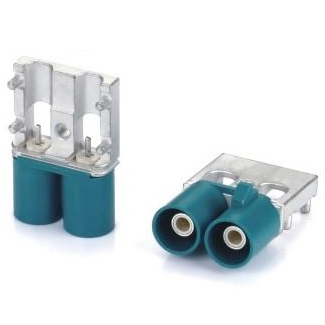

Code: C
Gender: Double Male
Color: Blue
Connector Body Style: Right Angle
Apply to: GPS:Telematics or Navigation
| Material: |
| Body | Brass/Zinc alloy,Ni-Plated |
| Socket | Beryllium-copper,Gold-Plated |
| Pin Contact | Brass |
| Insulator | PTFE |
| Crimp Ferrule | Brass,Ni-Plated |
| O-ring | Beryllium-Copper |
| Shell | PA66+30%GF |
| Electric Characteristic: |
| Interface | ISO 20860-1, SAE/USCAR-18 |
| Impedance | 50 Ω |
| Frequency Range | DC - 6GHz |
| Withstanding Voltage | 1000V(RMS) |
| Center contact resistance | ≤ 5 MΩ |
| Outer contact resistance | ≤ 5 MΩ |
| Insulation | ≥1,000MΩ |
| VSWR | DC - 2GHz<1.2 |
| Mechanical: |
| Assembly | Locked |
| Durability | ＞500cycles |
| Temperature | -40 ~ +85°C |
| Cable: |
| RG174,RG316,RG58,RTK-031,RG179,1.5DS |
Applications : |
Cameras
Sensors for detection, evaluation and reaction
High Performance Computing
Radio antenna
GPS telematics or navigation
Infotainment & television
Mobile communication
RF bluetooth / WLAN applications
Radio frequency remote control for keyless entry
Vehicle auxiliary heating |
|
|
|
|
|
|
|
|
|
Fakra Code System: |
| Code | Colors |
| A | Black |
| B | White |
| C | Blue |
| D | Bordeaux-Violet |
| E | Green |
| F | Brown |
| G | Grey |
| H | Violet |
| I | Beige |
| K | Curry |
| L | Carmine Red |
| M | Pastel Orange |
| N | Pastel Green |
| Z | Waterblue |
![Fakra Jack code outline]()
![fakra plug code outline]()
FAQ
Sample Delivery Time
Regular models require 15 days, while some complex connectors require 25 days.
Sample Fee
Most RF connectors are CNC-machined parts and do not require mold-making.
However, each part needs to be fine-tuned on the CNC machine. Typically, a single sample costs $200.
This fee will be refunded after a 5K bulk order.
Guarantee
Brass RF connectors come with a one-year warranty.
Stainless steel connectors come with a three-year warranty.
The lifespan also depends on the contact material beryllium contacts offer better durability.
ROHS & REACH Compliance
Our products fully comply with ROHS & REACH regulations.
Does LENORF Offer Military-Grade Products?
Yes. We are honored to provide military-grade products with exceptionally stable quality.
MOQ (Minimum Order Quantity)
Regular connectors: 500 PCS
Adapters: 100 PCS
Military connectors: 100 PCS
Materials
Common materials include:
Body: Brass, stainless steel
Insulator: PTFE, PEEK
Contacts: Brass, phosphor bronze, beryllium copper
Other: Aluminum, titanium alloy
What is impedance, and why is 50 Ω or 75 Ω important?
Impedance matching prevents signal reflection and power loss. 50 Ω: Standard for RF communication, test equipment, aerospace, defense. 75 Ω: Standard for broadcast, video, and cable TV applications.
What materials are RF connectors made of?
Body: Brass, stainless steel, or beryllium copper (with nickel, gold, or silver plating). Insulator: PTFE, PE, or advanced low-loss dielectrics. Contacts: Gold-plated brass or beryllium copper for low resistance and durability.
Are RF connectors weatherproof?
Some RF connectors are designed with gaskets and sealing (e.g., N-type, 4.3-10) for outdoor telecom, antennas, and harsh environments. Indoor lab connectors (e.g., SMA, BNC) are usually not weatherproof unless specified.
What’s the difference between male and female RF connectors?
Male: Has a center pin and usually an outer thread or bayonet. Female: Has a receptacle (socket) for the center pin and matching thread. Some connectors (like SMA) can be confusing because “reverse polarity” (RP-SMA) swaps pin/socket configuration.
