FKC-007
Male
Straight
Crimping
Crimping
Availability: | |
---|---|
Quantity: | |

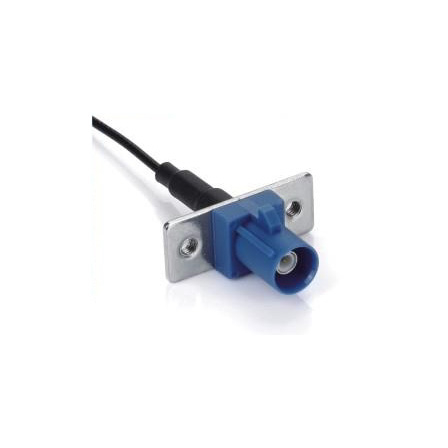

FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly and provides a mechanical key feature along with a visual color code to differentiate between applications. FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered.
Code: C
Gender: Male
Color: Blue
Connector Body Style: Straight
Material: | |||
Body | Brass/Zinc alloy,Ni-Plated | ||
Socket | Beryllium-copper,Gold-Plated | ||
Pin Contact | Brass | ||
Insulator | PTFE | ||
Crimp Ferrule | Brass,Ni-Plated | ||
O-ring | Beryllium-Copper | ||
Shell | PA66+30%GF | ||
Electric Performance: | |||
Interface | ISO 20860-1, SAE/USCAR-18 | ||
Impedance | 50 Ω | ||
Frequency Range | DC - 6GHz | ||
Withstanding Voltage | 1000V(RMS) | ||
Center contact resistance | ≤ 5 MΩ | ||
Outer contact resistance | ≤ 5 MΩ | ||
Insulation | ≥1,000MΩ | ||
VSWR | DC - 2GHz<1.2 | ||
Mechanical: | |||
Assembly | Locked | ||
Durability | >500cycles | ||
Temperature | -40 ~ +85°C | ||
Cable: | |||
RG174,RG316,RG58,RTK-031,RG179,1.5DS | |||
Applications : | |||
Cameras Sensors for detection, evaluation and reaction High Performance Computing Radio antenna GPS telematics or navigation Infotainment & television Mobile communication RF bluetooth / WLAN applications Radio frequency remote control for keyless entry Vehicle auxiliary heating | |||
Fakra Code System: | |||
Code | Color | RAL No | Application |
A | Black | 9005 | Radio without phantom supply |
B | White | 9001 | Radio with phantom supply |
C | Light Blue | 5005 | GPS:Telematics or Navigation |
D | Violet | 4004 | GSM Cellular phone |
E | Green | 6002 | TV1 |
F | Brown | 8011 | TV2 |
G | Gray | 7031 | Remote control keyless engry |
H | Pink | 4003 | GPS:Telematics or Navigation |
J | Beige | 1001 | Radio controlled packing heating |
K | Curry | 1027 | Radio with IF |
L | Yellow Green | 3002 | Not Defined |
M | Orange | 2003 | Not Defined |
O | Light Green | 6019 | Not Defined |
Z | Water Blue | 5021 | Neutral coding |
