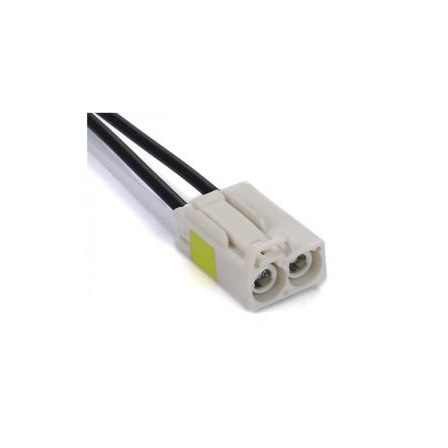

FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly and provides a mechanical key feature along with a visual color code to differentiate between applications. FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered.
Code: B
Gender: Double Female
Color: White
Connector Body Style: Straight
Apply to: Phantom Radio With supply
| Material: |
| Body | Brass/Zinc alloy,Ni-Plated |
| Socket | Beryllium-copper,Gold-Plated |
| Pin Contact | Brass |
| Insulator | PTFE |
| Crimp Ferrule | Brass,Ni-Plated |
| O-ring | Beryllium-Copper |
| Shell | PA66+30%GF |
| Electric Characteristic: |
| Interface | ISO 20860-1, SAE/USCAR-18 |
| Impedance | 50 Ω |
| Frequency Range | DC - 6GHz |
| Withstanding Voltage | 1000V(RMS) |
| Center contact resistance | ≤ 5 MΩ |
| Outer contact resistance | ≤ 5 MΩ |
| Insulation | ≥1,000MΩ |
| VSWR | DC - 2GHz<1.2 |
| Mechanical: |
| Assembly | Locked |
| Durability | ＞500cycles |
| Temperature | -40 ~ +85°C |
| Cable: |
| RG174,RG316,RG58,RTK-031,RG179,1.5DS |
Applications : |
Cameras
Sensors for detection, evaluation and reaction
High Performance Computing
Radio antenna
GPS telematics or navigation
Infotainment & television
Mobile communication
RF bluetooth / WLAN applications
Radio frequency remote control for keyless entry
Vehicle auxiliary heating |
|
|
|
|
|
|
|
|
|
Fakra Code System: |
| Code | Colors |
| A | Black |
| B | White |
| C | Blue |
| D | Bordeaux-Violet |
| E | Green |
| F | Brown |
| G | Grey |
| H | Violet |
| I | Beige |
| K | Curry |
| L | Carmine Red |
| M | Pastel Orange |
| N | Pastel Green |
| Z | Waterblue |
FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly and provides a mechanical key feature along with a visual color code to differentiate between applications. FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered.
