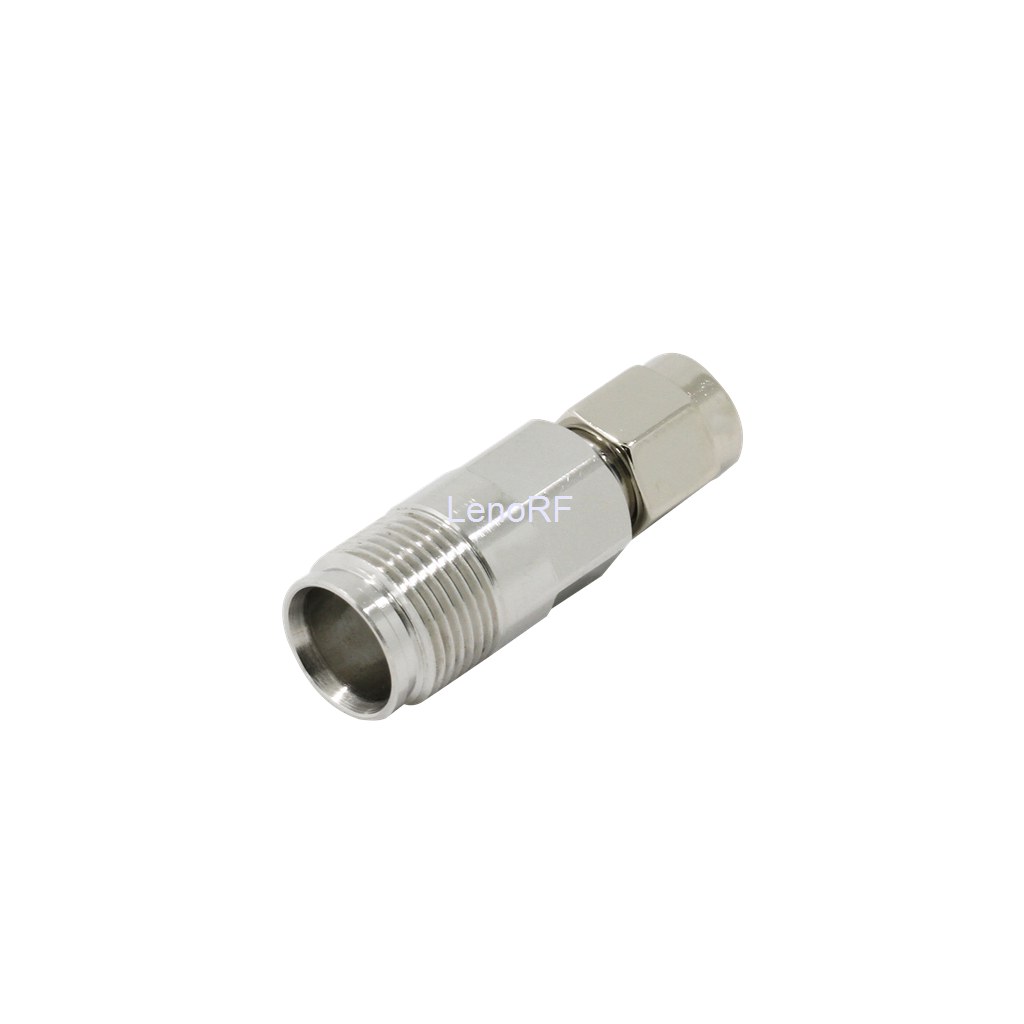

NEX10 JACK TO 3.5MM PLUG RF ADAPTOR

  • 835-1126

Quantity:



Specification of product:



Part No 835-1126
Connector Series NEX10
Connector Type Female
Contact Termination -
Shield Termination -
Impedance 50 Ohm
Mounting Type Freehanging
Cable Group -
Fastening Type Thread
Frequency - Max DC-18GHz
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Center Contact Finish Gold
Dielectric Material Polytetrafluorethylene (PTFE)
Voltage Rating 375V
Working Temperature -65°C ~ 165°C

Application of product

Aerospace,Defense,Telecom,Broadcast, Industrial,Medical, Instrumentation.

Environmental Compliance

All product is RoHS and REACH complaint.
