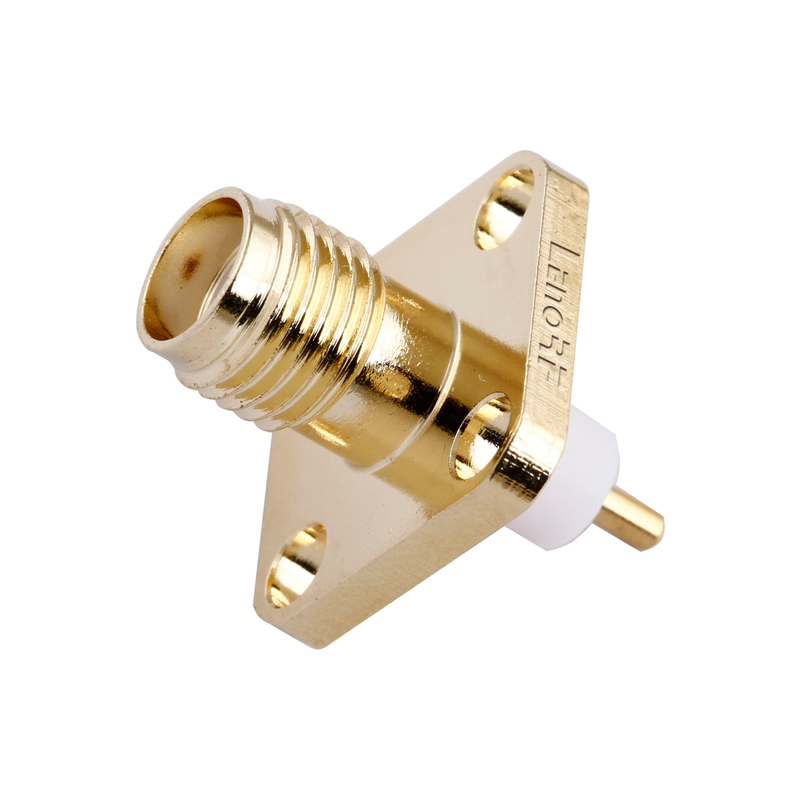

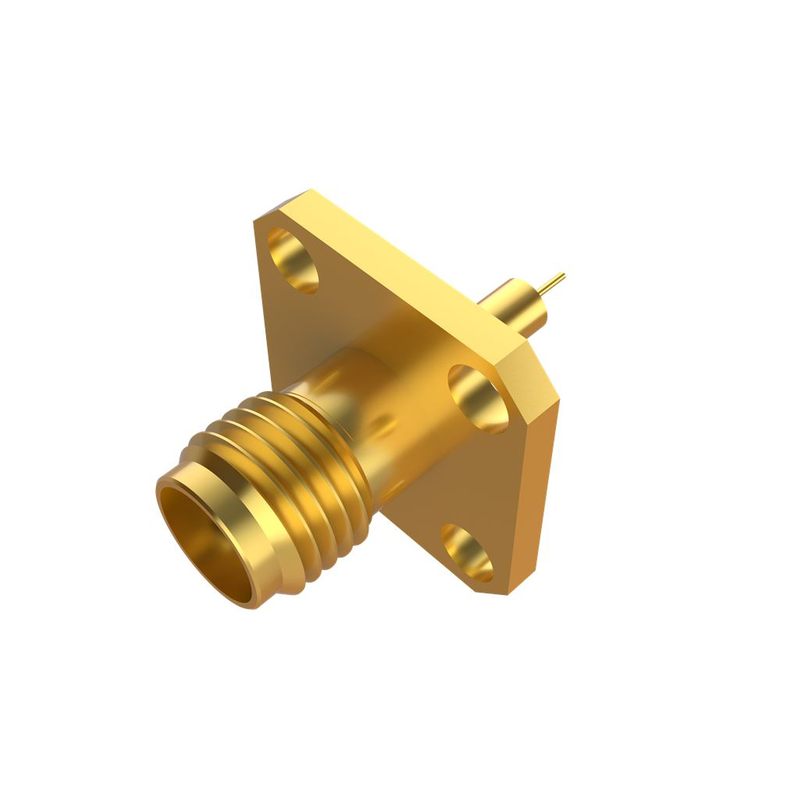

SMA Connectors Female Soldering 4 Hole Flange For Microstrip

SMA coaxial connectors from LenoRF are high-quality and function well. Great dependability, extended service life, high mechanical stability, and outstanding electrical properties are all features of these screw-on locking connectors with defined maximum torque. The butted outer contact allows for excellent frequency ranges of up to 18 GHz and low return loss of less than 30 dB. SMA connectors are used in a wide range of RF applications, including telecommunications and mobile communication, as well as test and measurement equipment and instruments.
  • 89-5061-041-03

  • Female

  • Straight

  • 4 Hole Flange

  • Soldering

  • N/A

  • 89-5061-041-03.pdf

  • 89-5061-041-03.stp

Availability:
Quantity:

Body   PlatingGold
Body MaterialBrass
Cable Type N/A
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)12.4
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Panel Mounting Feature4   Hole Flange
Size CategorySubminiature
Temperature Range-65   -165 °C
Termination StyleSolder
Thread DirectionStandard
Mating Cycles500   Min
Interface SpecificationMIL-STD-348

FAQ

1. Sample delivery time

Regular model need 15 days, some complex connectors need 25 days


2. Sample Fee

The most of RF connector is CNC parts,don't need to make mold.

Through, each part need be tuning the CNC, usually one sample need 200 USD cost.

The fee will return after 5K bulk order


3. The quarantee

Brass RF connector is one year, the stainless steel connector is three year.

Also, depend on the material of contact, Beryllium contact have better lifetime.


4. ROHS&REACH

Our product fully compliance with ROHS&REACH.


5.Does LENORF offer military class product

Yes. We honor to offer military product with super stable quality.
