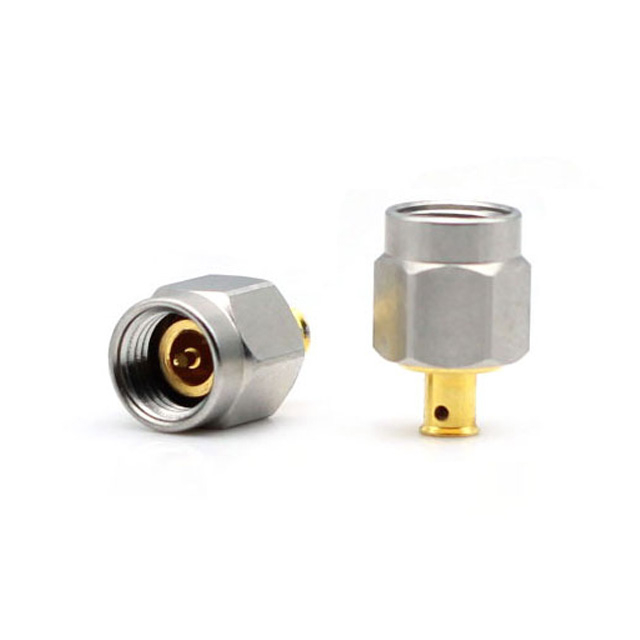

2.92 Male Straight RG405 RF Connectors

  • 801-7061-011-01
  • Male
  • Straight
  • Crimping
  • Crimping
Availability:
Quantity:

Description:

The 2.92mm connector was developed for use to 40 GHz.  Interface according to IEC 60169-35 The male pin is shorter than that of an SMA or 3.5mm to ensure that the outer contacts of the male and female connectors engage before the pin and female receptacle do. This ensures that the pin and socket will not see excessive wear and mating stress seen by misalignment in an SMA or 3.5mm connector.  The 2.92mm connector also has a thicker wall than a standard SMA. The 2.92mm series mates with SMA and 3.5mm connectors.

Data sheet;


Applications:

High Speed Digital

Instrumentation

Military

Aerospace

Satellite Communication Equipment (SATCOM)

Cable Assemblies

Test and measurement


Features and Benefits

Frequency range DC to 40 GHz (usable to 46 GHz)

Low VSWR

Low RF Leakage

Superior reliability

Compatible with SMA ,3.5mm and K connector series


Materials&Electroplating

Conduct

Brass/ Gold Plating

Insulator

PTFE

Body

Stainless steel

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-40GHz

VSWR

≤1.05

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

Barometric Pressure (Altitude)

MIL-STD-202, Method 105, Condition C, 70k Ft.
