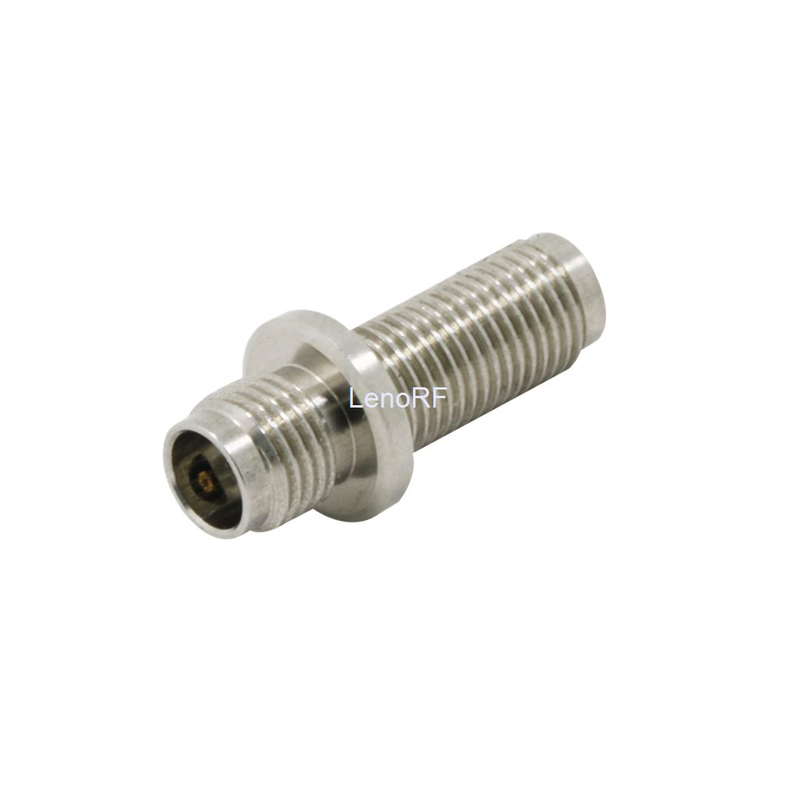

2.92mm Jack To Jack Bulkhead Adapter

The 2.92mm connector was created with a frequency range of 40 GHz in mind. IEC 60169-35 standard interface To guarantee that the outside contacts of the male and female connections meet before the pin and female receptacle do, the male pin is shorter than that of a SMA or 3.5mm. This prevents excessive wear and mating tension on the pin and socket, which can occur when a SMA or 3.5mm connector is misaligned. A normal SMA connector has a thinner wall than the 2.92mm connector. SMA and 3.5mm connections work with the 2.92mm series.


  • 832-1202

  • Female to Female

  • Straight

  • Crimping

  • Crimping

Availability:
Quantity:
Inquire Add to Basket

Materials&Electroplating

Conduct

Brass/ Gold Plating

Insulator

PTFE

Body

Stainless steel

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-40GHz

VSWR

≤1.05

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

Barometric Pressure (Altitude)

MIL-STD-202, Method 105, Condition C, 70k Ft.
