Future development proves that millimeter wave connectors will be in an increasingly important position. Since the development of radio frequency connectors should be miniaturized, high-density, high-speed transmission, and high-frequency.


What are the features and benefits of the millimeter wave connectors products?

What is the importance of the dielectric support of millimeter wave connectors?

What are the uses of millimeter wave connectors?


What are the features and benefits of the millimeter wave connectors products?

High speed, precision coaxial millimeter wave connectors and cable assemblies (DC- 67 GHz)

PCB Connectors, Cable Connectors, Adapters, and Cable Assemblies available

Mlillimeter wave connectors’series include 2.92mm, 2.4mm, and 1.85mm.

COTS versions are available through distribution

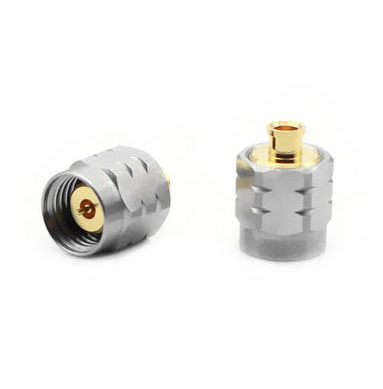

millimeter wave connectors

What is the importance of the dielectric support of millimeter wave connectors?

Said that dielectric support is an essential part, in addition to being an insulating medium, but also can fix the inner conductor and maintain good concentricity between the inner and outer conductors. Introduce the structural design of quality support is one of the entire millimeter wave connector design the most important link, especially the millimeter wave connector works at a higher frequency when the electrical performance requirements are high, the structural design of the dielectric support affects the entire connection. The electrical performance of the device has a very large impact. Therefore, the millimeter wave connector when designing, the structure of the dielectric support should be continuously improved, and the compensation should be modified to improve the electrical performance of the Meepo coaxial connector.


What are the uses of millimeter wave connectors?

The millimeter wave connector is a component that our electronic engineering and technical personnel often contact. Its function is very simple: to build a bridge of communication between blocked or isolated circuits in the circuit, so that the current can flow, and the circuit can realize the predetermined function. Millimeter wave connectors are an indispensable part of electronic equipment. Observing along the path of current flow, you will always find one or more connectors. Connector forms and structures are ever-changing. There are various types of connectors with different application objects, frequencies, power, and application environments. For example, the connectors for lighting on the court and the connectors for hard drives, and the connectors for lighting rockets are quite different.

But no matter what kind of connector, it is necessary to ensure that the current flows smoothly, continuously, and reliably. In general, terms, what the millimeter wave connector is connected to is not limited to current. In today's rapid development of optoelectronics technology, the carrier of the signal transmission is light in the optical fiber system. Glass and plastic replace the wires in the ordinary circuit, but the optical signal Connectors are also used in the pathways, and their functions are the same as circuit connectors.


The millimeter wave connector is a general term for the connector that works in the millimeter wave band. The working frequency is generally greater than 30GHz and the size is small. Although the volume is small, in terms of application range, it is very extensive. So the quality of the millimeter wave connector is of great importance. A good product needs the best engineering staff. LenoRF is always ready to help you meet your technical requirements. They Create a 24-hour engineering and development environment that runs concurrently with your manufacturing operations.


Our company, Zhejiang LenoRF Industry co. LTD, occupies an area of 30 hectares and is equipped with world class equipment to make millimeter wave connectors and phase stable cables. We specialize in coaxial connectors, cable assembly, and passive devices. Our current products are the latest millimeter wave connector and phase stable cable on the market.
