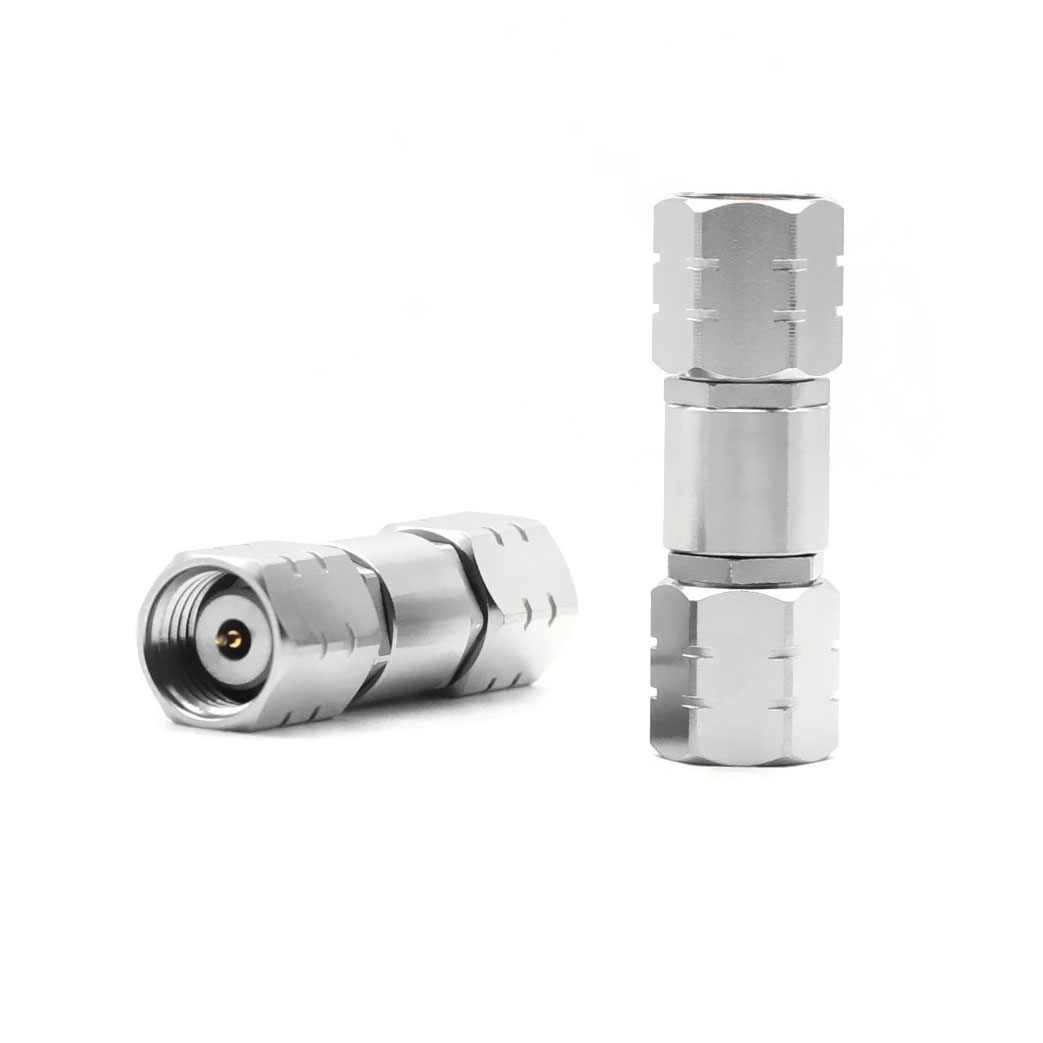

1.85mm Connector Male To Male Straight Adapter

The 1.85mm connector was designed to operate modelessly at 65 GHz. To limit bead interaction in a mated pair, the interface employs a mainly air-dielectric with a support bead placed back in the connector's body. The body, like the 2.92mm and 2.4mm connectors, is constructed such that the outside conductors engage before the central conductors do. Only the 2.4mm interface is compatible with the 1.85mm interface, which has an M7 thread. Adapters are available to link 1.85mm connections to SMA and 2.92mm connectors. The 1.85mm connector complies with RoHS and REACH regulations.
  • 185-3002

  • Male to Male

  • Straight

  • Crimping

  • Crimping

  • N/A

Availability:
Quantity:
Series 11.85mm
Series 21.85mm
Body PlatingGold
Body MaterialStainless Steel
Contact PlatingGold
Contact MaterialBeryllium   Copper
Contact TerminationSolder
Coupling MechanismThreaded
HS Code8536909000
Frequency (Max GHz)65
GenderJack
Impedance (Ohms)50
Insulator MaterialPTFE
OrientationStraight
Temperature Range-65   -165 °C
Mating Cycles500   Min
