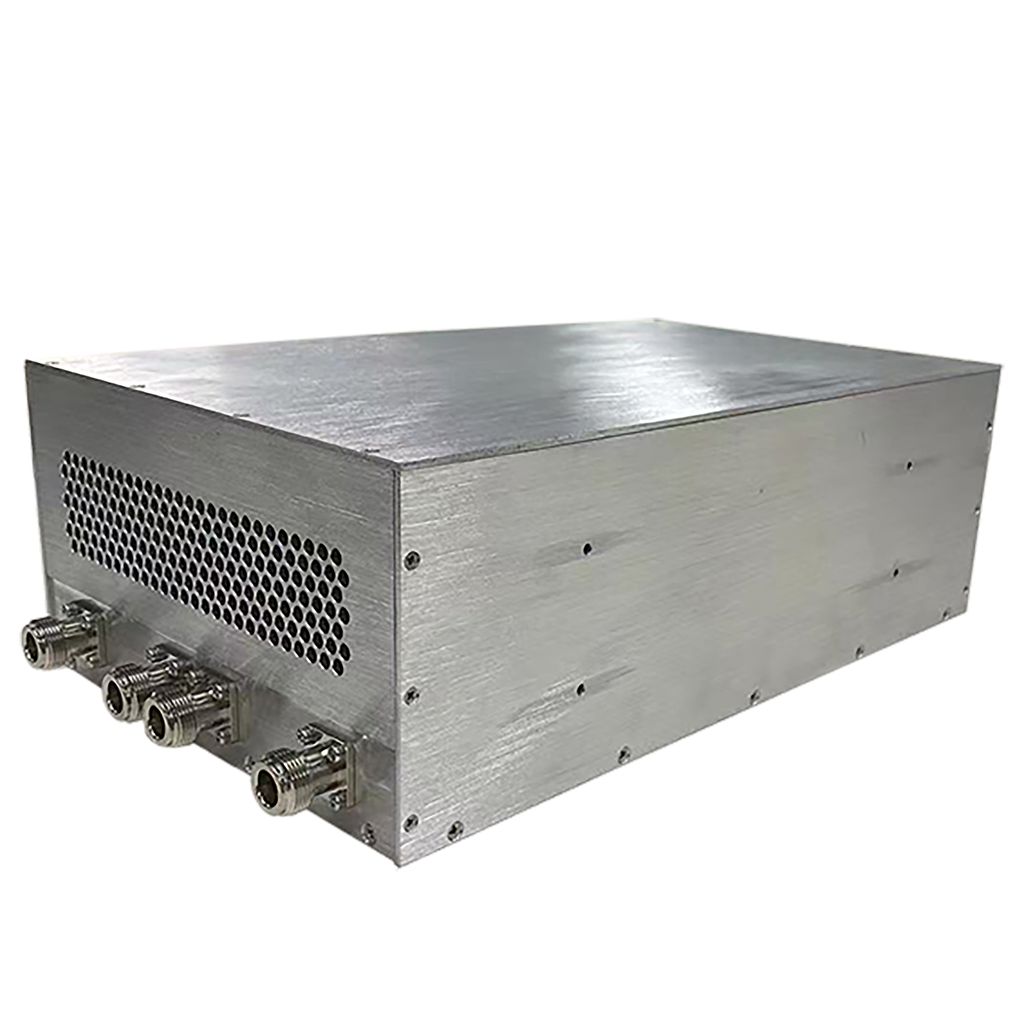

Multiplexed Power Divider
Features
Low insertion loss
High isolation
High power handling
High amplitude phase consistency
Cost-effective & Customizable
Part No.
Frequency
(MHz)
Isolation
(dB)
Channels
Power
(W)
RFin/RFout
Connector
JYHPD4K100M10C-X
0.004-100
15
2/4/8
30
SMA/SMA
JYHPC4K100M1000C-X
0.004-100
15
2/4/8
1000
N/L29
JYHPD9K100M30C-X
0.009-100
15
2/4/8
30
SMA/SMA
JYHPC9K100M1000C-X
0.009-100
15
2/4/8
1000
N/N
JYHPC9K100M3500C-X
0.009-100
15
2/4/8
3500
N/L29
JYHPD9K250M30C-X
0.009-250
15
2/4/8
30
SMA/SMA
JYHPC9K400M1000C-X
0.009-400
--
2
1000
N/L29
JYHPD80M1G10C-X
80-1000
14
2/4/8
10
SMA/SMA
JYHPC80M1G3000C-X
80-1000
--
2-10
3000
N/L29
JYHPC80M1G1000C-4
80-1000
15
4
1000
N/N
JYHPD500M6G10C-X
500-6000
16
2/4/8
10
SMA/SMA
JYHPC500M6G500C-X
500-6000
--
2-12
500
N/L29
JYHPD2G8G30C-X
2000-8000
15
2/4/8
30
SMA/SMA
JYHPC2G8G200C-X
2000-8000
--
2-12
200
SMA/N
JYHPD2G18G10C-X
2000-18000
12
2/4/8
10
SMA/SMA
JYHPC2G18G200C-X
2000-18000
--
2-12
200
SMA/N
JYHPD6G18G10C-X
6000-18000
15
2/4/8
10
SMA/SMA
JYHPC6G18G200C-X
6000-18000
--
2-12
200
SMA/N
JYHPC6G18G1000C-X
6000-18000
13
2/4/8
1000
WRD650/WRD650
JYHPD18G40G20C-X
18000-40000
15
2/4/8
20
2.92/2.92
JYHPC18G27G500C-X
18000-26500
13
2/4/8
500
BJ320/BJ320
JYHPC26G40G800C-X
26500-40000
13
2/4/8
800
BJ220/BJ220

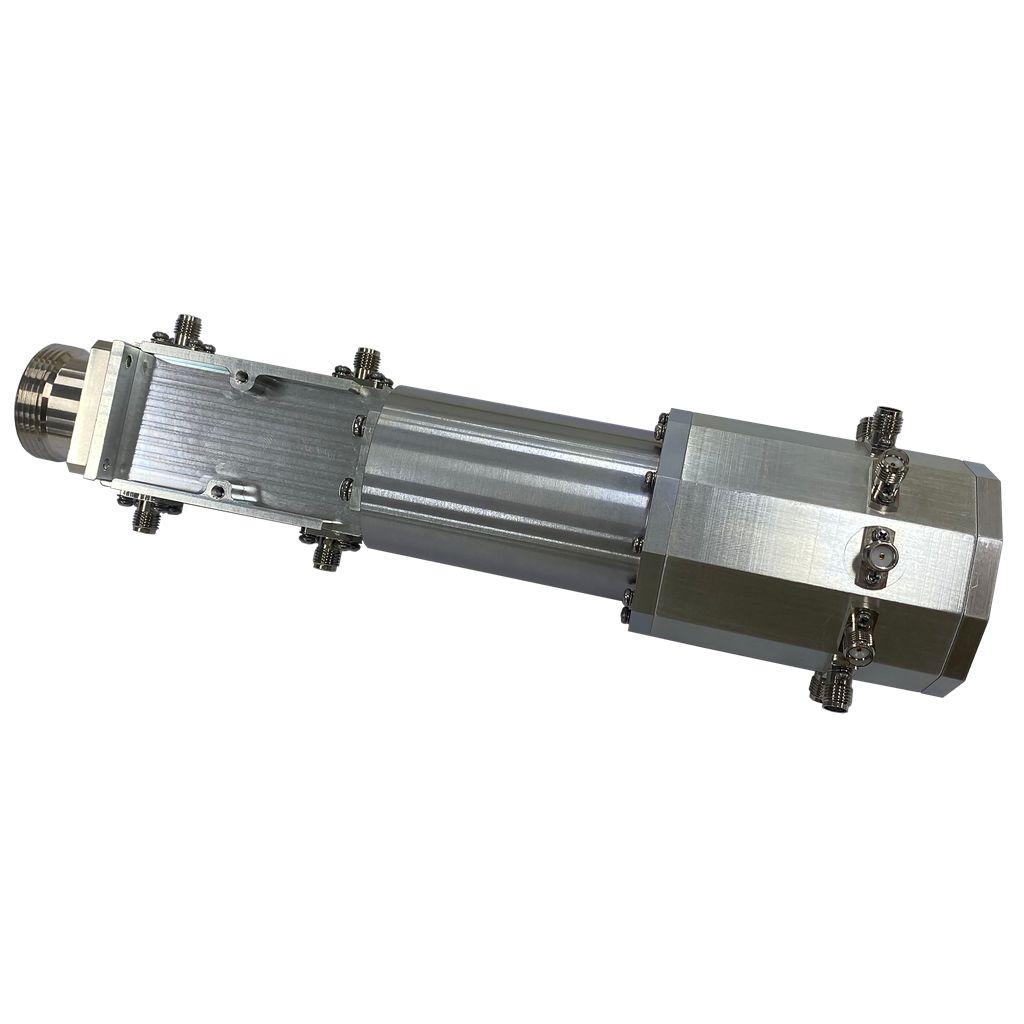

Multiplexed Combiner Coupler
Features
High Coupling Flatness
Low insertion loss
High power handling
High amplitude phase consistency
Integrated high directional double directional coupler
Cost-effective & Customizable
Part No.
Frequency
(MHz)
P_sat
(W)
IL.
(dB)
RFin/RFout/Coupler
Connector
Channel
JYHHD9K100M1000C
0.009-100
1000
≤0.4
N/N/SMA
2/4
JYHHD9K100M3500C
0.009-100
3500
≤0.6
N/L29/SMA
4/8
JYHHD10M100M2000C
10-100
2000
≤0.5
N/L29/SMA
4/8
JYHHD30M520M2000C
30-520
20000
≤0.5
N/L29/SMA
4/8
JYHHD400M1000M2000C
400-1000
20000
≤0.5
N/L29/SMA
4/8
JYHHD80M1G500C
80-1000
500
≤0.8
N/N/SMA
2/4
JYHHD80M1G1000C
80-1000
1000
≤0.8
N/L29/SMA
4
JYHHD80M1G3000C
80-1000
3000
≤0.8
N/L29/SMA
10
JYHHD400M6G200C
400-6000
200
≤0.8
SMA/N/SMA
2-12
JYHHD1G3200M2000C
1000-3200
2000
≤0.6
N/L29/SMA
2-8
JYHHD1G6G500C
1000-6000
500
≤0.7
N/L29/SMA
2-8
JYHHD2G18G100C
2000-18000
100
≤1
SMA/N/SMA
2-12
JYHHD6G18G200C
6000-18000
200
≤0.8
SMA/N/SMA
2-12
JYHHD6G18G1000C
6000-18000
1000
≤0.8
WRD650/WRD650/SMA
2/4/8
JYHHD18G40G200C
18000-40000
200
≤0.6
WRD180/WRD180/2.92
2/4/8
JYHHD18G27G800C
18000-26500
800
≤0.6
BJ320/BJ320/2.92
2/4/8
JYHHD27G40G800C
26500-40000
800
≤0.6
BJ220/BJ220/2.92
2/4/8

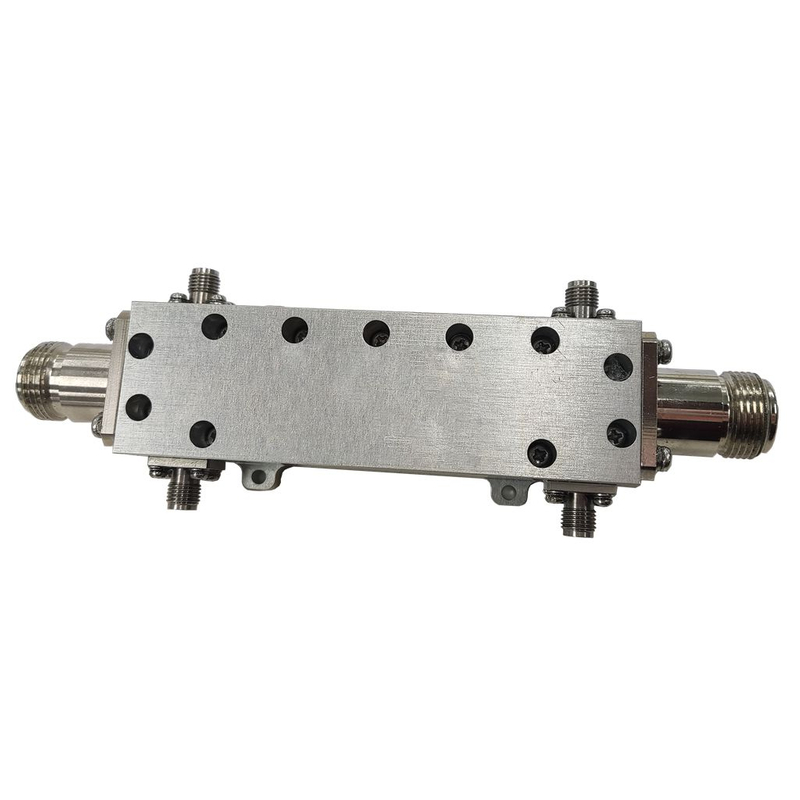

Dual Directional Coupler
Features
Low insertion loss
High Coupling Flatness
High power handling
Low residence and high directivity
Cost-effective & Customizable
Part No.
Frequency
(MHz)
Nominal Coupling
(dB)
Directivity(dB)
Power
(W)
RF/Coupler
Connector
JYHDC9K100M300C
0.009-100
50
18
300
N/SMA
JYHDC9K100M1000C
0.009-100
50
18
1000
N/SMA
JYHDC9K100M3500C
0.009-100
50
18
3500
L29/N
JYHDC9K250M1000C
0.009-250
50
17
1000
L29/SMA
JYHDC9K400M300C
0.009-400
50
16
300
N/SMA
JYHDC9K1G200C
0.009-1000
40
10
200
N/SMA
JYHDC1M500M1000C
1-500
50
18
1000
N/SMA
JYHDC30M520M3000C
30-520
50
18
3000
L29/N
JYHDC80M1G2000C
80-1000
50
17
2000
L29/SMA
JYHDC400M1G3000C
400-1000
50
18
3000
L29/N
JYHDC500M3G500C
500-3000
40
18
500
N/SMA
JYHDC1G6G300C
1000-6000
40
12
300
N/SMA
JYHDC6G18G200C
6000-18000
40
10
200
N/SMA
JYHDC6G18G1000C
6000-18000
40
12
1000
WRD650/SMA
JYHDC18G40G800C
18000-40000
40
12
800
WRD180/SMA
JYHDC18G27G800C
18000-26500
40
15
800
BJ320/2.92
JYHDC26G40G800C
26500-40000
40
15
800
BJ220/2.92

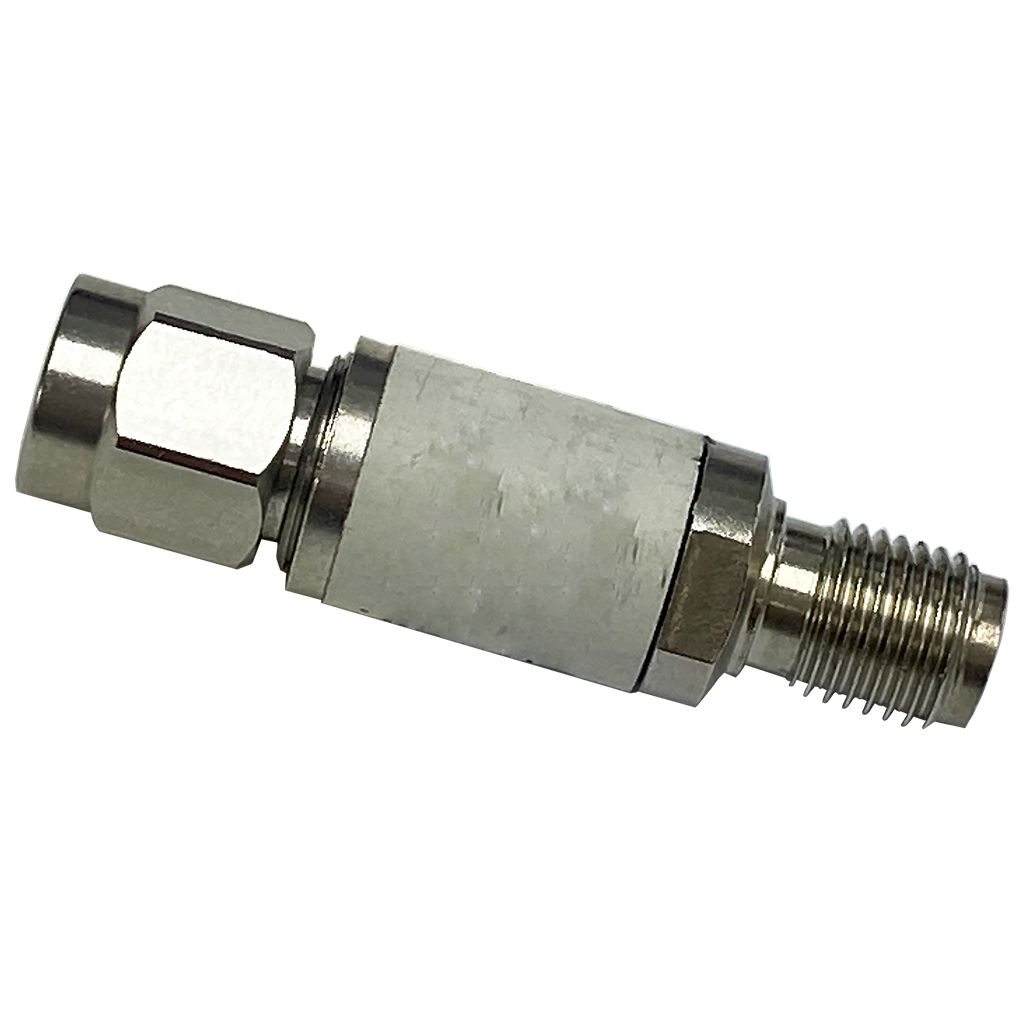

SMA Coaxial Detector Features
Wideband work
High sensitivity
High reaction rate
Designed for telecom,instrumentation, all Lab,radar applications
Part No.
Frequency
(GHz)
Flatness
(dB)
VSWR
(Max)
Sensitivity
(mV@1μW)
Input Power
(dBm)
Connector
Output Polarity
JYHDR-SMA-6G
0.01-8
±0.3
1.5
0.5
≤20
SMA(m)
positive/negative
JYHDR-SMA-18G
0.01-18
±0.6
1.5
0.5
SMA(m)
positive/negative
JYHDR-SMA-26.5G
0.01-26.5
±1.5
2.0
0.5
2.92mm(m)
positive/negative
JYHDR-SMA-40G
0.01-40
±3.5
2.2
0.35
2.92mm(m)
positive/negative
