U.FL (also known as UMCC or I-PEX) is an extremely miniaturized coaxial connector mainly used for high-frequency signal transmission in wireless communication devices. Developed by Japan's Hirose Electric Co., Ltd., it is widely applied in various compact electronic devices such as smartphones, tablets, wireless modules, Bluetooth devices, and Wi-Fi modules.
I. Basic Structure
The basic structure of a U.FL connector includes the following parts:
- Center Conductor: Used for signal transmission.
- Insulator: Located between the center conductor and the outer conductor, providing electrical isolation.
- Outer Conductor (Shielding Layer): Usually made of metal material, used to shield external electromagnetic interference.
- Plastic Housing: Protects the internal structure and provides mechanical support.
- Latching Mechanism: Ensures a secure connection of the connector.

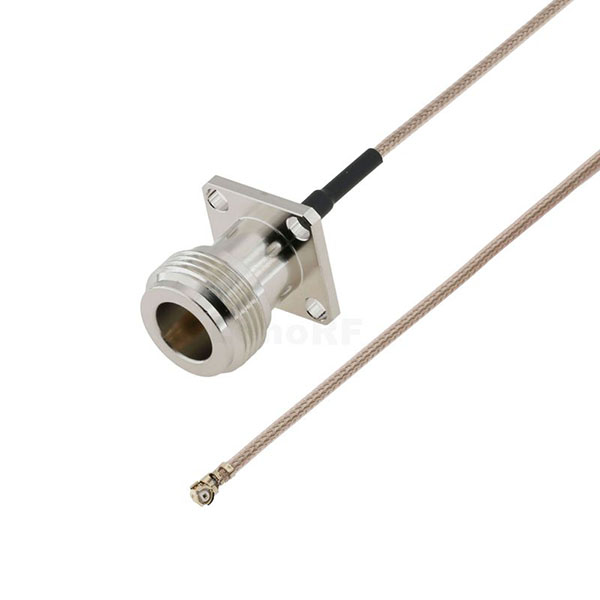

• 1.13mm Mini Coaxial Pigtail, U.FL / SMA Bulkhead Female
U.FL connectors transmit high-frequency signals through the center conductor, while the outer conductor plays a shielding role to reduce electromagnetic interference. The latching mechanism of the connector ensures the stability and reliability of the connection. The design of U.FL connectors enables them to have good impedance matching and low insertion loss at high frequencies.
III. Main Features
- Small Size: U.FL connectors are extremely compact, suitable for space-constrained applications.
- High-Frequency Performance: Supports a frequency range of up to 6 GHz, suitable for various wireless communication standards such as Wi-Fi, Bluetooth, and Zigbee.
- Low Insertion Loss: U.FL connectors have low insertion loss during high-frequency signal transmission, ensuring signal quality.
- High Reliability: Equipped with a latching mechanism to ensure the stability of the connector in vibration and shock environments.
- Easy Installation: Adopts SMT (Surface Mount Technology), which can be easily soldered on PCB boards.
- Insertion Loss: Usually less than 0.3 dB (at 6 GHz).
- Return Loss: Usually greater than 10 dB (at 6 GHz).
U.FL connectors are high-performance, miniaturized coaxial connectors especially suitable for high-frequency signal transmission and space-constrained applications. Their advantages include small size, excellent high-frequency performance, low insertion loss, and high reliability. During use, attention should be paid to correct installation and maintenance to ensure optimal performance and service life.
